01-19KE02 (C-195) - Toro Garden Tractor (1984) PTO CLUTCH AND CONTROL Parts Diagram

Garden Tractor

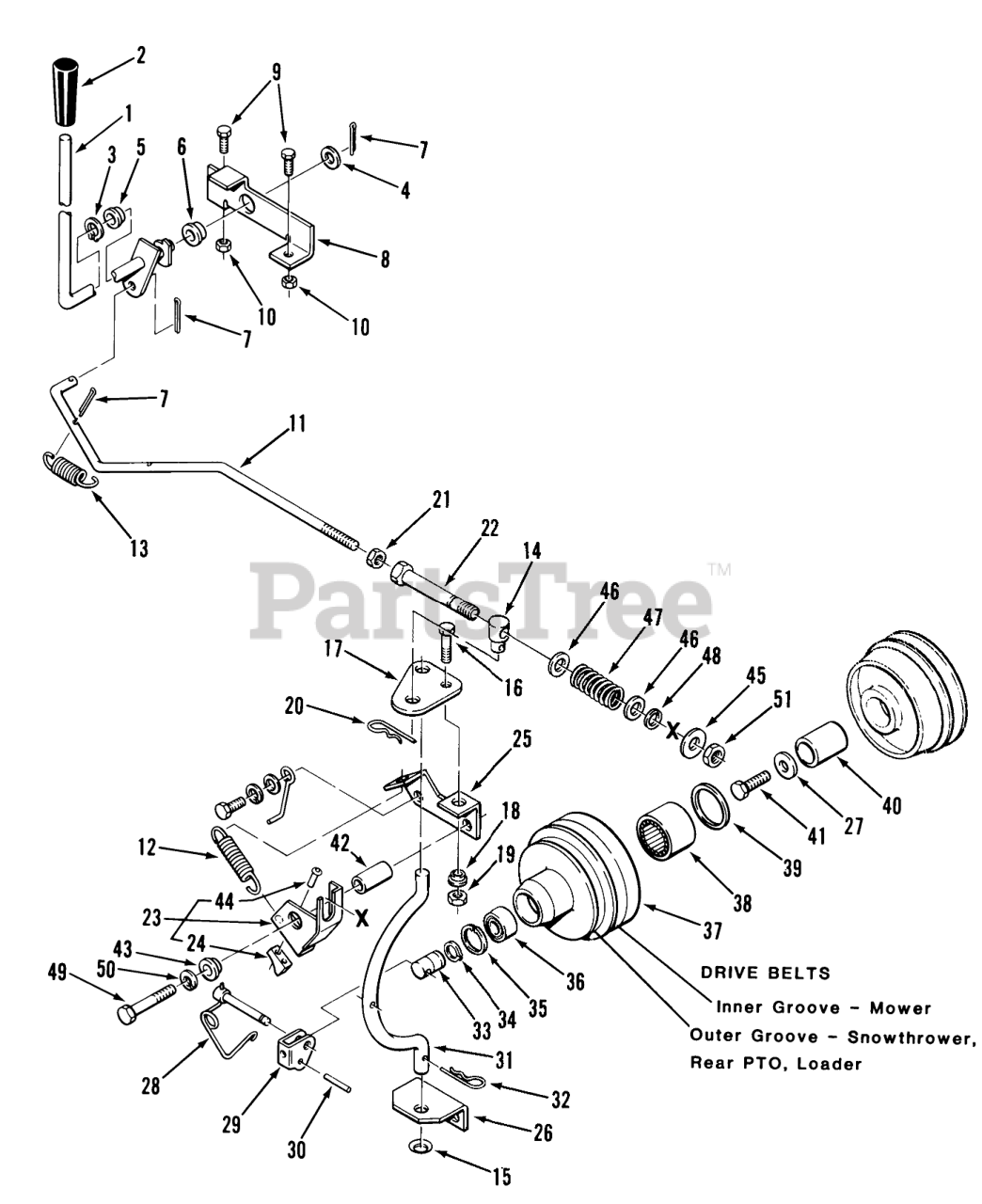

PTO CLUTCH AND CONTROL Parts Diagram

  • Title
1

Toro 109042

PTO CLUTCH LVR ASM

$

$

Not available

2

Toro 9038

GRIP

$5.99

$

In Stock, only 1 left!

0

3

Toro 106649

Grip Ring
(Superseded to 32151-11)

$10.99

$

In Stock, Qty 5

0

4

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

5

Toro 5666

BUSHING-NYLINER

$3.49

$

In Stock, only 4 left!

0

6

Toro 5983

NYLINER BUSHING

$4.99

$

In Stock, Qty 16

0

7

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

8

Toro 106359

SUPPORT-PTO CLUTCH

$

$

Not available

9

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

10

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

11

Toro 109764

ROD PTO CLUTCH

$

$

Not available

12

Toro 109747

SPRING EXTENSION

$

$

Not available

13

Toro 103125

SPRING

$9.49

$

In Stock, only 3 left!

0

14

Toro 109722

Trunnion

$

$

Not available

15

Toro 106695

RING-REINFORCED CIRC

$2.49

$

In Stock, only 4 left!

0

16

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

17

Toro 109741

PTO Plate

$

$

Not available

18

Toro 104859

SPACER-LIFT LINK

$50.99

$

Usually ships in 3-6 days

0

19

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

20

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

21

Toro 915236

Nut
(Superseded to 9152366)

$3.49

$

In Stock, only 1 left!

0

22

Toro 109721

TUBE-CLUTCH SPACER

$

$

Not available

23

Toro 109704

PTO Brake Assy

$

$

Not available

24

Toro 109705

Brake Pad

$

$

Not available

25

Toro 104729

BRACKET

$

$

Not available

26

Toro 102870

Axle
(Superseded to 102870-01)

$29.99

$

Usually ships in 3-6 days

0

27

Toro 109716

WASHER CONE CLUTCH

$

$

Not available

28

Toro 105850

Pin
(Superseded to 111314)

$24.99

$

Usually ships in 3-6 days

0

29

Toro 109717

Clevis

$

$

Not available

30

Toro 933190

PIN-SPIROL

$

$

Not available

31

Toro 109755

ROD HOUSING

$

$

Not available

32

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

33

Toro 102872

SHAFT-PTO

$27.99

$

In Stock, only 1 left!

0

34

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

35

Toro 936032

Ring-Snap
(Superseded to 32120-62)

$4.99

$

In Stock, Qty 8

0

36

Toro 109842

BEARING-BALL

$26.99

$

Usually ships in 3-6 days

0

37

Toro 109759

HOUSING CLUTCH

$574.99

$

Usually ships in 3-6 days

0

38

Toro 106769

BRG-NEEDLE OPEN END

$52.99

$

In Stock, only 1 left!

0

39

Toro 6663

SEAL-OIL

$11.99

$

In Stock, only 1 left!

0

40

Toro 109715

RACE BEARING

$

$

Not available

41

$

$

Not available

42

Toro 109723

Spacer

$

$

Not available

43

Toro 109724

BUSHING PTO PIVOT

$

$

Not available

44

Toro 6657

RIVET-BRASS

$0.99

$

In Stock, Qty 5

0

45

Toro 920013

WASHER
(Superseded to 3256-27)

$2.99

$

In Stock, Qty 5

0

46

Toro 920215

Washer
(Superseded to 9202154)

$1.99

$

In Stock, Qty 5

0

47

Toro 109746

SPRING COMPRESSION

$

$

Not available

48

Toro 936121

SNAP RING- 5/8 EXT

$0.99

$

Usually ships in 3-6 days

0

49

Toro 908053

Bolt 7/16-14 x 3

$

$

Not available

50

Toro 920084

LOCKWASHER

$0.99

$

Usually ships in 3-6 days

0

51

Toro 915240

Jam Nut 5/8-11

$

$

Not available
