01-19KE02 (C-195) - Toro Garden Tractor (1984) CLUTCH, BRAKE AND MOTION CONTROL LINKAGE Parts Diagram

Garden Tractor

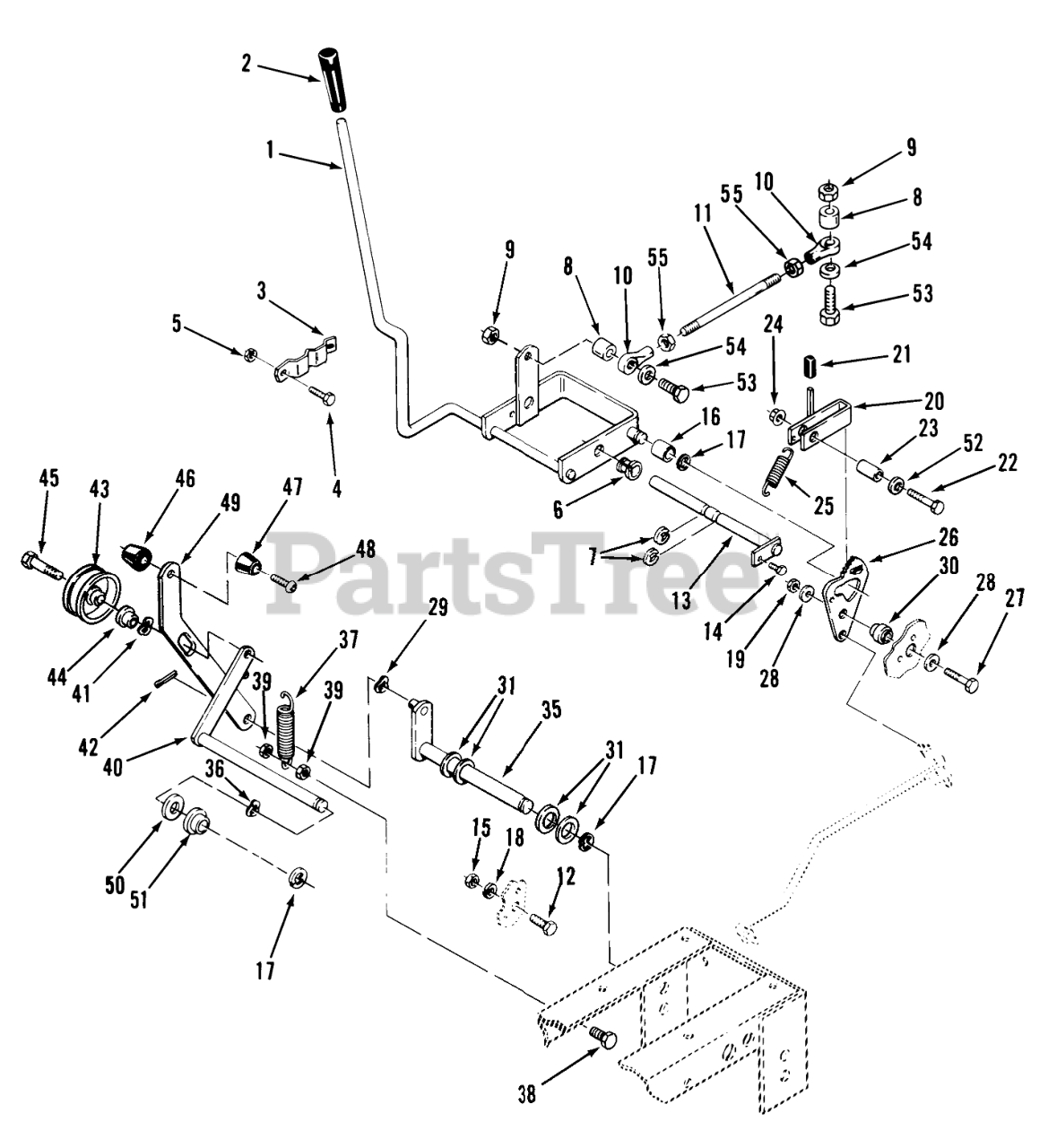

CLUTCH, BRAKE AND MOTION CONTROL LINKAGE Parts Diagram

  • Title

1

Toro 108332

Motion Control Lever
(Superseded to 110787-03)

$

$

Not available

2

Toro 6129

KNOB

$12.99

$

Usually ships in 3-6 days

0

3

Toro 106319

Detent-Motion Control Lever

$

$

Not available

4

Toro 908015

H H C S
(Superseded to 322-1)

$0.99

$

In Stock, Qty 9

0

5

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

6

Toro 5983

NYLINER BUSHING

$6.99

$

In Stock, Qty 16

0

7

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

8

Toro 100304

Spacer

$6.99

$

Usually ships in 3-6 days

0

9

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

10

Toro 108905

Rod End

$

$

Not available

11

Toro 109739

Rod Control

$

$

Not available

12

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

13

Toro 108496

ASSY-ROD CAM PIVOT

$

$

Not available

14

Toro 926694

SCREW

$

$

Not available

15

Toro 915234

Nut
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0

16

Toro 100656

BEARING-CAM RETURN

$6.49

$

In Stock, Qty 5

0

17

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

18

Toro 920122

LOCKWASHER

$

$

Not available

19

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

20

Toro 106325

PAWL HDL ASSY B

$

$

Not available

21

Toro 100489

VALVE LEVER GRIP

$9.99

$

Usually ships in 3-6 days

0

22

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

23

Toro 102025

SPACER

$

$

Not available

24

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

25

Toro 1230

Spring

$

$

Not available

26

Toro 108716

Cam Plate
(Superseded to 108716-03)

$

$

Not available

27

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

28

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

29

Toro 108472

WASHER-WAVE

$

$

Not available

30

Toro 108717

Spacer

$

$

Not available

31

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

35

Toro 106369

ASSY-BRAKE LEVER

$

$

Not available

36

Toro 108473

WASHER-WAVE

$8.49

$

In Stock, only 2 left!

0

37

Toro 107938

SPRING-EXTENSION

$13.99

$

In Stock, only 1 left!

0

38

Toro 908005

Bolt
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

39

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

40

Toro 106368

ASSY-ARM/ROD WA

$

$

Not available

41

Toro 110066

WAVE WASHER

$

$

Not available

42

Toro 932001

Cotter Pin
(Superseded to 327-22)

$13.99

$

Usually ships in 3-6 days

0

43

Toro 7434

Idler Pulley
(Superseded to 112426)

$26.99

$

In Stock, only 1 left!

0

44

Toro 106450

SPACER-BRAKE LINK

$

$

Not available

45

Toro 106193

BOLT-SPECIAL HEX

$10.99

$

In Stock, Qty 8

0

46

Toro 8722

KNOB

$21.99

$

In Stock, only 3 left!

0

47

Toro 8693

KNOB

$6.99

$

In Stock, Qty 9

0

48

Toro 911747

BOLT-4

$5.49

$

In Stock, Qty 10

0

49

Toro 106360

Handle
(Superseded to 110780-03)

$43.99

$

In Stock, Qty 6

0

50

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

51

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

53

Toro 908007

Bolt 1/4-20 X 1 1/2
(Superseded to 321-9)

$4.99

$

Usually ships in 3-6 days

0

54

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

55

Toro 915083

Jam Nut 1/4-28
(Superseded to 3220-1)

$1.49

$

In Stock, only 2 left!

0
