01-19KE01 (C-195) - Toro Garden Tractor (1982) SEAT Parts Diagram

Garden Tractor

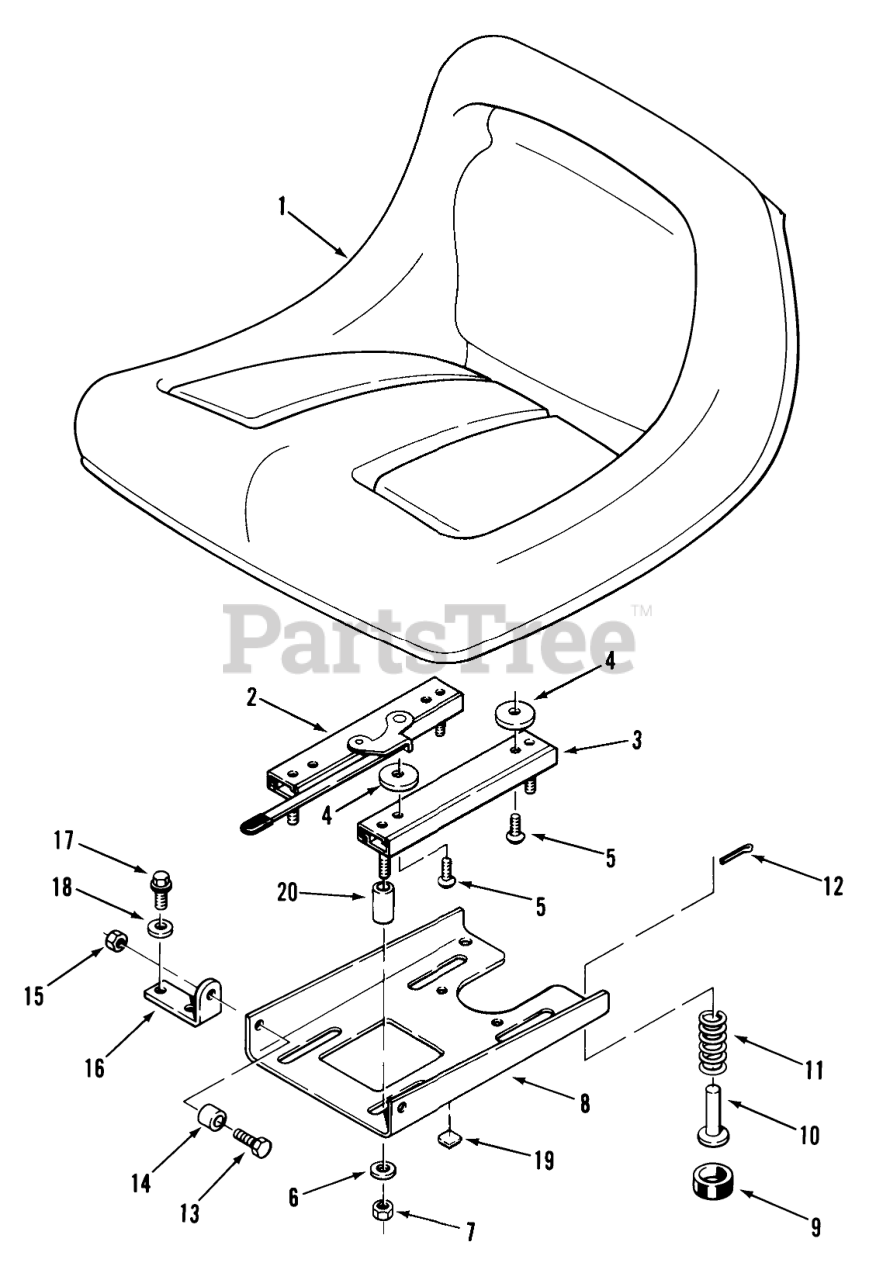

SEAT Parts Diagram

  • Title
1

Toro 109986

Seat
(Superseded to 112292)

$

$

Not available

2

Toro 109987

ADJUSTER-SEAT RH

$

$

Not available

3

Toro 109988

ADJUSTER-SEAT LH

$

$

Not available

4

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0

5

Toro 109990

Screw 5/16-18 x 3/4 Black
(Superseded to 32144-14)

$4.99

$

In Stock, only 3 left!

0

6

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

7

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

8

Toro 108681

Pivot Plate
(Superseded to 111714)

$

$

Not available

9

$

$

Not available

10

$7.99

$

Usually ships in 3-6 days

0

11

Toro 104841

SPRING

$2.49

$

In Stock, only 2 left!

0

12

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

13

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

14

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

15

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

16

Toro 105524

BRACKET-PIVOT

$

$

Not available

17

Toro 926699

SEAT BOLT FOR C195

$

$

Not available

18

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

19

Toro 518211

BUMPER

$4.49

$

In Stock, Qty 6

0

20

Toro 8077

Spacer

$

$

Not available
