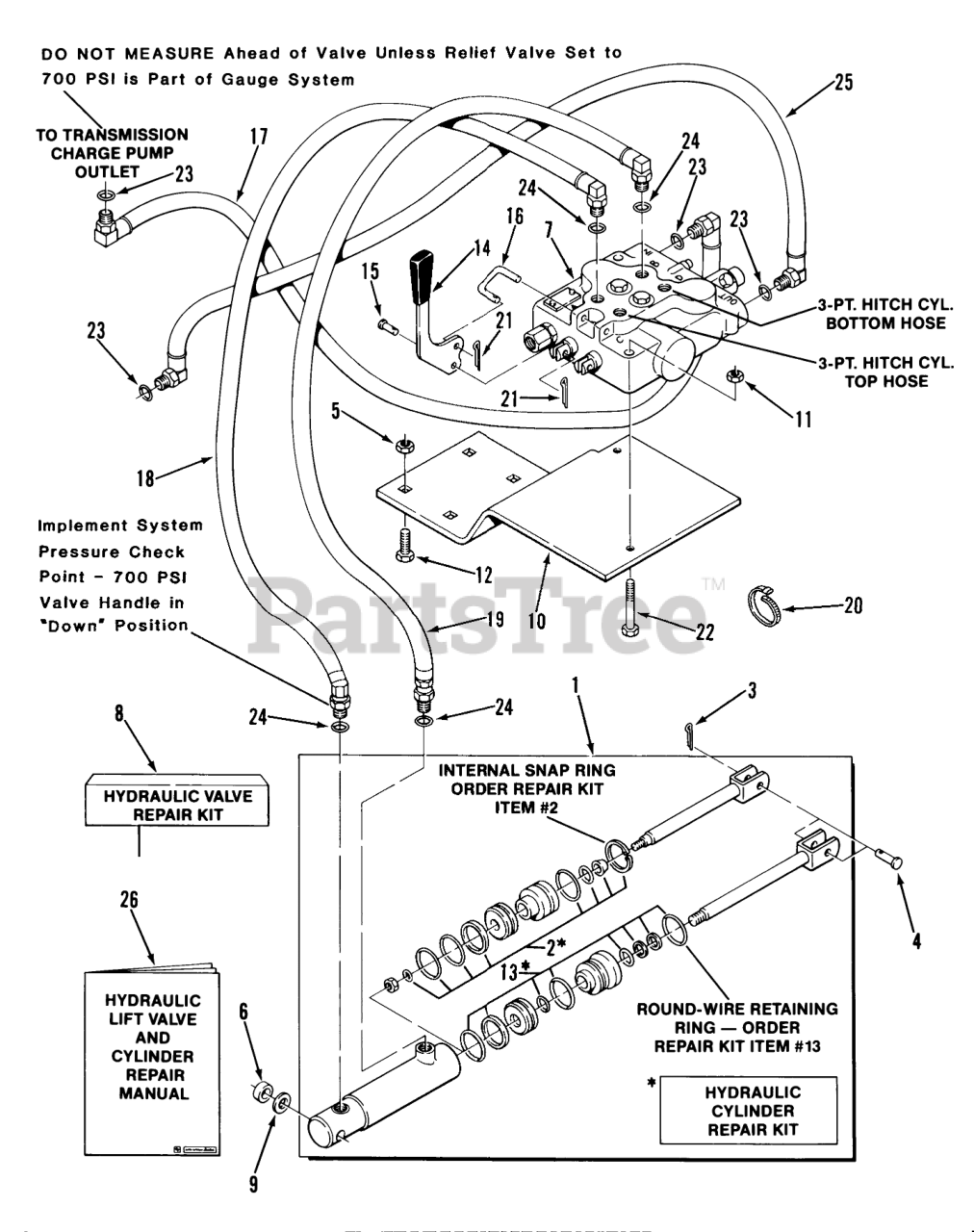

01-19KE01 (C-195) - Toro Garden Tractor (1982) HYDRAULIC SYSTEM Parts Diagram

Garden Tractor

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Toro 108872

CYLINDER

$

$

Not available

2

Toro 101699

S/A O-RING&GASKET AS

$159.99

$

Usually ships in 3-6 days

0

3

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 932997

CLEVIS PIN

$

$

Not available

5

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

6

Toro 4064

Spacer
(Superseded to 703269)

$122.99

$

Usually ships in 3-6 days

0

7

Toro 110492

Hydraulic Valve

Note: Use Out-of-Warranty Only. Replace Complete Valve Assembly During Warranty Period.

$

$

Not available

8

Toro 109097

S.A. Valve Repair Kit

Note: Use Out-of-Warranty Only. Replace Complete Valve Assembly During Warranty Period.

$

$

Not available

9

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

10

Toro 110483

Mounting Bracket

$

$

Not available

11

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

12

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

13

Toro 109088

S/A 108872 HYD CYL

$

$

Not available

14

Toro 109083

VALVE HANDLE

$

$

Not available

15

Toro 932120

Pin
(Superseded to 9321204)

$4.99

$

Usually ships in 3-6 days

0

16

Toro 109082

C-HOOK

$

$

Not available

17

Toro 110488

ASSY HYD HOSE

$

$

Not available

18

Toro 110486

Hose-Valve Port "A" To Cylinder Front Port 37.75 in. (95.9 cm)

$

$

Not available

19

Toro 110487

ASSY HYD HOSE

$

$

Not available

20

Toro 100571

PLASTIC TIE

$

$

Not available

21

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

22

Toro 908010

HEX HD CAP SCREW -4

$0.99

$

In Stock, Qty 7

0

23

Toro 973370

0-Ring
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

24

Toro 973310

O RING

$5.99

$

In Stock, only 2 left!

0

25

Toro 110489

Hose-Transmission Filter Adapter To Valve Outlet Port 31.5 in. (80.0 cm)

$

$

Not available

26

Toro 810242R3

Repair Manual

$

$

Currently unavailable
