01-19KE01 (C-195) - Toro Garden Tractor (1982) HITCHES AND LIFT LINKAGE Parts Diagram

Garden Tractor

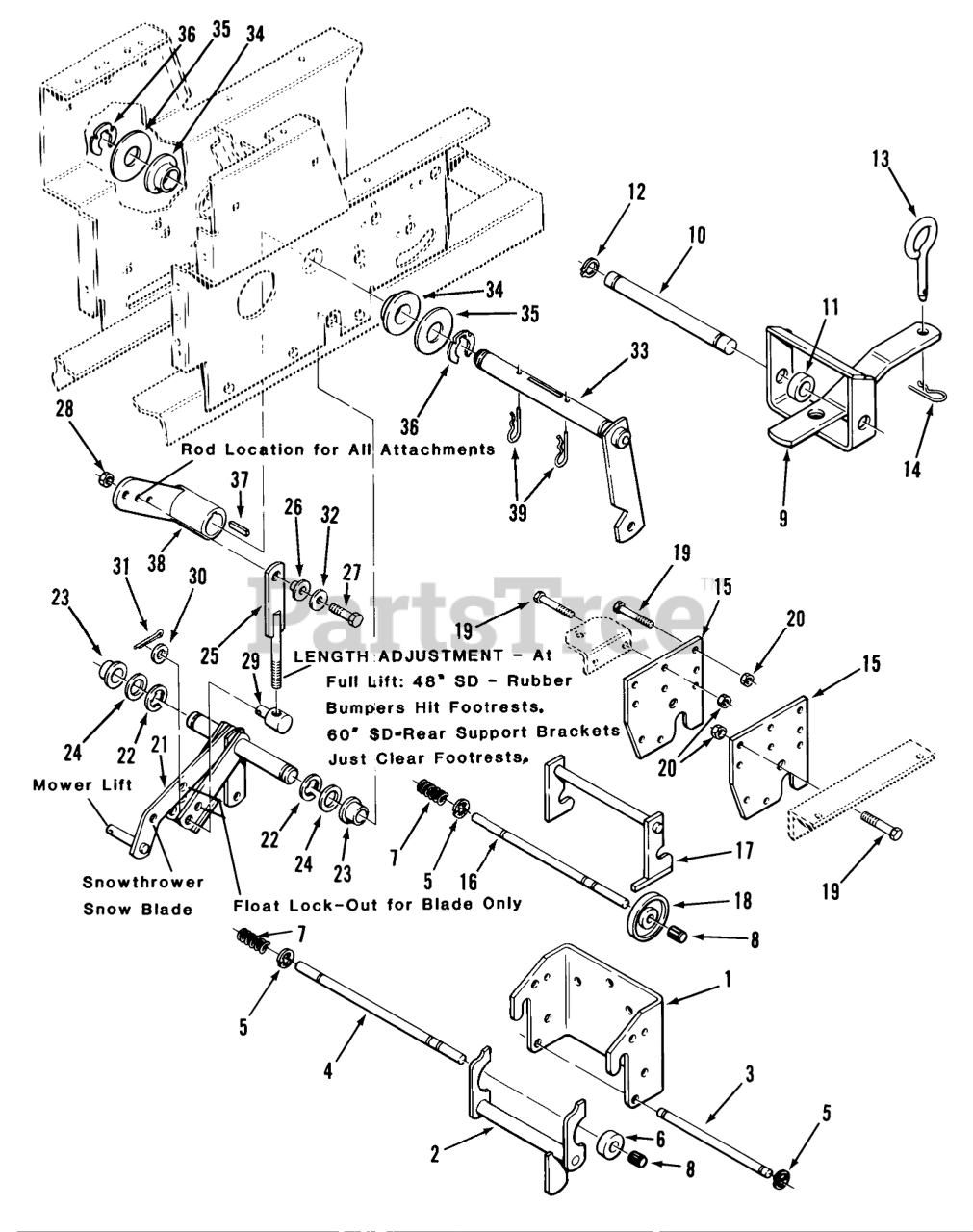

HITCHES AND LIFT LINKAGE Parts Diagram

  • Title
1

Toro 109674

HITCH-FRONT

$

$

Not available

2

Toro 105859

Assy-Latch
(Superseded to 93-1613)

$

$

Not available

3

Toro 101750

ROD-LATCH PIVOT

$49.99

$

Usually ships in 3-6 days

0

4

Toro 101751

ROD-LOCK

$27.99

$

Usually ships in 3-6 days

0

5

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

6

$

$

Not available

7

Toro 8616

SPRING

$3.99

$

Usually ships in 3-6 days

0

8

Toro 105316

CAP-ROD, PLUNGER

$1.49

$

In Stock, Qty 20+

0

9

Toro 109661

Drawbar Hitch

$

$

Not available

10

Toro 109672

Shaft-Drawbar Hitch

$

$

Not available

11

Toro 101757

SPACER-OUTER

$6.49

$

In Stock, Qty 5

0

12

Toro 5618

E-RING

$1.49

$

In Stock, Qty 11

0

13

Toro 106634

PIN-TOOL

$

$

Not available

14

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

15

Toro 109675

PLATE - HITCH R

$

$

Not available

16

$

$

Not available

17

Toro 109673

ASSY LATCH HITCH R
(Superseded to 109673-01)

$

$

Not available

18

$31.99

$

Usually ships in 3-6 days

0

19

Toro 911435

Bolt 3/8-16 x 1
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

20

$6.49

$

In Stock, only 2 left!

0

21

Toro 109666

Lift Bar and Bellcrank

$

$

Not available

22

Toro 104636

E Ring
(Superseded to 32151-48)

$1.99

$

In Stock, Qty 14

0

23

Toro 101442

BEARING

$

$

Not available

24

Toro 920250

WASHER

$

$

Not available

25

Toro 109709

Lift Rod

$

$

Not available

26

Toro 106891

SPACER-BUSHING

$

$

Not available

27

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

28

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

29

Toro 109727

Trunnion-Threaded

$

$

Not available

30

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

31

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 11

0

32

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

33

Toro 109320

Lift lever

$

$

Not available

34

Toro 106269

BEARING-FLANGE

$9.99

$

Usually ships in 3-6 days

0

35

Toro 920017

WASHER
(Superseded to 3256-62)

$1.49

$

Usually ships in 3-6 days

0

36

Toro 106414

Retainer
(Superseded to 32151-91)

$2.49

$

In Stock, Qty 5

0

37

Toro 1121

KEY-SQUARE

$12.99

$

Usually ships in 3-6 days

0

38

Toro 109701

Bellcrank

$

$

Not available

39

Toro 933507

Pin-Cotter
(Superseded to 9335074)

$5.49

$

In Stock, Qty 5

0
