01-19KE01 (C-195) - Toro Garden Tractor (1982) DRIVE BELT AND PULLEYS Parts Diagram

Garden Tractor

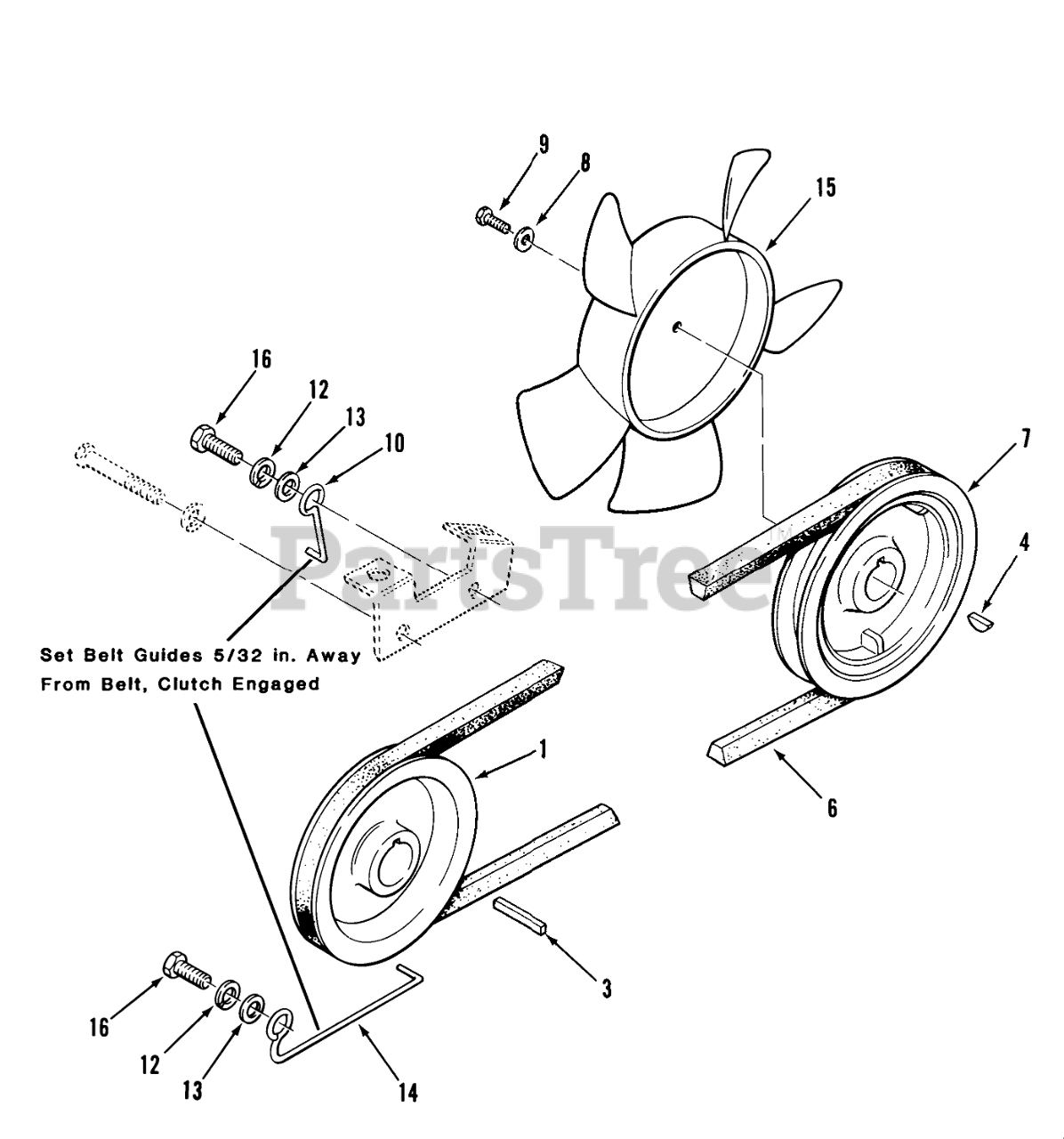

DRIVE BELT AND PULLEYS Parts Diagram

  • Title

1

Toro 109707

ASSY ENGINE PULLEY

$

$

Not available

3

Toro 1121

KEY-SQUARE

$12.99

$

Usually ships in 3-6 days

0

4

Toro 937089

KEY-WOODRUFF

$2.49

$

In Stock, Qty 5

0

6

Toro 109748

V-BELT

$

$

Not available

7

Toro 108316

PULLEY

$

$

Not available

8

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

9

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

10

Toro 107640

Belt Guide-Top
(Superseded to 110667)

$

$

Not available

12

Toro 920084

LOCKWASHER

$0.99

$

Usually ships in 3-6 days

0

13

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0

14

Toro 107638

Belt Guide-Bottom
(Superseded to 110668)

$16.99

$

In Stock, only 1 left!

0

15

Toro 108393

NYLON FAN-L-CW

$41.99

$

In Stock, only 1 left!

0

16

Toro 908047

7/16-14 x 1 1/4 Bolt
(Superseded to 324-5)

$0.99

$

Usually ships in 3-6 days

0
