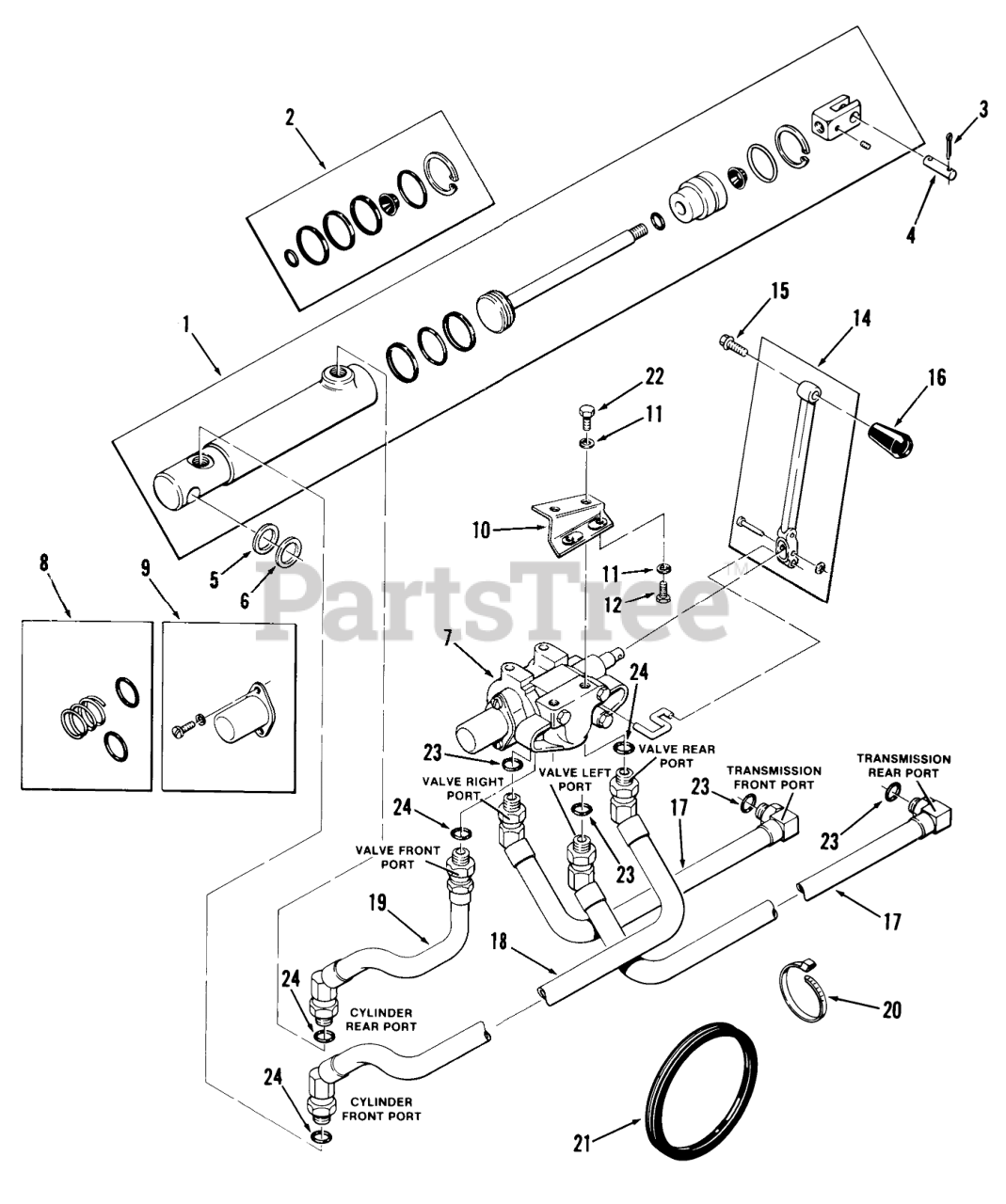

01-17KS02 (C-175) - Toro Garden Tractor (1980) HYDRAULIC SYSTEM Parts Diagram

Garden Tractor

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Toro 106249

Hydraulic Cylinder
(Superseded to 108872)

$

$

Not available

2

Toro 101699

S/A O-RING&GASKET AS

$159.99

$

Usually ships in 3-6 days

0

3

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 6619

PIN

$

$

Not available

5

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

6

Toro 4064

Spacer
(Superseded to 703269)

$122.99

$

Usually ships in 3-6 days

0

7

Toro 106680

Hydraulic Valve C-141, C-161, C-161 Twin Only
(Superseded to 99-5363)

$

$

Not available

8

Toro 105108

0-Ring Kit-S.A.
(Superseded to 110976)

$

$

Not available

9

Toro 101536

Spool Cap Kit

$

$

Not available

10

Toro 106404

Mounting Bracket

$

$

Not available

11

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

12

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

13

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

14

Toro 105145

S/A HANDLE&HARDWARE

$

$

Not available

15

Toro 960154

SCREW

$

$

Not available

16

Toro 102892

KNOB

$

$

Not available

17

Toro 106651

ASSY-HYDRAULIC HOSE

$

$

Not available

18

Toro 106420

Hose-Valve To Cylinder

$

$

Not available

19

Toro 106421

Hose-Valve To Cylinder

$

$

Not available

20

Toro 100571

PLASTIC TIE

$

$

Not available

21

Toro 106267

GROMMET

$

$

Not available

22

Toro 926696

Bolt
(Superseded to 9266964)

$9.49

$

Usually ships in 3-6 days

0

23

Toro 973370

0-Ring
(Superseded to 237-42)

$2.99

$

In Stock, Qty 20+

0

24

Toro 973310

O RING

$5.99

$

In Stock, only 2 left!

0
