01-17KE03 (C-175) - Toro Garden Tractor (1983) HYDRAULIC SYSTEM Parts Diagram

Garden Tractor

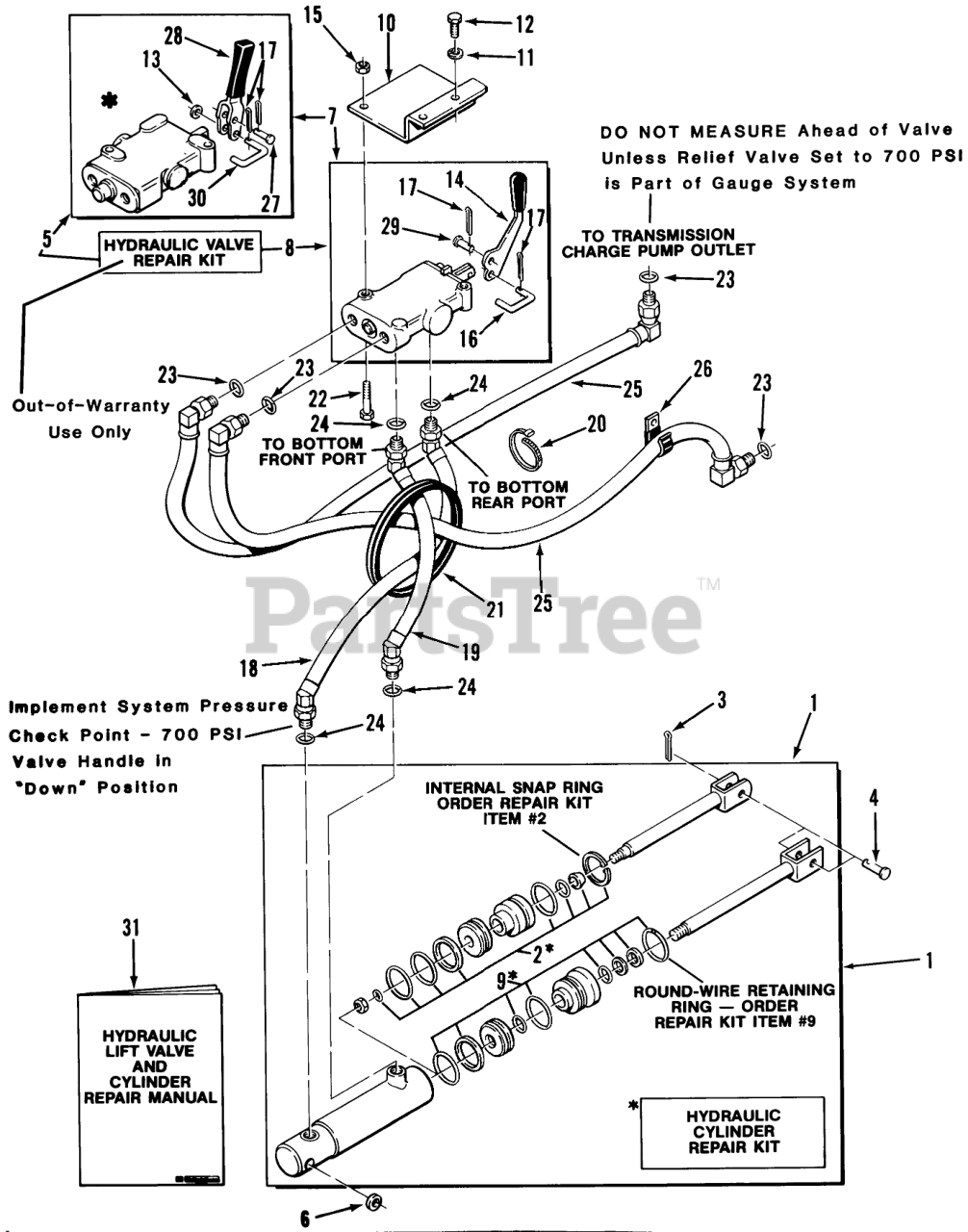

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Toro 108872

CYLINDER

$

$

Not available

2

Toro 101699

S/A O-RING&GASKET AS

$135.99

$

Usually ships in 3-6 days

0

3

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

4

Toro 932997

CLEVIS PIN

$

$

Not available

5

Toro 109084

S.A. Valve Repair Kit

Note: Use Out-of-Warranty Only. Replace Complete Valve Assembly During Warranty Period.

$

$

Not available

6

Toro 4064

Spacer
(Superseded to 703269)

$108.99

$

Usually ships in 3-6 days

0

7

Toro 110068

Hydraulic Valve

$

$

Not available

8

Toro 109081

S/A 110068 VALVE

Note: Use Out-of-Warranty Only. Replace Complete Valve Assembly During Warranty Period.

$

$

Not available

9

Toro 109088

S/A 108872 HYD CYL

$

$

Not available

10

Toro 110097

ASSY VALVE SUPPOR B

$

$

Not available

11

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

Usually ships in 3-6 days

0

12

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

13

Toro 920004

WASHER

$0.99

$

Usually ships in 3-6 days

0

14

Toro 109083

VALVE HANDLE

$

$

Not available

15

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

16

Toro 109082

C-HOOK

$

$

Not available

17

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

18

Toro 106420

Hose-Valve To Cylinder

$

$

Not available

19

Toro 106421

Hose-Valve To Cylinder

$

$

Not available

20

Toro 100571

PLASTIC TIE

$

$

Not available

21

Toro 106267

GROMMET

$

$

Not available

22

Toro 908008

Screw-Hex. Hd.
(Superseded to 321-10)

$1.49

$

In Stock, Qty 20+

0

23

Toro 973370

0-Ring
(Superseded to 237-42)

$2.99

$

In Stock, Qty 9

0

24

Toro 973310

O RING

$4.99

$

In Stock, only 2 left!

0

25

Toro 110096

ASSY HOSE HYDRAULIC

$177.99

$

Usually ships in 3-6 days

0

26

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

27

Toro 932917

CLEVIS PIN

$

$

Not available

28

Toro 109086

Valve Handle

$

$

Currently unavailable

29

Toro 932120

Pin
(Superseded to 9321204)

$4.99

$

Usually ships in 3-6 days

0

30

Toro 109085

Link Wire

$

$

Currently unavailable

31

Toro 810242R2

Repair Manual

$

$

Currently unavailable
