01-17K802 (C-175) - Toro Garden Tractor (1981) SINGLE CYLINDER ENGINES Parts Diagram

Garden Tractor

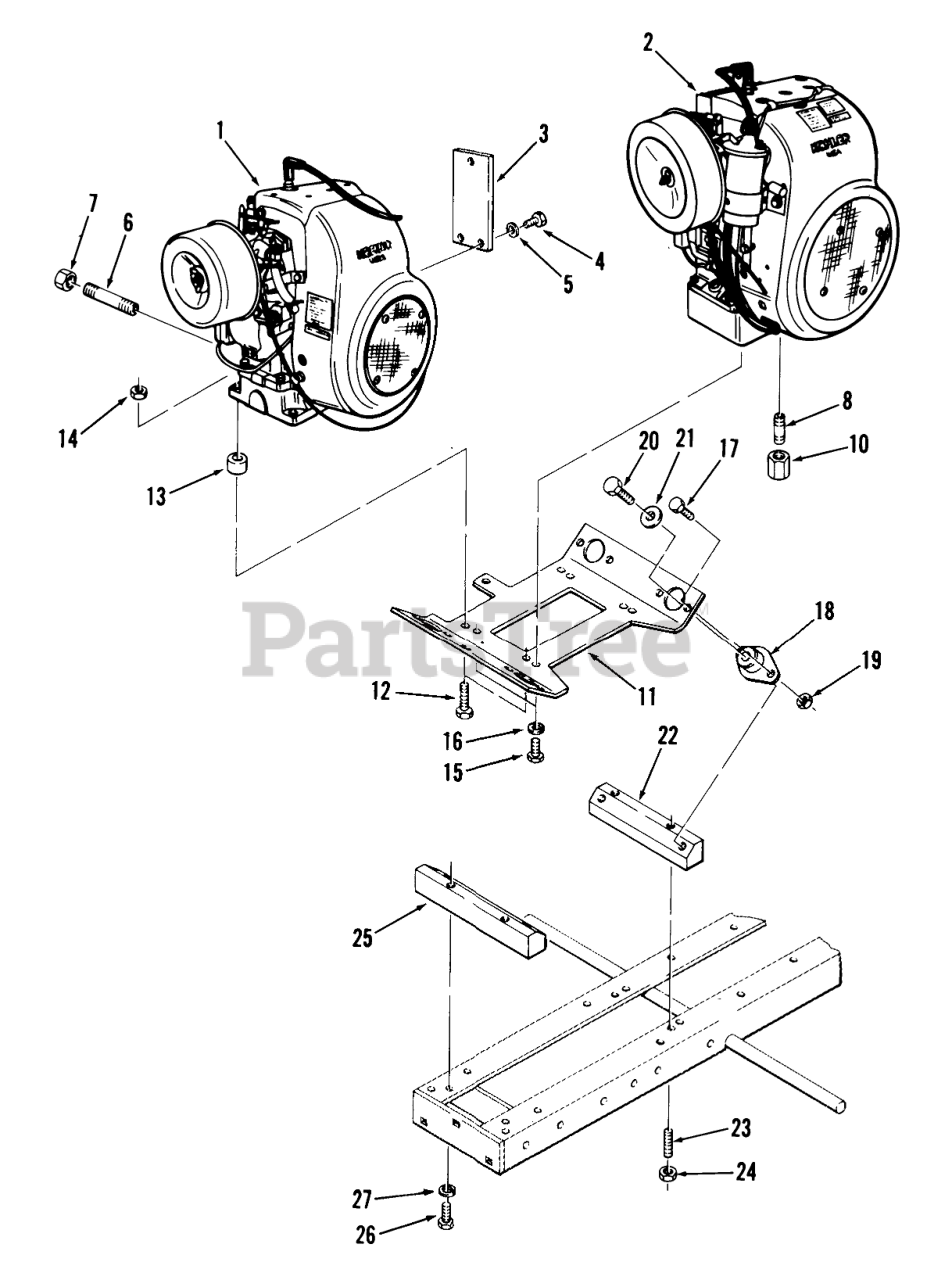

SINGLE CYLINDER ENGINES Parts Diagram

  • Title

2

Toro 108381

Engine-12HP Kohler K-301AS Spec PS-47723D

Note: Engines and Engine Parts are available through the Engine Manufacturer-s Distribution System, using the Model and Spec. Numbers Shown Above. WHEEL HORSE Part Numbers are Listed for Cross Reference Purposes Only; Engines and Engine Part Are Not Availabl

$

$

Currently unavailable

2

Toro 108382

Engine-14HP Kohler K-321AS Spec PS-60362D

Note: Engines and Engine Parts are available through the Engine Manufacturer-s Distribution System, using the Model and Spec. Numbers Shown Above. WHEEL HORSE Part Numbers are Listed for Cross Reference Purposes Only; Engines and Engine Part Are Not Availabl

$

$

Currently unavailable

2

Toro 108383

Engine-16HP Kohler K-341AS Spec PS-71303D

Note: Engines and Engine Parts are available through the Engine Manufacturer-s Distribution System, using the Model and Spec. Numbers Shown Above. WHEEL HORSE Part Numbers are Listed for Cross Reference Purposes Only; Engines and Engine Part Are Not Availabl

$

$

Currently unavailable

8

Toro 943314

Pipe Nipple 1/4 C-101, C-121, C-141, C-161 Only

$

$

Not available

10

Toro 107379

CAP 1/4 PIPE

$

$

Not available

11

Toro 106425

Engine Cradle

$

$

Not available

15

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

16

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

17

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

18

Toro 108309

MOUNT-ISOLATION

$65.99

$

Usually ships in 3-6 days

0

19

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

20

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

21

Toro 920249

Washer
(Superseded to 9202494)

$5.99

$

In Stock, only 2 left!

0

22

Toro 106432

MOUNT-BLOCK-REAR

$

$

Not available

23

Toro 909885

SET SRW 3/8X16-1 3/4

$

$

Not available

24

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

25

Toro 106431

Engine Mounting Block-Front

$

$

Not available

26

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

27

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

1

Toro 108378

Engine-8HP Kohler K-1815 Spec PS-30743D

Note: Engines and Engine Parts are available through the Engine Manufacturer-s Distribution System, using the Model and Spec. Numbers Shown Above. WHEEL HORSE Part Numbers are Listed for Cross Reference Purposes Only: Engines and Engine Parts Are Not Availab

$

$

Currently unavailable

2

Toro 108379

Engine-1OHP Kohler K-241AS Spec PS-46805D

Note: Engines and Engine Parts are available through the Engine Manufacturer-s Distribution System, using the Model and Spec. Numbers Shown Above. WHEEL HORSE Part Numbers are Listed for Cross Reference Purposes Only: Engines and Engine Parts Are Not Availab

$

$

Currently unavailable

3

Toro 102371

PLATE COIL & SOL MTG

$

$

Not available

4

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

5

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

6

Toro 943341

Nipple 1/2"

$

$

Not available

7

Toro 106435

CAP-PIPE 1/2 IN

$

$

Not available

12

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

13

Toro 106430

SPACER

$

$

Not available

14

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

18

Toro 108308

Isolation Mount C-85
(Superseded to 108309)

$65.99

$

Usually ships in 3-6 days

0
