01-17K802 (C-175) - Toro Garden Tractor (1981) LIFT LINKAGE (CONT-D) Parts Diagram

Garden Tractor

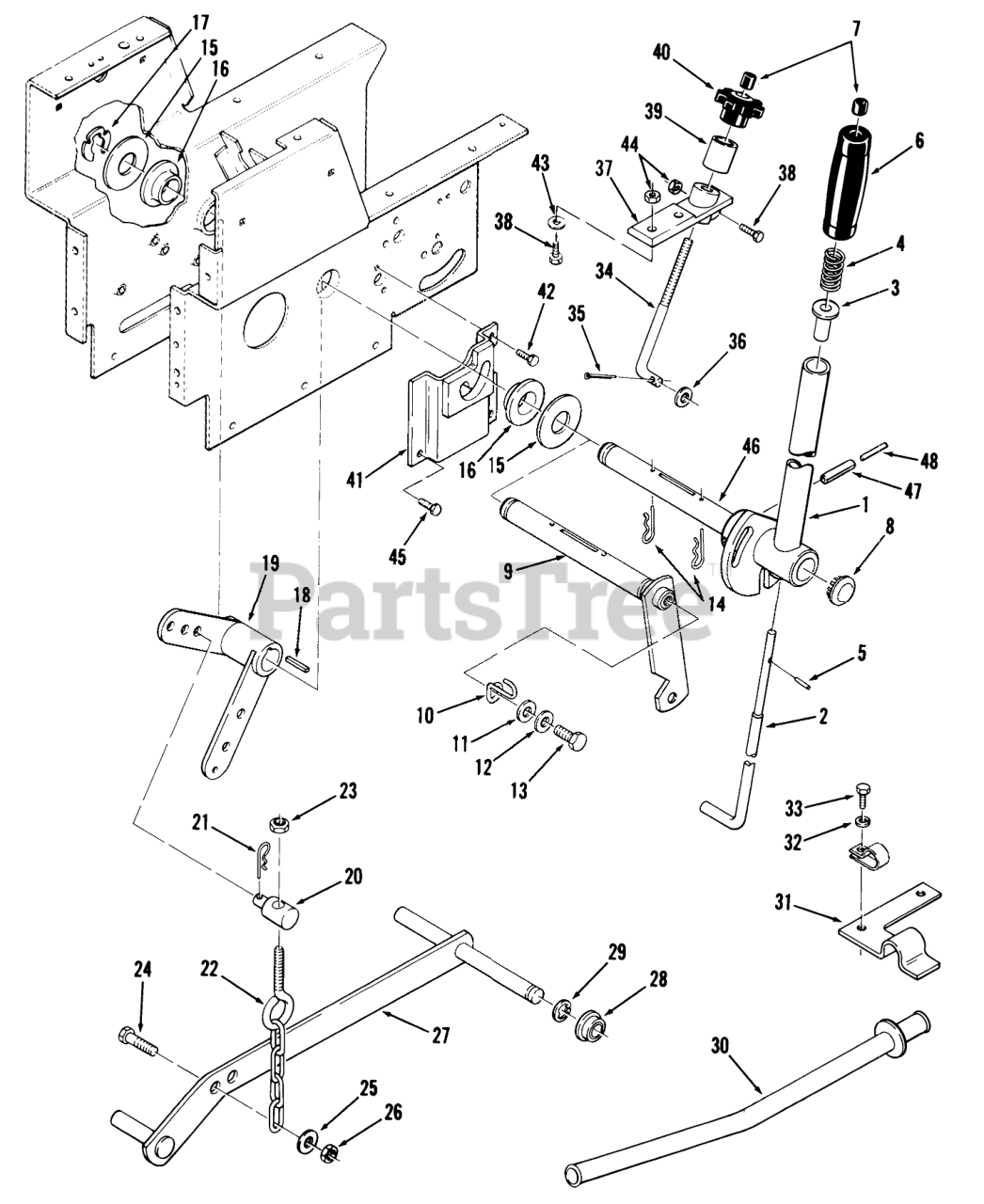

LIFT LINKAGE (CONT-D) Parts Diagram

  • Title
26

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

27

Toro 102373

ASSY LIFT BAR R
(Superseded to 102373-01)

$191.99

$

Usually ships in 3-6 days

0

28

Toro 6229

BUSHING

$10.99

$

In Stock, only 2 left!

0

29

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 8

0

30

Toro 105845

TUBE ASSY COMPLET R
(Superseded to 105845-01)

$

$

Not available

31

Toro 105528

Clamp-Tube
(Superseded to 108903-01)

$16.99

$

Usually ships in 3-6 days

0

32

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

33

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 20+

0

34

Toro 106354

Rod
(Superseded to 110653)

$54.99

$

Usually ships in 3-6 days

0

35

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 11

0

36

Toro 920228

WASHER -4

$

$

Not available

37

Toro 106345

Casting
(Superseded to 106345-03)

$

$

Not available

38

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

39

Toro 106258

Sleeve
(Superseded to 106258-03)

$20.99

$

Usually ships in 3-6 days

0

40

Toro 5280

KNOB-LIFT CONTROL

$31.99

$

Usually ships in 3-6 days

0

41

Toro 106411

Latch Bracket
(Superseded to 106411-03)

$

$

Not available

42

Toro 926694

SCREW

$

$

Not available

43

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

44

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

45

Toro 926696

Bolt
(Superseded to 9266964)

$9.49

$

Usually ships in 3-6 days

0

46

Toro 108565

SHAFT-LIFT LEVER

$

$

Not available

47

Toro 933268

SPIROL PIN

$1.49

$

In Stock, Qty 6

0

48

Toro 933230

Roll Pin
(Superseded to 32121-25)

$4.49

$

Usually ships in 3-6 days

0
