01-16KH01 (SK-486) - Toro Garden Tractor (1982) SEAT - SK-486 Parts Diagram

Garden Tractor

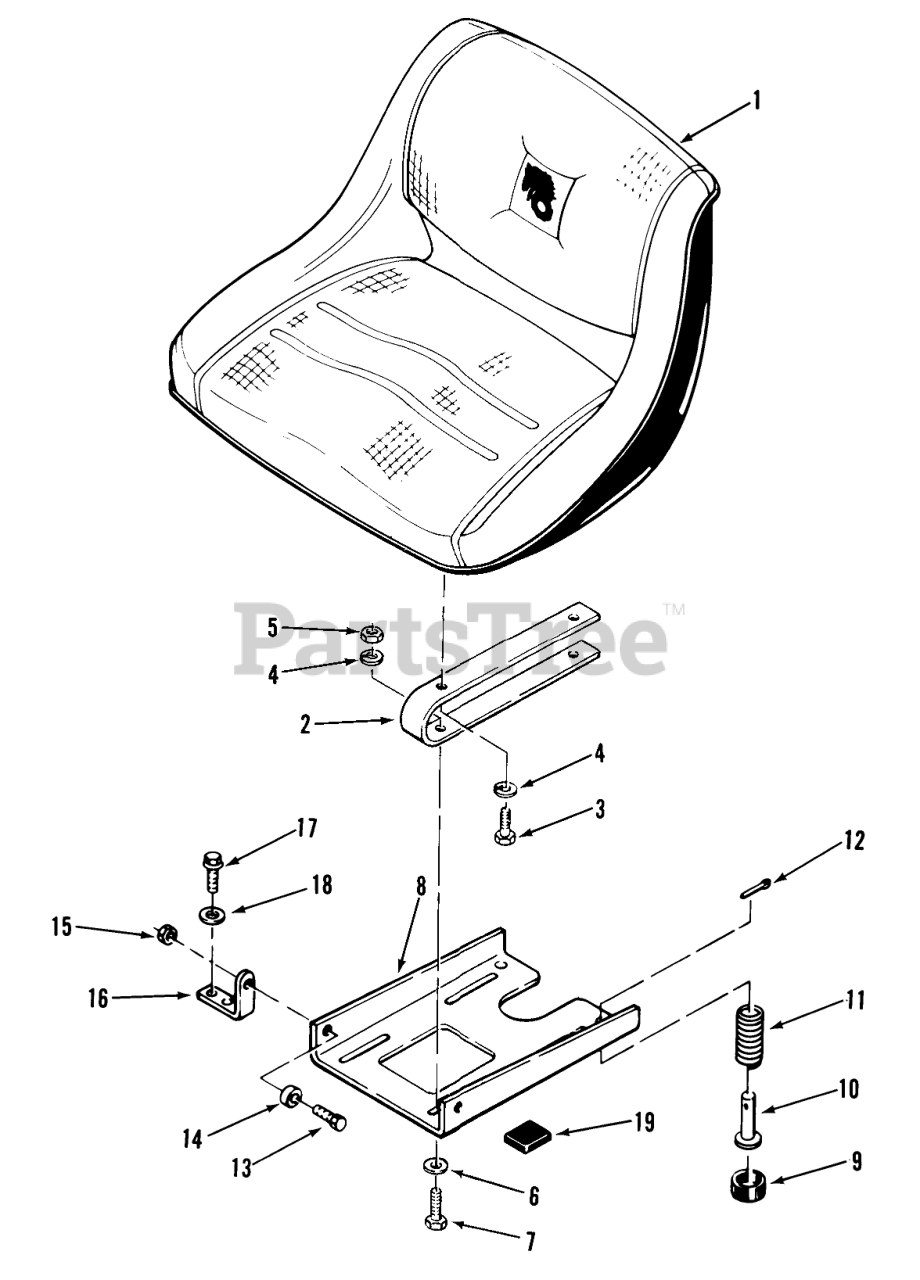

SEAT - SK-486 Parts Diagram

  • Title

1

Toro 105259

Seat
(Superseded to 78-7600)

$

$

Not available

2

Toro 103145

Spring
(Superseded to 110920-03)

$195.99

$

Usually ships in 3-6 days

0

3

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

4

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

5

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

6

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

7

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

8

Toro 108681

Pivot Plate
(Superseded to 111714)

$

$

Not available

9

Toro 106331

CUP

$

$

Not available

10

Toro 106449

PIN

$7.99

$

Usually ships in 3-6 days

0

11

Toro 104841

SPRING

$2.49

$

In Stock, only 2 left!

0

12

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

13

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

14

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

15

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

16

Toro 105524

BRACKET-PIVOT

$

$

Not available

17

Toro 926699

SEAT BOLT FOR C195

$

$

Not available

18

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

19

Toro 109597

BUMPER

$

$

Not available
