01-16KH01 (SK-486) - Toro Garden Tractor (1982) FUEL AND EXHAUST SYSTEM - SK-486 Parts Diagram

Garden Tractor

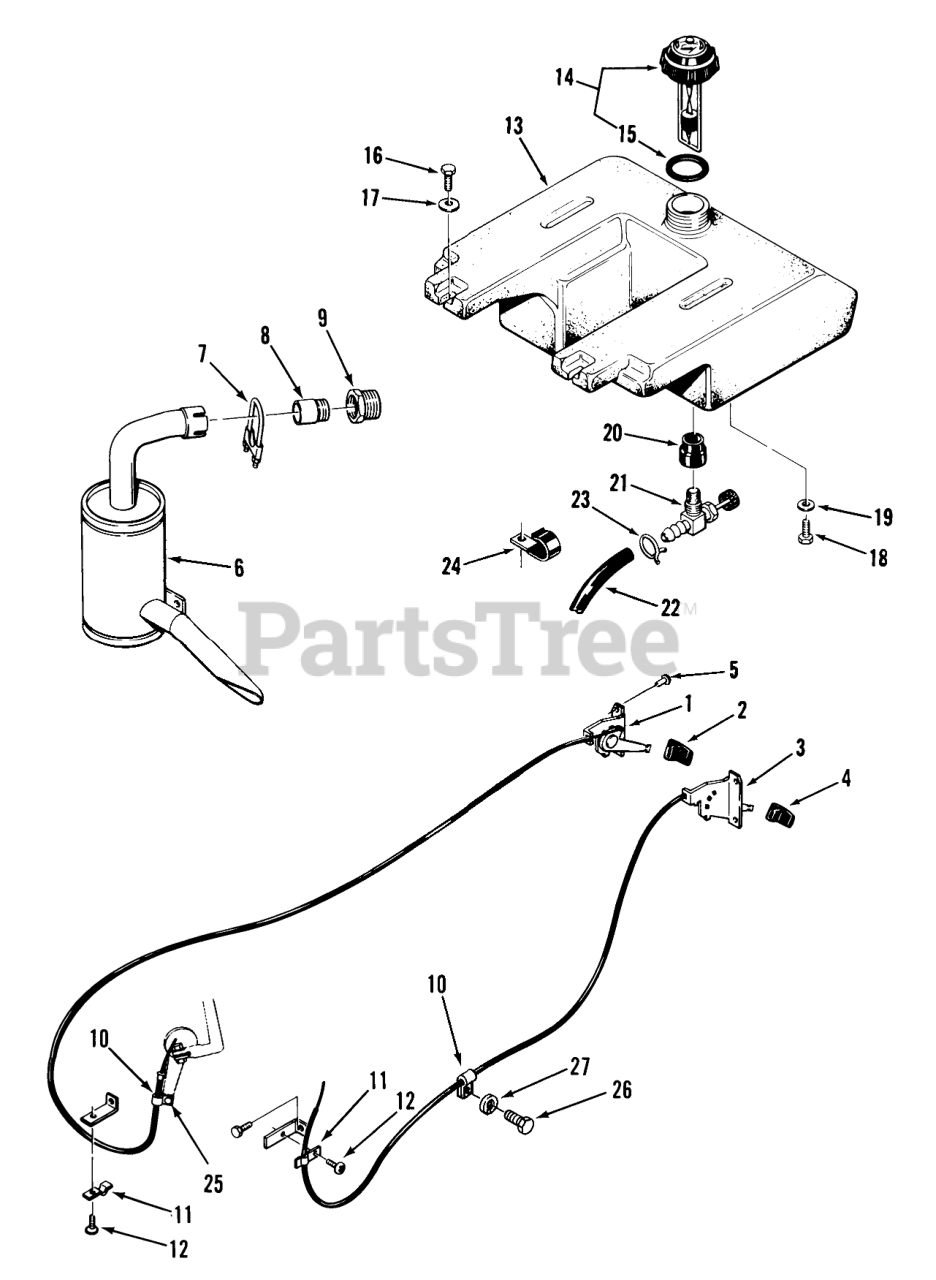

FUEL AND EXHAUST SYSTEM - SK-486 Parts Diagram

  • Title

1

Toro 101835

THROTTLE CONTROL

$

$

Not available

2

Toro 108509

KNOB-THROTTLE

$7.49

$

In Stock, only 3 left!

0

3

Toro 106752

CONTROL-CHOKE

$

$

Not available

4

Toro 108510

KNOB-CHOKE

$10.99

$

In Stock, Qty 8

0

5

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

6

Toro 106918

MUFFLER ASSEMBLY

$

$

Not available

7

Toro 102645

ASSY-MUFFLER CLAMP

$15.99

$

In Stock, only 1 left!

0

8

Toro 105913

NIPPLE- 1X2 SPECIAL

$

$

Not available

9

Toro 943151

REDUCER 1 1/4-1

$

$

Not available

10

Toro 2879

Clip
(Superseded to 7922)

$3.99

$

Usually ships in 3-6 days

0

11

Toro 105971

CLAMP-CABLE

$2.99

$

In Stock, Qty 5

0

12

Toro 911738

SCREW

$

$

Not available

13

Toro 106234

TANK-FUEL

$456.99

$

Usually ships in 3-6 days

0

14

Toro 106945

ASSY-GAUGE CAP

$34.99

$

In Stock, Qty 15

0

15

Toro 106931

GASKET-GAS CAP

$

$

Not available

16

Toro 926696

Bolt
(Superseded to 9266964)

$9.49

$

Usually ships in 3-6 days

0

17

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

18

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

19

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

20

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

21

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

22

Toro 106445

Fuel Line
(Superseded to 110521)

$

$

Not available

23

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

24

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

25

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

26

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 1 left!

0

27

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0
