01-16K802 (C-165) - Toro Garden Tractor (1981) DRIVE BELT AND PULLEYS Parts Diagram

Garden Tractor

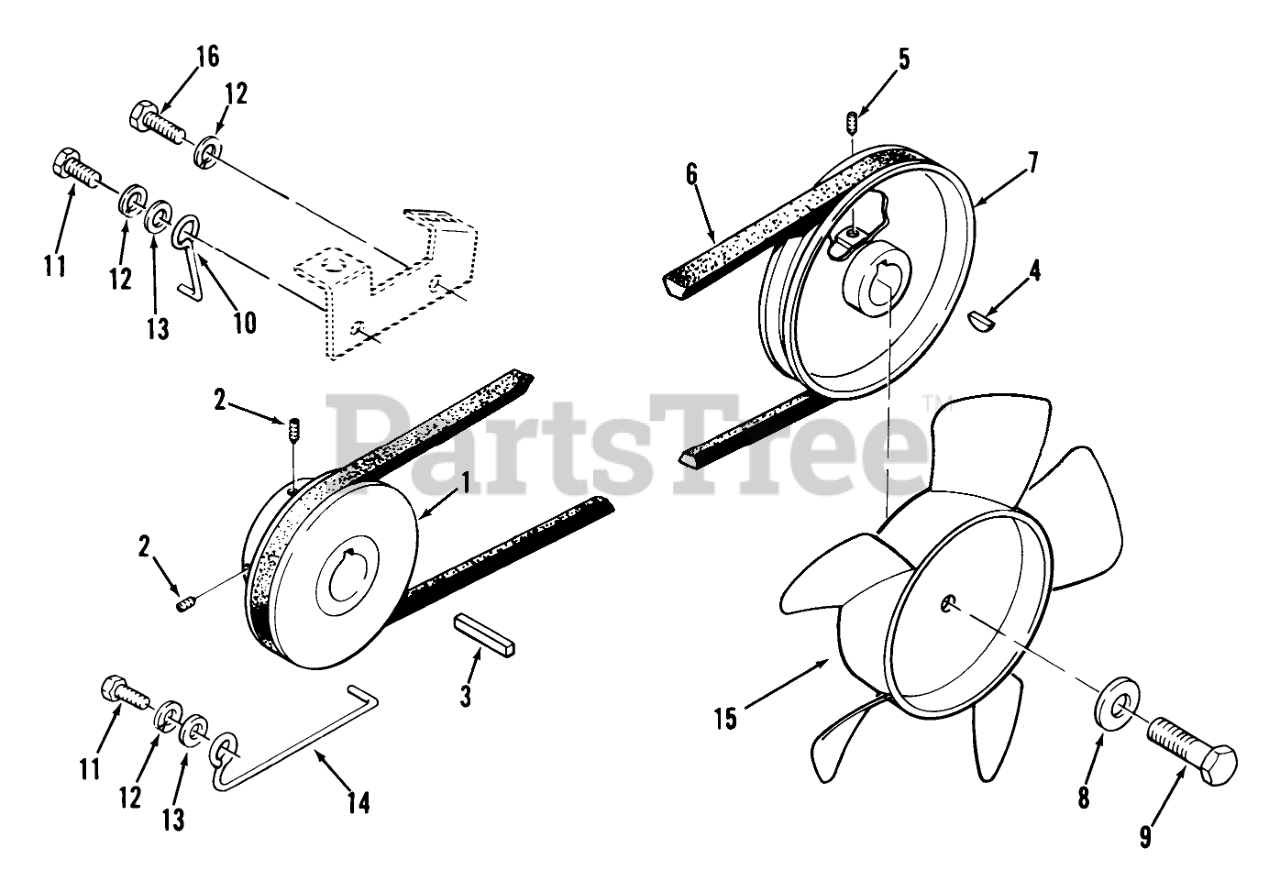

DRIVE BELT AND PULLEYS Parts Diagram

  • Title

1

Toro 7466

Engine Drive Pulley C-105, C-125, C-145, C-165, C-175 Twin Only

$184.99

$

Usually ships in 3-6 days

0

1

Toro 101875

Engine Drive Pulley C-85 Only

$

$

Not available

2

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

3

Toro 105453

Key

$2.49

$

In Stock, only 2 left!

0

4

Toro 937221

KEY-HI PRO
(Superseded to 3257-17)

$

$

Not available

5

Toro 909540

Set Screw
(Superseded to 3242-2)

$1.99

$

In Stock, only 3 left!

0

6

Toro 7473

Drive Belt C-85, C-105, C-125, C-145, C-165 Only

$63.99

$

In Stock, only 2 left!

0

6

Toro 107939

Drive Belt C-175 Twin Only
(Superseded to 93-9809)

$69.99

$

In Stock, only 1 left!

0

7

Toro 106165

PULLEY-TRANSMISSION

$148.99

$

Usually ships in 3-6 days

0

10

Toro 107640

Belt Guide-Top
(Superseded to 110667)

$

$

Not available

11

Toro 908047

7/16-14 x 1 1/4 Bolt
(Superseded to 324-5)

$0.99

$

Usually ships in 3-6 days

0

11

Toro 908032

Bolt 3/8-16 X 3/4 C-85 Only
(Superseded to 323-4)

$3.99

$

In Stock, only 1 left!

0

12

Toro 920084

Lockwasher 7/16 C-105, C-125, C-145, C-165, C-175 Twin Only

$0.99

$

Usually ships in 3-6 days

0

12

Toro 920083

Lockwasher 3/8 C-85 Only
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

13

Toro 920010

Washer 7/16 C-105, C-125, C-145, C-165, C-175 Twin Only

$0.99

$

Usually ships in 3-6 days

0

13

Toro 920009

Washer 3/8 C-85 Only
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 16

0

14

Toro 107638

Belt Guide-Bottom
(Superseded to 110668)

$16.99

$

In Stock, only 1 left!

0

16

Toro 908047

Bolt 7/16-14 X 1-1/4 C-105, C-125, C-145, C-165, C-175 Twin Only
(Superseded to 324-5)

$0.99

$

Usually ships in 3-6 days

0

16

Toro 908035

Bolt 3/8-16 X 1-1/4 C-85 Only
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0
