01-14KE04 (C-145) - Toro Garden Tractor (1983) HEAD AND TAIL LIGHTS Parts Diagram

Garden Tractor

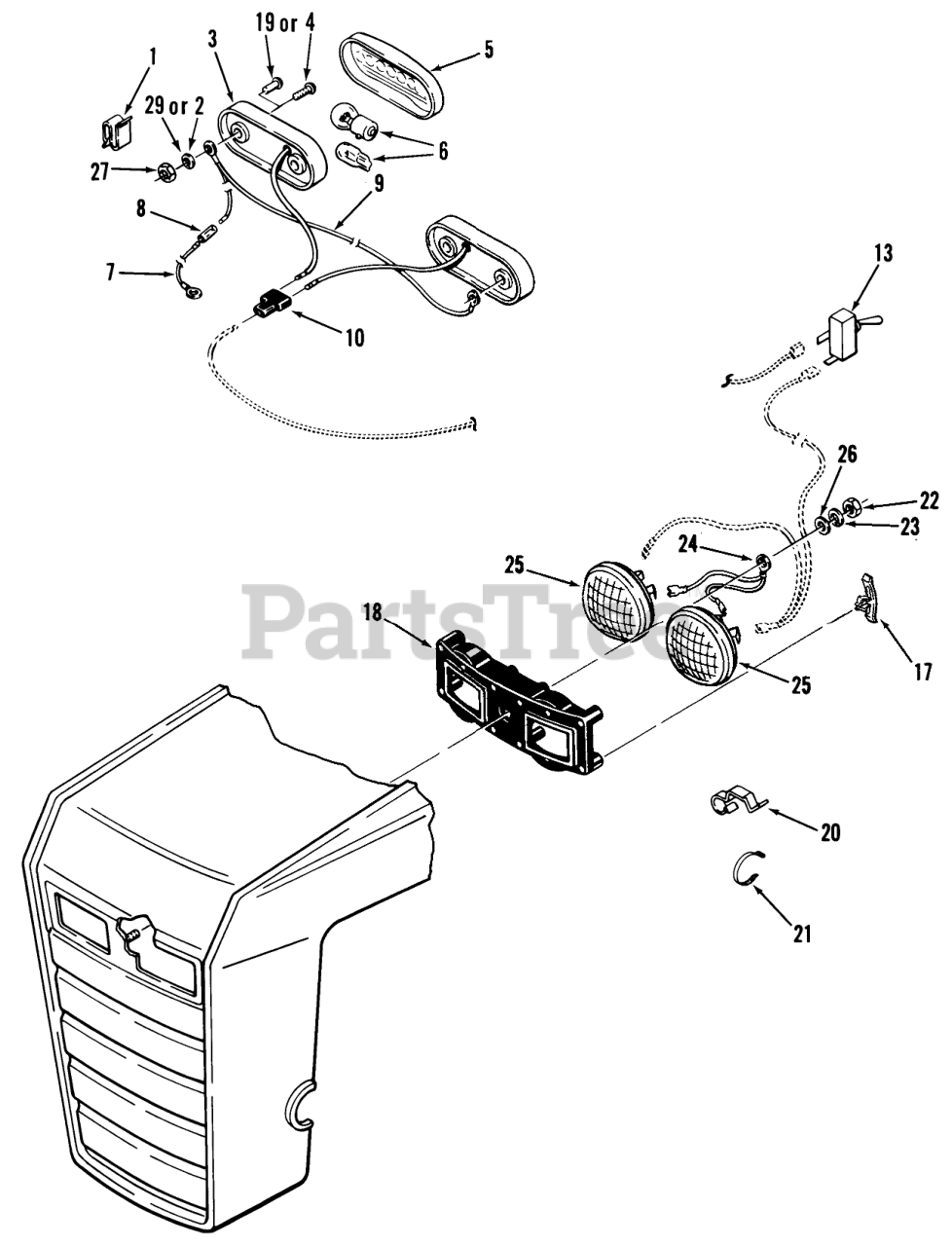

HEAD AND TAIL LIGHTS Parts Diagram

  • Title

1

Toro 3023

SPEED CLIP

$

$

Not available

2

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

3

Toro 105202

BASE-TAIL LIGHT

$

$

Not available

4

Toro 910808

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

5

Toro 102884

Lens-Taillight
(Superseded to 112564)

$9.99

$

In Stock, Qty 5

0

6

Toro 8043

Bulb

$

$

Currently unavailable

6

Toro 109045

LIGHT BULB

$

$

Not available

7

Toro 107399

ASSEMBLY-WIRE

$

$

Not available

8

Toro 6922

CONNECTOR 2 WIRE

$

$

Not available

9

Toro 108218

Taillight Wire

$

$

Not available

10

Toro 7618

CONNECTOR 3 WIRE

$

$

Not available

13

Toro 102138

SWITCH-LIGHTS

$40.99

$

Usually ships in 3-6 days

0

17

Toro 108911

CLIP-SPRING

$4.49

$

In Stock, Qty 7

0

18

Toro 108036

Headlight Retainer

$

$

Not available

19

Toro 109193

Poprivet
(Superseded to 3290-282)

$0.99

$

In Stock, Qty 8

0

20

Toro 8519

CLIP-WIRE

$

$

Not available

21

Toro 100571

PLASTIC TIE

$

$

Not available

22

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

23

Toro 920155

Washer-Lock
(Superseded to 3254-23)

$

$

Not available

24

Toro 108130

LIGHT GROUND WIRE

$

$

Not available

25

Toro 102881

HEADLAMP

$

$

Not available

26

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

27

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

28

Toro 920004

WASHER

$0.99

$

Usually ships in 3-6 days

0
