01-14KE04 (C-145) - Toro Garden Tractor (1983) EXHAUST SYSTEM Parts Diagram

Garden Tractor

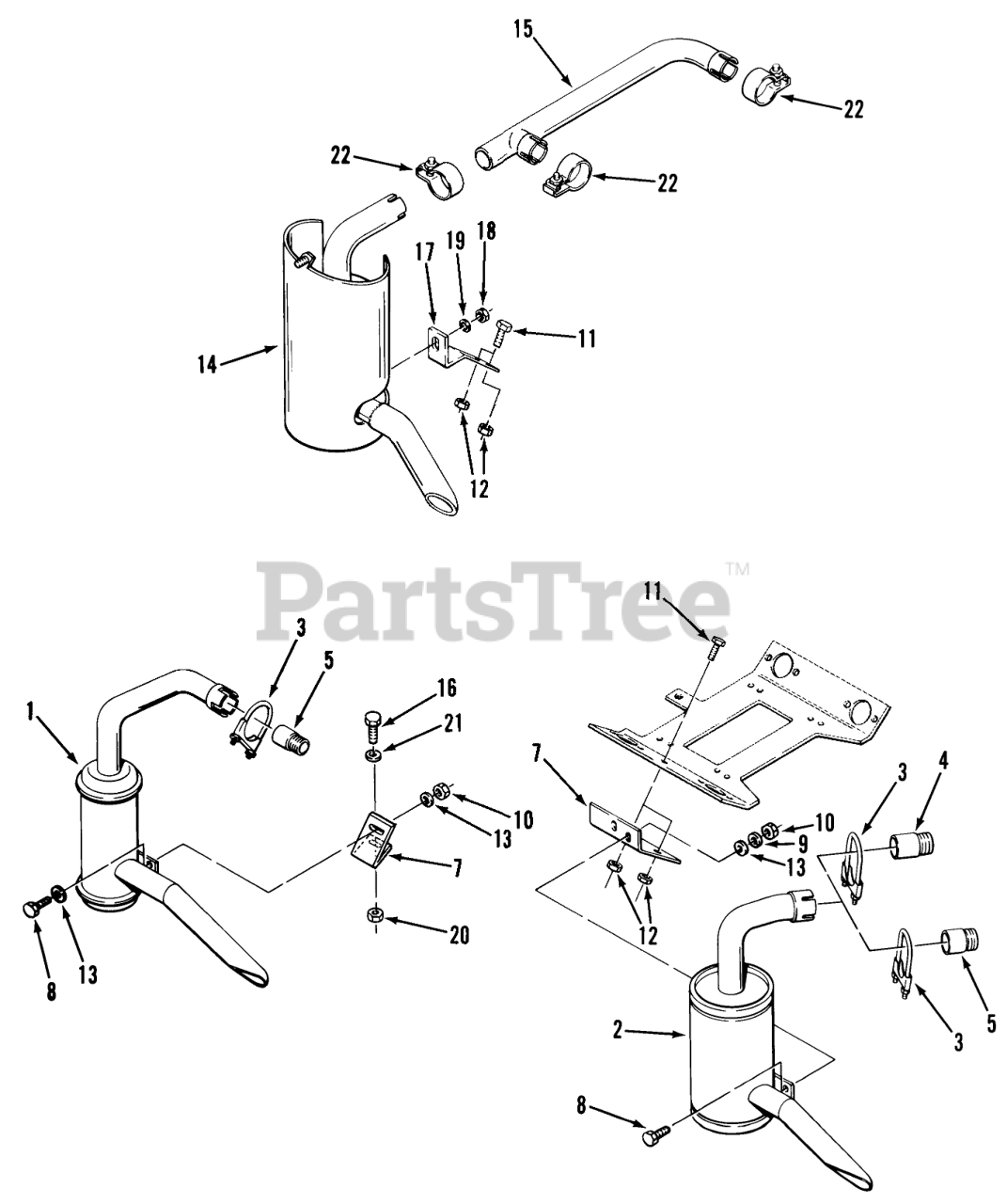

EXHAUST SYSTEM Parts Diagram

  • Title

2

Toro 106918

MUFFLER ASSEMBLY

$

$

Not available

3

Toro 102645

ASSY-MUFFLER CLAMP

$15.99

$

In Stock, only 1 left!

0

4

Toro 102265

NIPPLE

$

$

Not available

5

Toro 105913

NIPPLE- 1X2 SPECIAL

$

$

Not available

7

Toro 106428

BRACKET-MUFFLER MTG

$

$

Not available

8

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

9

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

10

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

11

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

12

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

14

Toro 108852

Muffler C-175 Twin Only

$

$

Not available

15

Toro 106867

MANIFOLD-EXHAUST

$

$

Not available

17

Toro 108853

BRACKET-MUFFLER

$

$

Not available

18

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

19

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

22

Toro 108882

CLAMP-MUFFLER

$

$

Not available

1

Toro 106429

ASSY-MUFFLER

$871.99

$

Usually ships in 3-6 days

0

7

Toro 110067

Muffler Mounting Bracket C-85 Only

$

$

Not available

8

Toro 908003

Bolt
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

13

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

16

Toro 908034

BOLT
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

20

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

21

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0
