01-14KE03 (C-145) - Toro Garden Tractor (1982) DRIVE BELT AND PULLEYS Parts Diagram

Garden Tractor

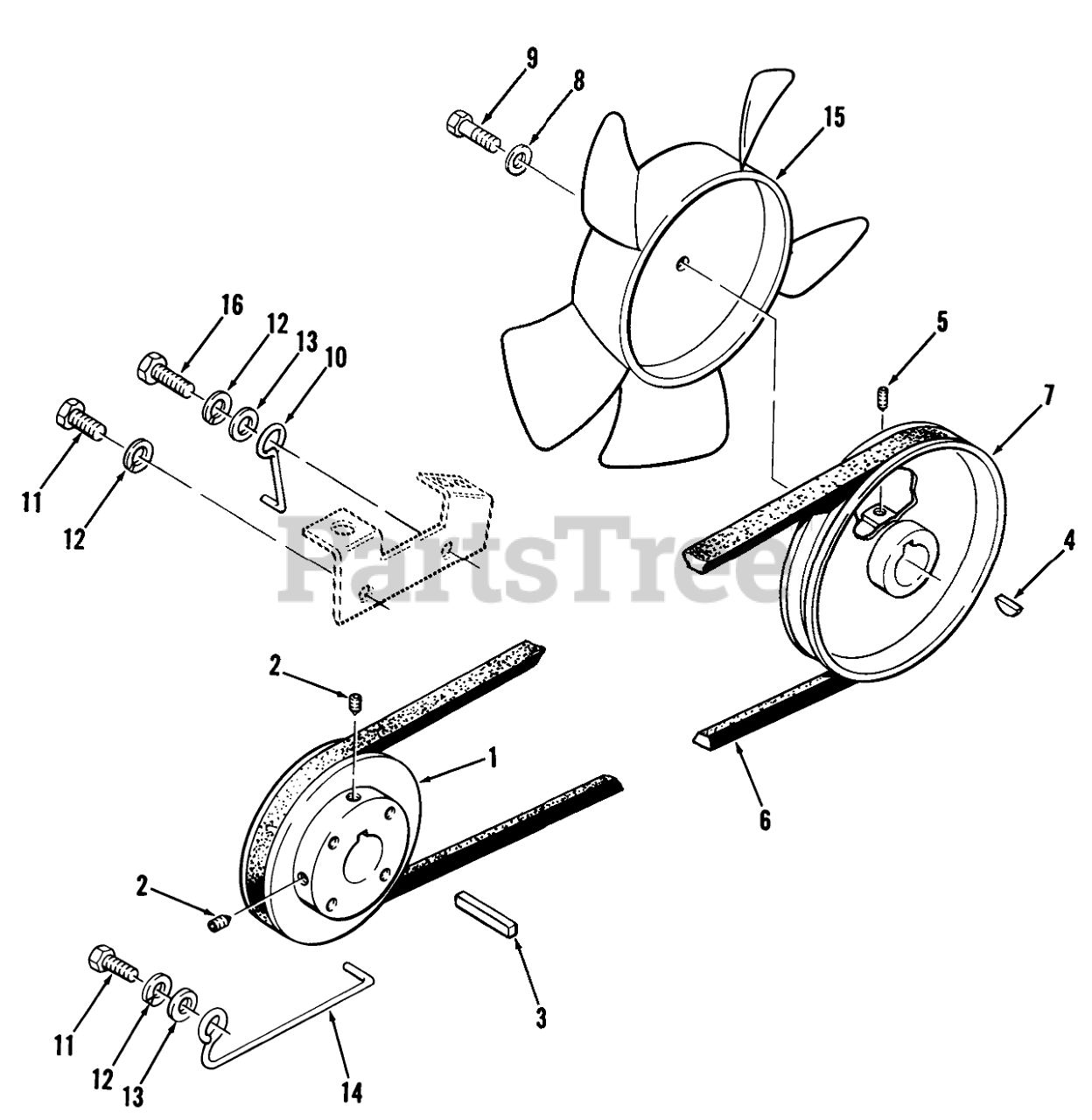

DRIVE BELT AND PULLEYS Parts Diagram

  • Title

1

Toro 7443

PULLEY

$

$

Not available

2

Toro 909862

Set Screw
(Superseded to 3246-2)

$0.99

$

Usually ships in 3-6 days

0

3

Toro 105453

Key

$2.49

$

In Stock, only 2 left!

0

4

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

In Stock, Qty 20+

0

6

Toro 108501

V-BELT TRANS DRIVE

$59.99

$

In Stock, only 2 left!

0

6

Toro 108502

V-BELT TRANS DRIVE

$72.99

$

Usually ships in 3-6 days

0

7

Toro 108316

PULLEY

$

$

Not available

8

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

9

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

10

Toro 107640

Belt Guide-Top
(Superseded to 110667)

$

$

Not available

11

Toro 908047

7/16-14 x 1 1/4 Bolt
(Superseded to 324-5)

$0.99

$

Usually ships in 3-6 days

0

11

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 20+

0

12

Toro 920084

LOCKWASHER

$0.99

$

Usually ships in 3-6 days

0

13

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0

14

Toro 107638

Belt Guide-Bottom
(Superseded to 110668)

$16.99

$

In Stock, only 1 left!

0

15

Toro 108393

NYLON FAN-L-CW

$41.99

$

In Stock, only 3 left!

0

16

Toro 908047

7/16-14 x 1 1/4 Bolt
(Superseded to 324-5)

$0.99

$

Usually ships in 3-6 days

0

1

Toro 7466

PULLEY

$184.99

$

Usually ships in 3-6 days

0

1

Toro 101875

PULLEY

$

$

Not available

4

Toro 937221

KEY-HI PRO
(Superseded to 3257-17)

$6.49

$

In Stock, only 1 left!

0

5

Toro 909540

Set Screw
(Superseded to 3242-2)

$1.99

$

In Stock, only 3 left!

0

6

Toro 7473

V BELT

$55.99

$

In Stock, only 3 left!

0

6

Toro 107939

Belt-Drive
(Superseded to 93-9809)

$61.99

$

In Stock, only 1 left!

0

7

Toro 106165

PULLEY-TRANSMISSION

$148.99

$

Usually ships in 3-6 days

0

12

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0

13

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

16

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0
