01-14KE03 (C-145) - Toro Garden Tractor (1982) AUTOMATIC TRANSMISSION Parts Diagram

Garden Tractor

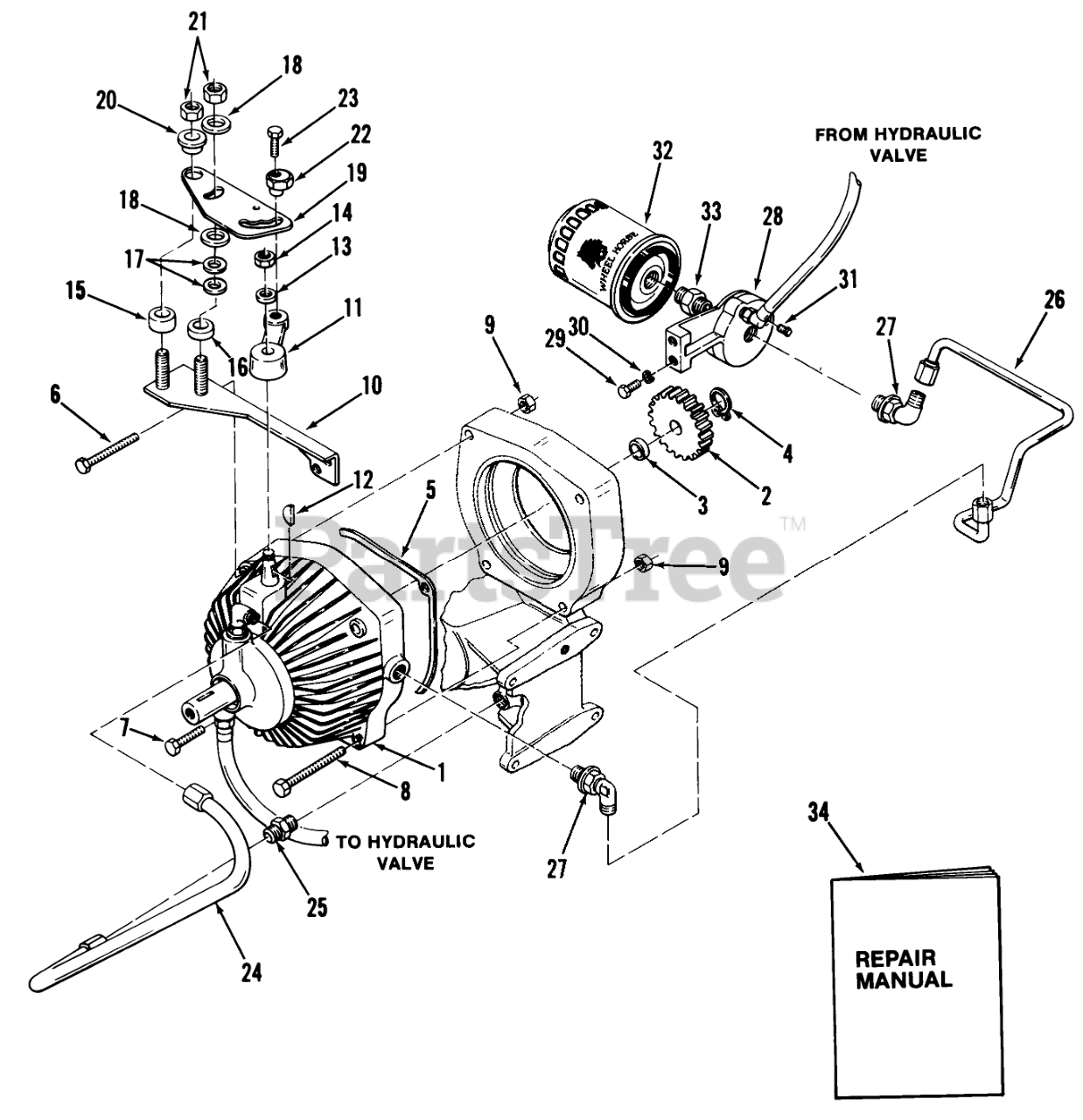

AUTOMATIC TRANSMISSION Parts Diagram

  • Title
1

Toro 108368

Pump & Motor
(Superseded to 92-9848)

$

$

Not available

2

Toro 108320

GEAR 22T DRIVE

$

$

Not available

3

Toro 108366

SPACER GEAR

$

$

Not available

4

Toro 936121

SNAP RING- 5/8 EXT

$0.99

$

Usually ships in 3-6 days

0

5

Toro 108319

GASKET

$10.99

$

In Stock, only 2 left!

0

6

Toro 908143

H H C S
(Superseded to 323-39)

$11.99

$

In Stock, Qty 20+

0

7

Toro 908040

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

8

Toro 911429

Bolt 3/8-16 x 6 1/2
(Superseded to 323-26)

$11.99

$

In Stock, only 1 left!

0

9

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

10

Toro 108329

ASSY-PLATE B

$

$

Not available

11

Toro 108325

ARM-SPEED CONTROLB
(Superseded to 108325-03)

$77.99

$

Usually ships in 3-6 days

0

12

Toro 937009

Key #5 Woodruff
(Superseded to 937084)

$

$

Not available

13

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

14

Toro 915115

Eslok Nut
(Superseded to 3296-23)

$1.49

$

In Stock, Qty 20+

0

15

Toro 108326

SPACER-PIVOT

$22.99

$

Usually ships in 3-6 days

0

16

Toro 108327

SPACER-FRICTION

$2.99

$

Usually ships in 3-6 days

0

17

Toro 100365

WASHER-SPRING DISC

$

$

Not available

18

Toro 100305

FRICTION WASHER

$5.99

$

In Stock, only 2 left!

0

19

Toro 108333

CAM-SPEED CONTROL (NS)

$43.99

$

In Stock, only 1 left!

0

20

Toro 100309

CAM-SPACER

$9.99

$

In Stock, only 1 left!

0

21

$6.49

$

In Stock, only 2 left!

0

22

$

$

Not available

23

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

24

Toro 108317

ASSY-TUBE-SUCTION

$

$

Not available

25

Toro 108364

FITTING-TUBE

$

$

Not available

26

Toro 109377

ASM-TUBE FILTER OUTL

$

$

Not available

27

Toro 108365

ELBOW
(Superseded to 103-1802)

$23.99

$

In Stock, only 1 left!

0

28

Toro 108323

BASE-FILTER

$245.99

$

Usually ships in 3-6 days

0

29

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 13

0

30

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

31

Toro 943460

PLUG 1/4 PIPE ALLEN
(Superseded to 285-22)

$1.49

$

Usually ships in 3-6 days

0

32

Toro 108335

Filter-Oil
(Superseded to 79-5270)

$21.99

$

In Stock, only 1 left!

0

33

Toro 5991

FITTING

$

$

Not available

34

Toro 810243R1

Repair Manual

$

$

Currently unavailable
