01-14E801 (E-141) - Toro Garden Tractor (1983) DRIVE MOTOR Parts Diagram

Garden Tractor

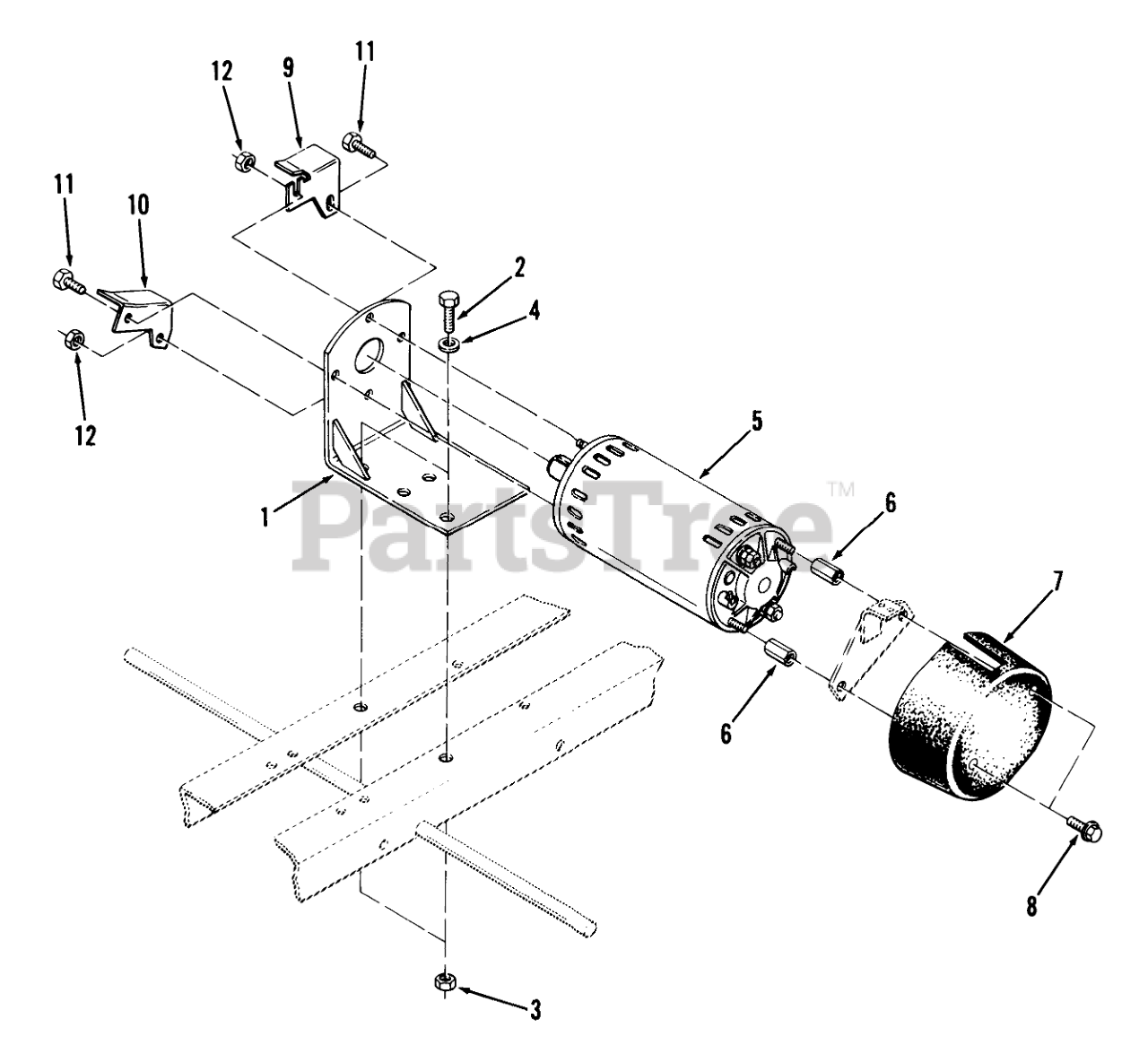

DRIVE MOTOR Parts Diagram

  • Title
1

Toro 107082

MOTOR MOUNT ASSY

$

$

Not available

2

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

3

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

4

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

5

Toro 516582

Drive Motor

$

$

Not available

6

Toro 107104

Spacer

$

$

Not available

7

Toro 107631

Motor Cover

$

$

Not available

8

Toro 960174

Whizlock Bolt 5/16-18 X 3/8

$

$

Currently unavailable

9

Toro 107107

Belt Guard-Upper

$

$

Not available

10

Toro 107106

Belt Guard-Lower

$

$

Not available

11

Toro 908016

Bolt
(Superseded to 322-2)

$2.99

$

In Stock, Qty 17

0

12

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0
