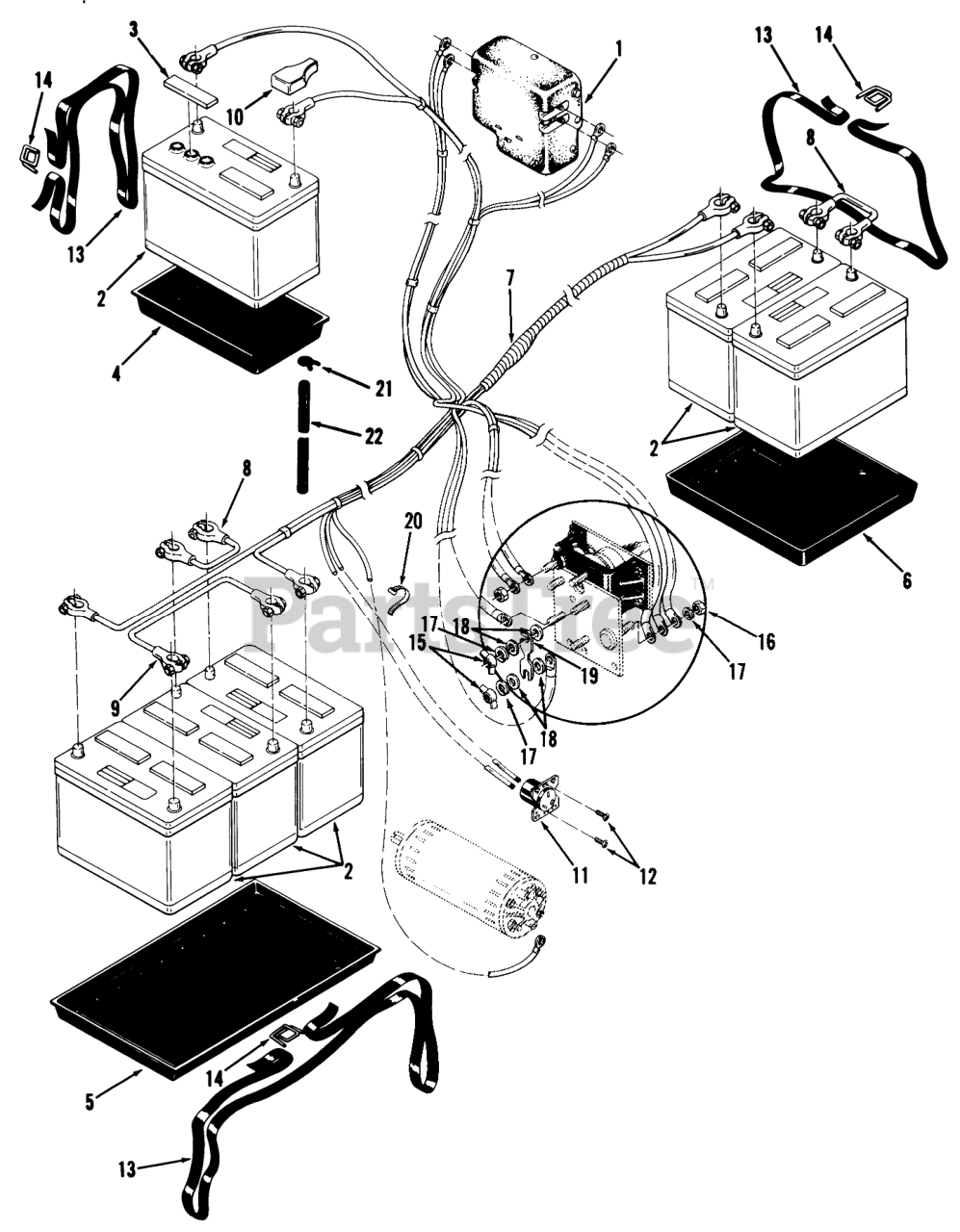

01-14E801 (E-141) - Toro Garden Tractor (1982) POWER CIRCUIT Parts Diagram

Garden Tractor

POWER CIRCUIT Parts Diagram

  • Title

1

Toro 107109

Control Box

$

$

Not available

2

Toro 107111

Battery

$

$

Not available

3

Toro 107167

Battery Cap

$

$

Currently unavailable

4

Toro 107113

Battery Tray-Upper

$

$

Not available

5

Toro 107114

TRAY-BATTERY

$

$

Not available

6

Toro 523332

Battery Tray-Rear

$

$

Not available

7

Toro 107621

Wiring Harness-Power Circuit

$

$

Not available

8

Toro 516380

Battery Cable Assembly

$

$

Not available

9

Toro 516389

Battery Cable-Long Jumper

$

$

Not available

10

Toro 516333

Terminal Cover
(Superseded to 107383)

$

$

Not available

11

Toro 518108

PTO Outlet

$

$

Not available

12

Toro 913408

S.T. Screw #8-32 X 1/2

$

$

Currently unavailable

13

Plastic Banding (17 Ft.)

Note: OBTAIN PLASTIC BANDING LOCALLY (Use "Signode" Plypropylene Plastic "Contrax" Banding-716 or Equivalent (7/16" Wide); Rated Strength 500 Lbs. NON NYLON)

$

$

Not available

14

Toro 107127

CLIP-STRAP

$

$

Not available

15

Toro 915584

Wing Nut 1/4-20

$

$

Not available

16

Toro 513405

Nut, 1/4-20

$

$

Currently unavailable

17

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

18

Toro 513453

Washer 1/4

$

$

Currently unavailable

19

Toro 107126

FUSE-MAIN (125 AMP)

$

$

Not available

20

Toro 100571

PLASTIC TIE

$

$

Not available

21

Toro 950154

Clamp

$

$

Not available

22

Toro 101338

FUEL HOSE 13" OF 6554

$

$

Not available
