01-14E801 (E-141) - Toro Garden Tractor (1981) POWER DISCONNECT ASSEMBLY Parts Diagram

Garden Tractor

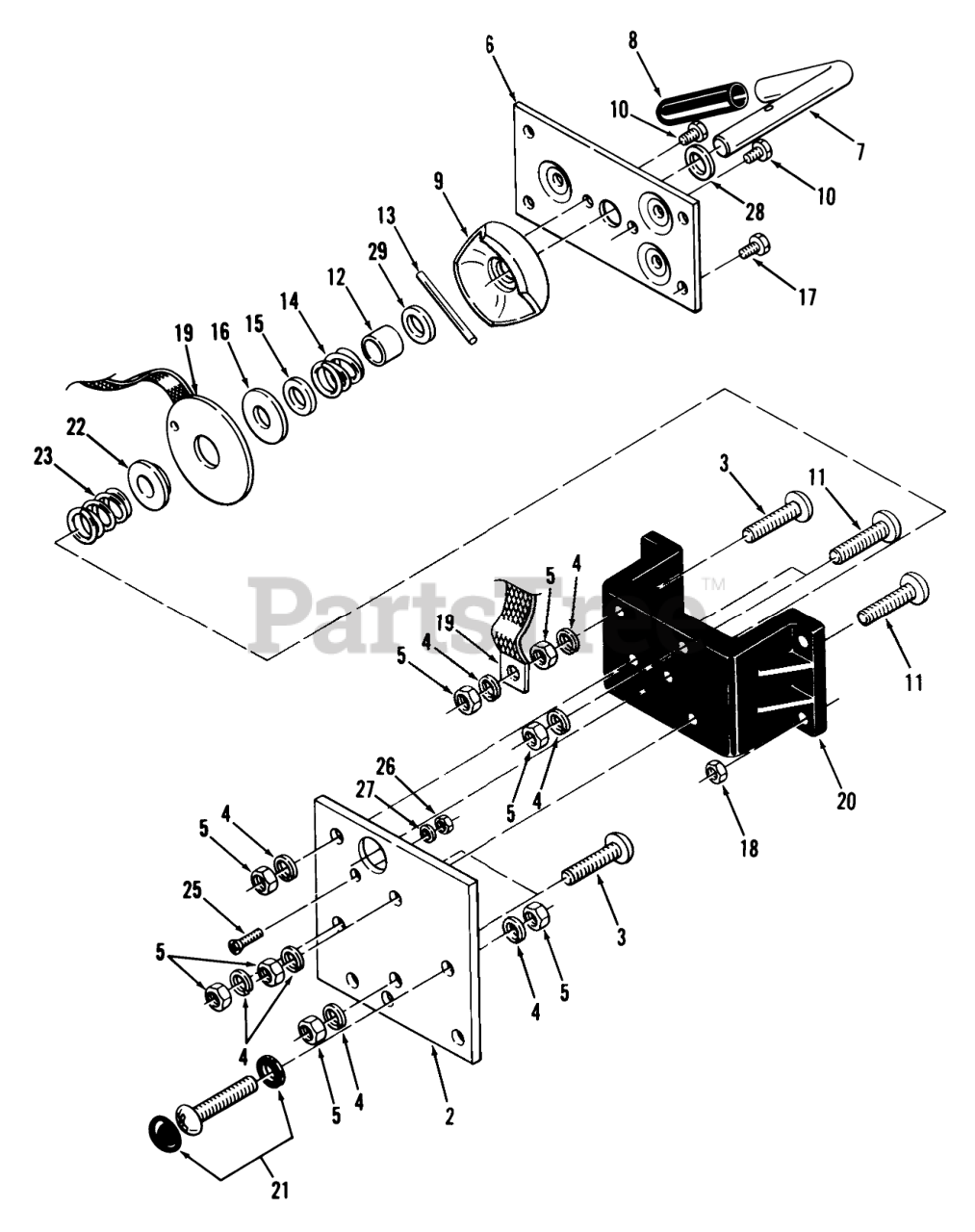

POWER DISCONNECT ASSEMBLY Parts Diagram

  • Title

1

Toro 107108

Power Disconnect Assembly

$

$

Not available

2

Toro 107163

Terminal Block

$

$

Not available

3

Toro 513736

Screw 1/4-20 X 3/4 Brass

$

$

Not available

4

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

5

Toro 513405

Nut, 1/4-20

$

$

Currently unavailable

6

Toro 107377

Disconnect Plate

$

$

Currently unavailable

7

Toro 518251

Switch Handle

$

$

Not available

8

Toro 519189

Hand Grip

$

$

Not available

9

Toro 107165

Plastic Cam

$

$

Currently unavailable

10

Toro 913252

Self Tapping Screw #6 X 3/8

$

$

Not available

11

Toro 517802

Bolt, Copper Contact

$

$

Currently unavailable

12

Toro 523169

Sleeve

$

$

Not available

13

Toro 933160

ROLL PIN 1/8 X 1 1/2

$

$

Not available

14

Toro 517808

Spring

$

$

Not available

15

Toro 513457

Washer
(Superseded to 920008)

$0.99

$

In Stock, Qty 8

0

16

Toro 517803

Fiber Washer

$

$

Not available

17

Toro 910764

Screw 6-32 X 1/2

$

$

Currently unavailable

18

Toro 915534

Nut #4-40

$

$

Not available

19

Toro 107166

Contact Disc

$

$

Not available

20

Toro 523152

Switch Housing

$

$

Not available

21

Toro 107172

Plastic Cover & Washer

$

$

Not available

22

Toro 517801

Fiber Bushing

$

$

Not available

23

Toro 517809

SPRING

$

$

Not available

25

Toro 910478

Screw
(Superseded to 9104784)

$1.99

$

Usually ships in 3-6 days

0

26

Toro 915534

Nut #4-40

$

$

Not available

27

Toro 920075

#4 Lockwasher

$

$

Not available

28

Toro 107242

Neoprene Washer 5/16

$

$

Not available

29

Toro 920083

LOCKWASHER
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 10

0
