01-14E801 (E-141) - Toro Garden Tractor (1981) CONTROL CIRCUIT Parts Diagram

Garden Tractor

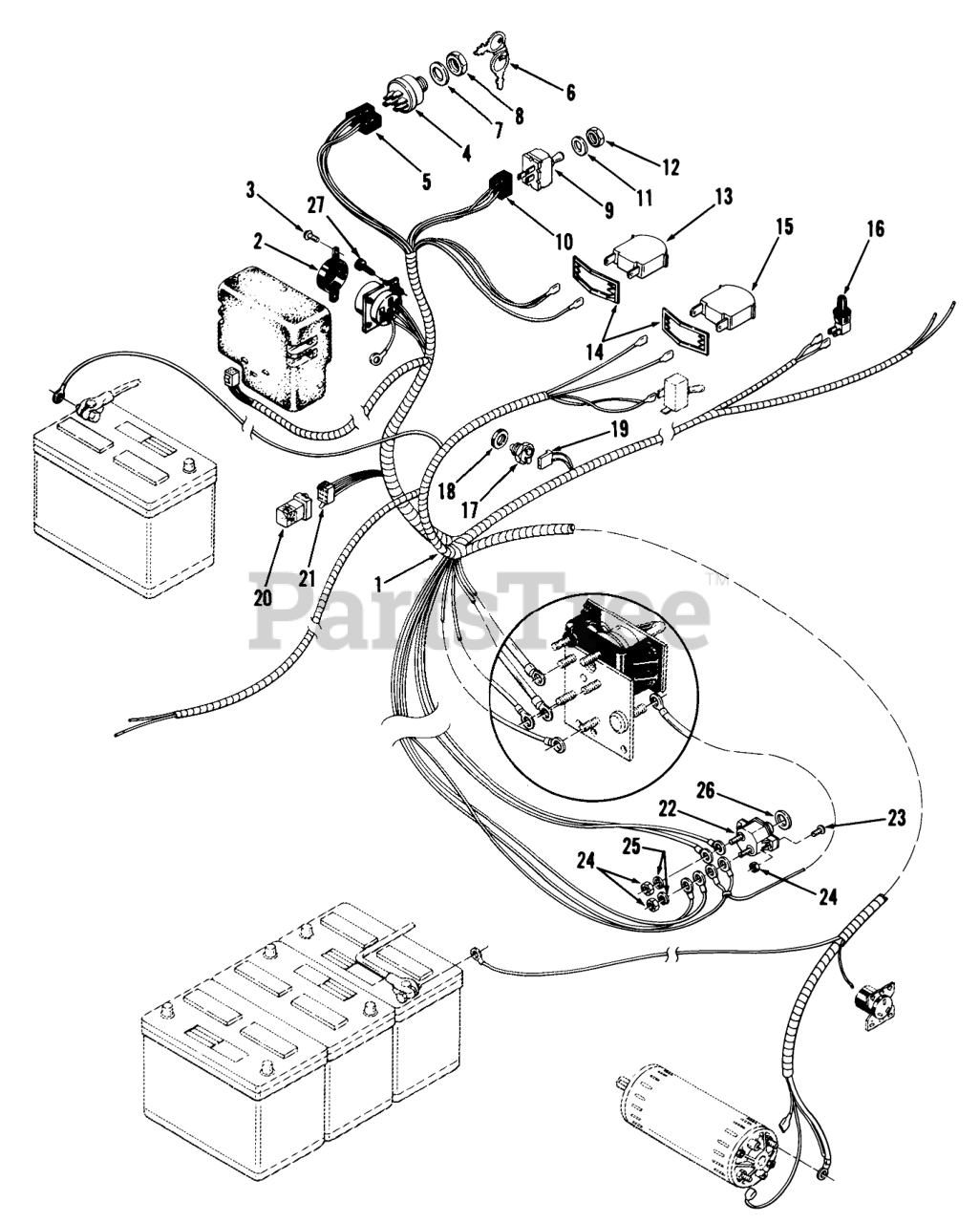

CONTROL CIRCUIT Parts Diagram

  • Title

1

Toro 107622

Wiring Harness-Control Circuit

$

$

Not available

2

Toro 107247

Charger Receptacle Cover

$

$

Not available

3

Toro 100609

Plate Screws

$

$

Not available

4

Toro 103990

SWITCH-IGNITION

$27.99

$

In Stock, only 4 left!

0

5

Toro 105302

CONNECTOR-5 WAY-SERV
(Superseded to 32160-014)

$5.99

$

In Stock, only 2 left!

0

6

Toro 7262

Key-EL
(Superseded to 62-7770)

$4.99

$

In Stock, only 2 left!

0

7

Toro 920160

LOCKWASHER
(Superseded to 9201604)

$0.99

$

In Stock, only 3 left!

0

8

Toro 101884

NUT

$7.49

$

In Stock, only 1 left!

0

9

Toro 104271

PTO Switch

$

$

Not available

10

Toro 107628

3-CONTACT CONNECTOR

$

$

Not available

11

Toro 920158

Lockwasher 1/2 Int. Tooth

$

$

Not available

12

Toro 104327

Nut, 1/2-27

$

$

Not available

13

Toro 104946

Fuel Level Meter

$

$

Not available

14

Toro 104947

Clip

$

$

Not available

15

Toro 107102

Battery Balance Meter

$

$

Not available

16

Toro 107072

SWITCH-SEAT

$

$

Not available

17

Toro 105877

SWITCH-INTERLOK CLUT
(Superseded to 38-0430)

$61.99

$

Usually ships in 3-6 days

0

18

Toro 102277

NUT-SPECIAL 9/16-18

$

$

Not available

19

Toro 106771

CONNECTOR BODY

$

$

Not available

20

Toro 107099

Resistor Module

$

$

Not available

21

Toro 518097

Socket Housing

$

$

Not available

22

Toro 518390

Circuit Breaker

$

$

Not available

23

Toro 911756

Screw #10-32 X 5/8 Sems

$

$

Currently unavailable

24

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

25

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

26

Toro 107242

Neoprene Washer 5/16

$

$

Not available

27

Toro 913258

S.T. Screw #8-32 x 1/2

$

$

Not available
