01-12KE01 (C-125) - Toro Garden Tractor (1980) SHEET METAL AND COVERS Parts Diagram

Garden Tractor

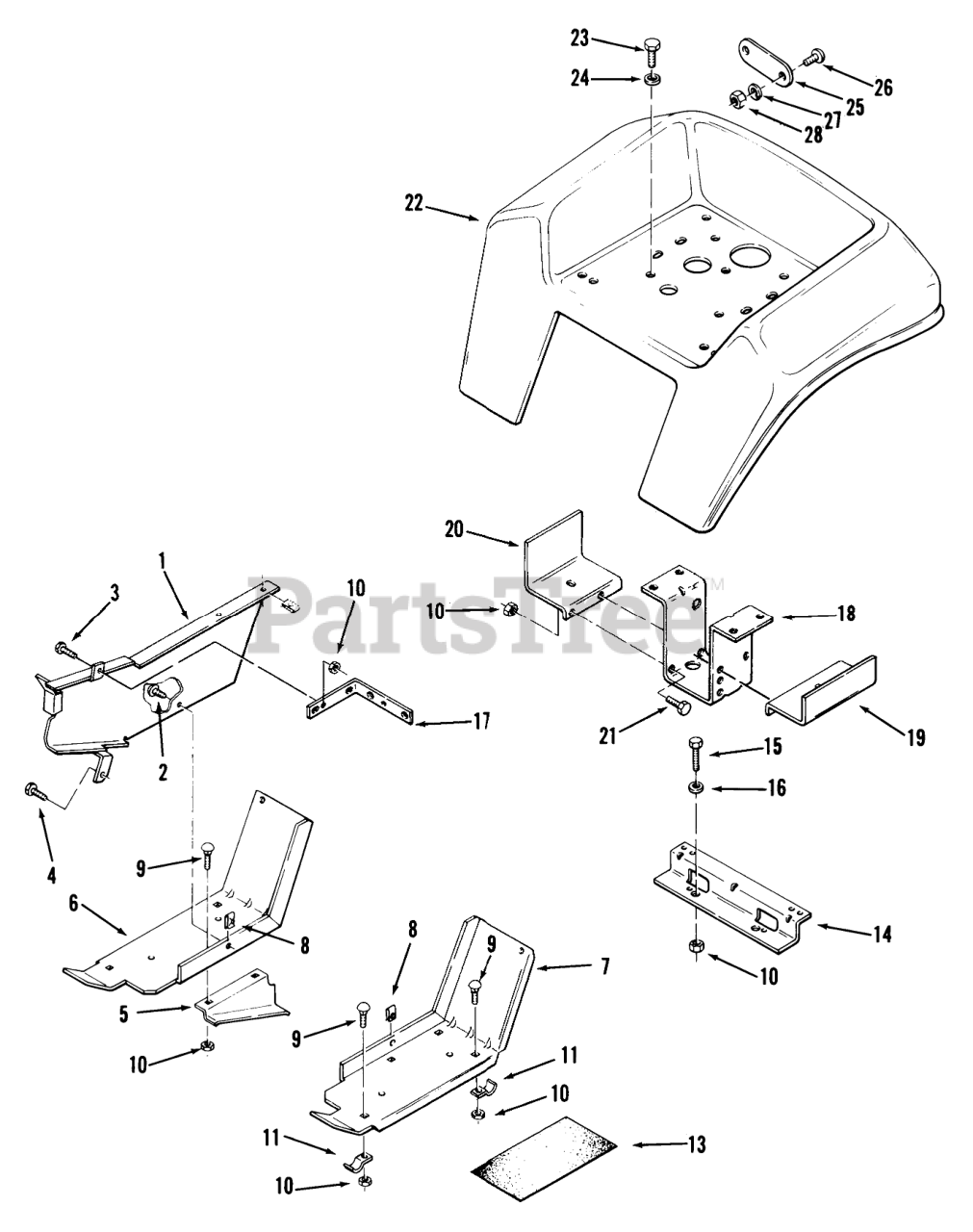

SHEET METAL AND COVERS Parts Diagram

  • Title
1

Toro 107619

ASSY-BELT GUARD 8 R

$

$

Not available

1

Toro 107975

Belt Guard
(Superseded to 95-7695-01)

$

$

Not available

2

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

3

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

4

Toro 926694

SCREW

$

$

Not available

6

Toro 106222

Footrest-RH
(Superseded to 106222-01)

$

$

Not available

7

Toro 106223

FOOTREST LH R

$

$

Not available

8

$2.99

$

In Stock, Qty 20+

0

10

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

11

Toro 7456

BRACKET

$

$

Not available

13

Toro 106264

PAD-FOOTREST

$45.99

$

In Stock, only 2 left!

0

14

Toro 107951

BRACKET-FENDER B
(Superseded to 95-7665-03)

$65.99

$

In Stock, only 1 left!

0

15

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

16

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

17

Toro 108823

SUPPORT-BELT GUAR B

$

$

Not available

17

Toro 108824

Support Bracket-Belt Guard C-175 Twin Only
(Superseded to 109554)

$

$

Not available

18

Toro 108127

Fender Support Bracket
(Superseded to 79-4990-03)

$126.99

$

Usually ships in 3-6 days

0

19

Toro 108464

Fuel Tank Support LH
(Superseded to 108464-03)

$38.99

$

Usually ships in 3-6 days

0

20

Toro 106236

Support-FueITank RH
(Superseded to 94-6692-03)

$53.99

$

Usually ships in 3-6 days

0

21

Toro 908016

Bolt
(Superseded to 322-2)

$2.99

$

In Stock, Qty 17

0

22

Toro 107795

Fender
(Superseded to 99-5364)

$

$

Not available

23

Toro 926698

Bolt
(Superseded to 9266984)

$

$

Not available

24

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

25

Toro 106557

REFLECTOR-STICK ON

$

$

Not available

26

Toro 910808

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

27

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

28

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

5

Toro 106352

GUID-LOWER BLTR
(Superseded to 106352-01)

$21.99

$

Usually ships in 3-6 days

0

9

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

18

Toro 108617

Fender Support Bracket
(Superseded to 79-4990-03)

$126.99

$

Usually ships in 3-6 days

0
