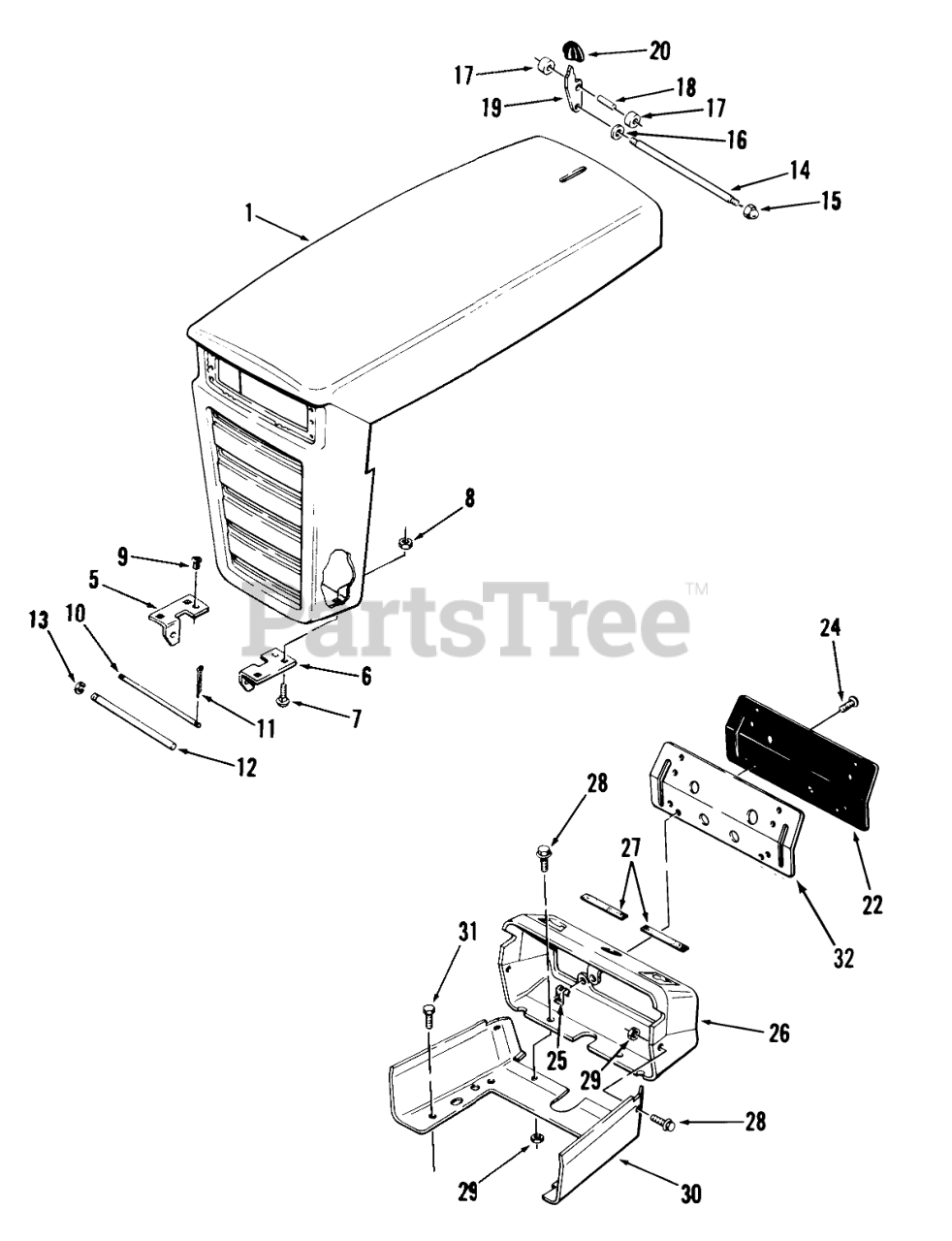

01-11BH01 (SB-421) - Toro Garden Tractor (1982) SHEET METAL AND COVERS Parts Diagram

Garden Tractor

SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 108271

Hood

$

$

Not available

1

Toro 9699

Hood
(Superseded to 114289)

$

$

Not available

5

Toro 101732

GRILL PIVOT BRKT

$

$

Not available

6

Toro 101733

Bracket-Grille-L.H.

$

$

Not available

7

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

8

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

9

Toro 5667

GROMMET

$4.99

$

In Stock, Qty 5

0

10

Toro 101850

ROD-HOOD STOP

$21.99

$

Usually ships in 3-6 days

0

11

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

12

Toro 101710

GRILL PIVOT ROD

$

$

Not available

13

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

14

Toro 5522

Rod Latch
(Superseded to 88-2090)

$

$

Not available

15

Toro 915932

USE 915932P NUT

$8.49

$

Usually ships in 3-6 days

0

16

Toro 5466

SPEED NUT

$

$

Not available

17

Toro 5468

Roller

$

$

Not available

18

Toro 933182

SPIROL PIN

$

$

Not available

19

Toro 5467

LEVER HOOD LATCH

$174.99

$

Usually ships in 3-6 days

0

20

Toro 5469

KNOB

$4.49

$

Usually ships in 3-6 days

0

22

Toro 108915

Control Panel

$

$

Not available

22

Toro 101841

BACK UP PLATE

$

$

Not available

24

Toro 102168

SCREW BLACK

$

$

Not available

25

Toro 108135

SPEED NUT

$

$

Not available

26

Toro 106442

HOUSING-CONTL PANEL

$

$

Not available

27

Toro 106772

EDGE TRIM 4IN OF 102896

$

$

Not available

28

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

29

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

30

Toro 106443

EXTENSION-HSG CON R

$

$

Not available

31

Toro 926694

SCREW

$

$

Not available

32

Toro 106134

PLATE-DASH INSTRUMNT

$

$

Not available
