01-11B804 (GT-2500) - Toro Garden Tractor (1981) WHEELS AND TIRES Parts Diagram

Garden Tractor

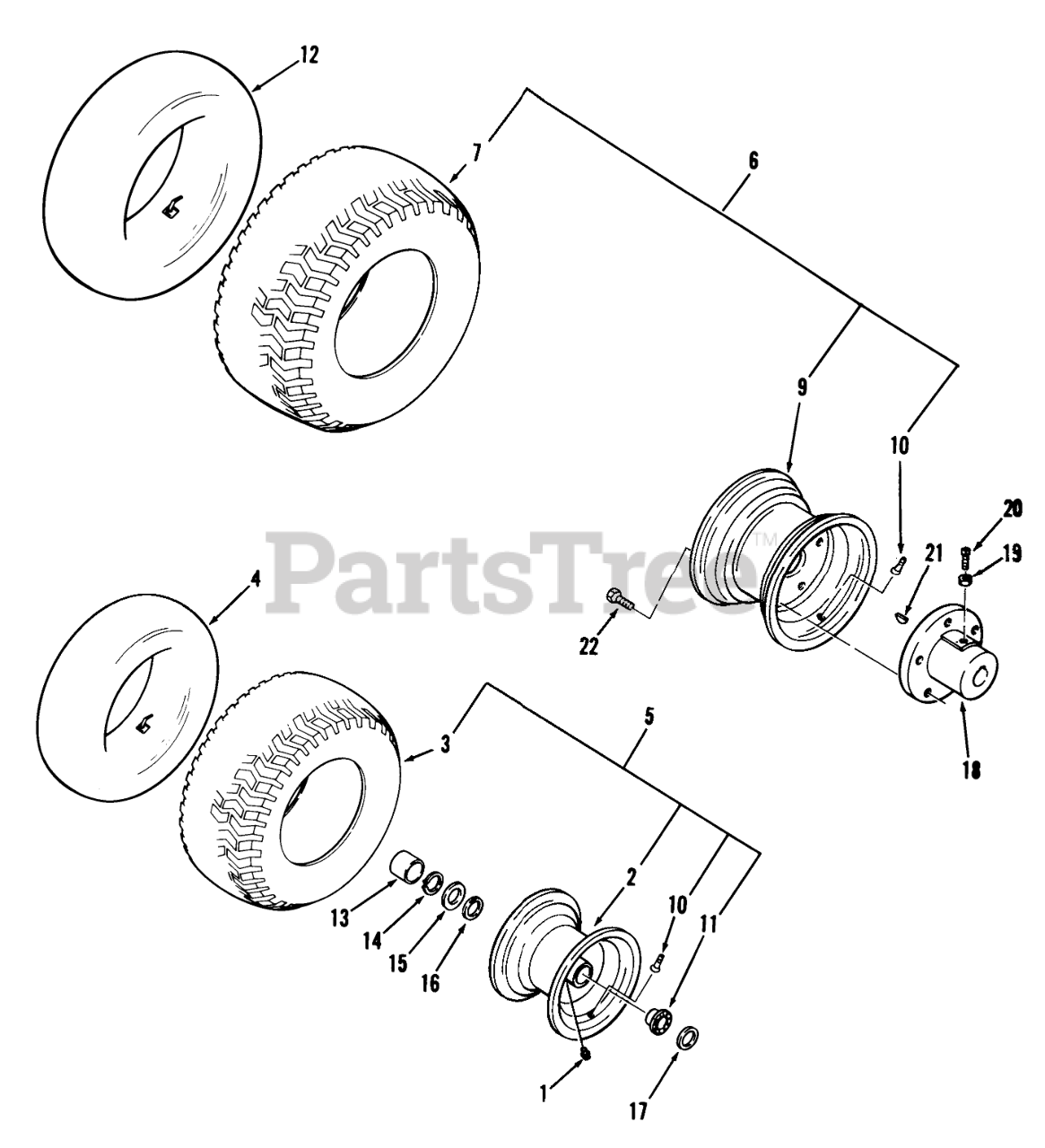

WHEELS AND TIRES Parts Diagram

  • Title
1

Toro 1030

Zerk

$

$

Not available

2

Toro 109256

Front Wheel
(Superseded to 105882)

$

$

Not available

3

Toro 108769

Front Tire 16 x 6.50-8

$

$

Not available

4

Toro 105293

TUBE-INNER
(Superseded to 11-2819)

$

$

Not available

5

Toro 109255

Wheel & Tire Assy-Front

$

$

Not available

6

Toro 109253

Wheel & Tire Assy-Rear

$

$

Not available

7

Toro 100772

TIRE 22 X 7.50-12

$

$

Not available

9

Toro 109254

Rear Wheel

$

$

Currently unavailable

10

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

11

Toro 108483

Ball Bearing
(Superseded to 110513)

$21.99

$

In Stock, only 3 left!

0

12

Toro 1654

INNER TUBE

$

$

Not available

13

Toro 109154

HUB CAP-FLAT BLACK

$

$

Not available

14

Toro 104822

Snap Ring
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

15

Toro 109114

WASHER-WHEEL

$3.99

$

In Stock, only 2 left!

0

16

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

17

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 7

0

18

Toro 105762

Hub-Rear
(Superseded to 93-3659-03)

$171.99

$

Usually ships in 3-6 days

0

19

Toro 915236

Nut
(Superseded to 9152366)

$3.49

$

In Stock, only 1 left!

0

20

Toro 909554

Screw-Set
(Superseded to 3243-5)

$2.99

$

In Stock, Qty 13

0

21

Toro 937097

WOODRUFF KEY

$

$

Not available

22

Toro 1004

Lug Nut

$

$

Not available
