01-11B804 (GT-2500) - Toro Garden Tractor (1981) SINGLE CYLINDER ENGINE Parts Diagram

Garden Tractor

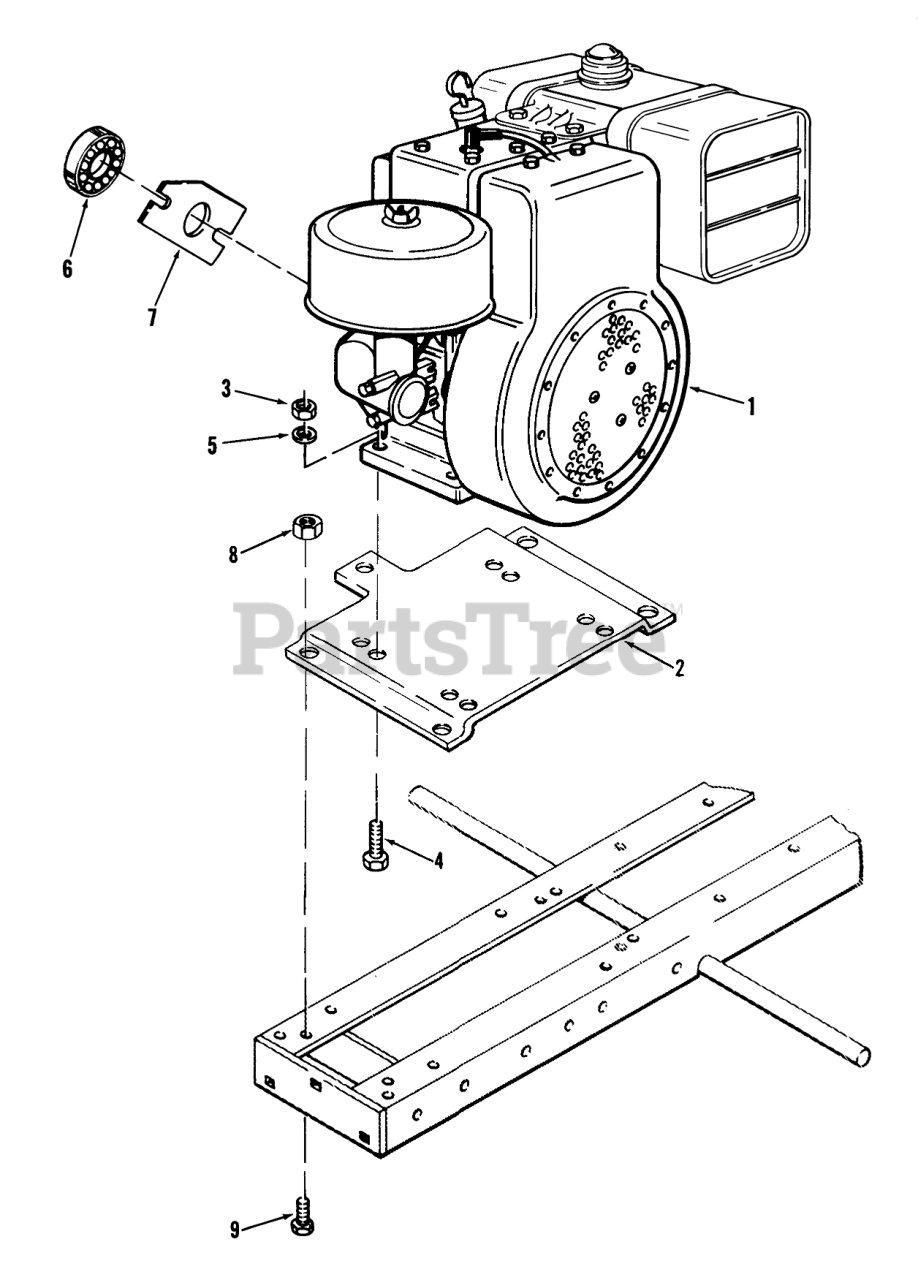

SINGLE CYLINDER ENGINE Parts Diagram

  • Title
1

Toro 108624

Engine-11 HP Briggs & Stratton 252417 Type 0245-01

Note: Engines and Engine Parts are available through the Engine Manufacturer-s Distribution System, using the Model and Spec. Numbers Shown Above.

$

$

Currently unavailable

2

Toro 108615

Engine Cradle
(Superseded to 110065)

$

$

Not available

3

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

4

Toro 908022

HHCS
(Superseded to 322-9)

$3.49

$

In Stock, only 3 left!

0

5

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

6

Toro 106499

BEARING-BALL

$

$

Not available

7

Toro 108074

PLATE-THRUST B
(Superseded to 108074-03)

$

$

Not available

8

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

9

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0
