01-11B804 (GT-2500) - Toro Garden Tractor (1981) FUEL AND EXHAUST SYSTEM Parts Diagram

Garden Tractor

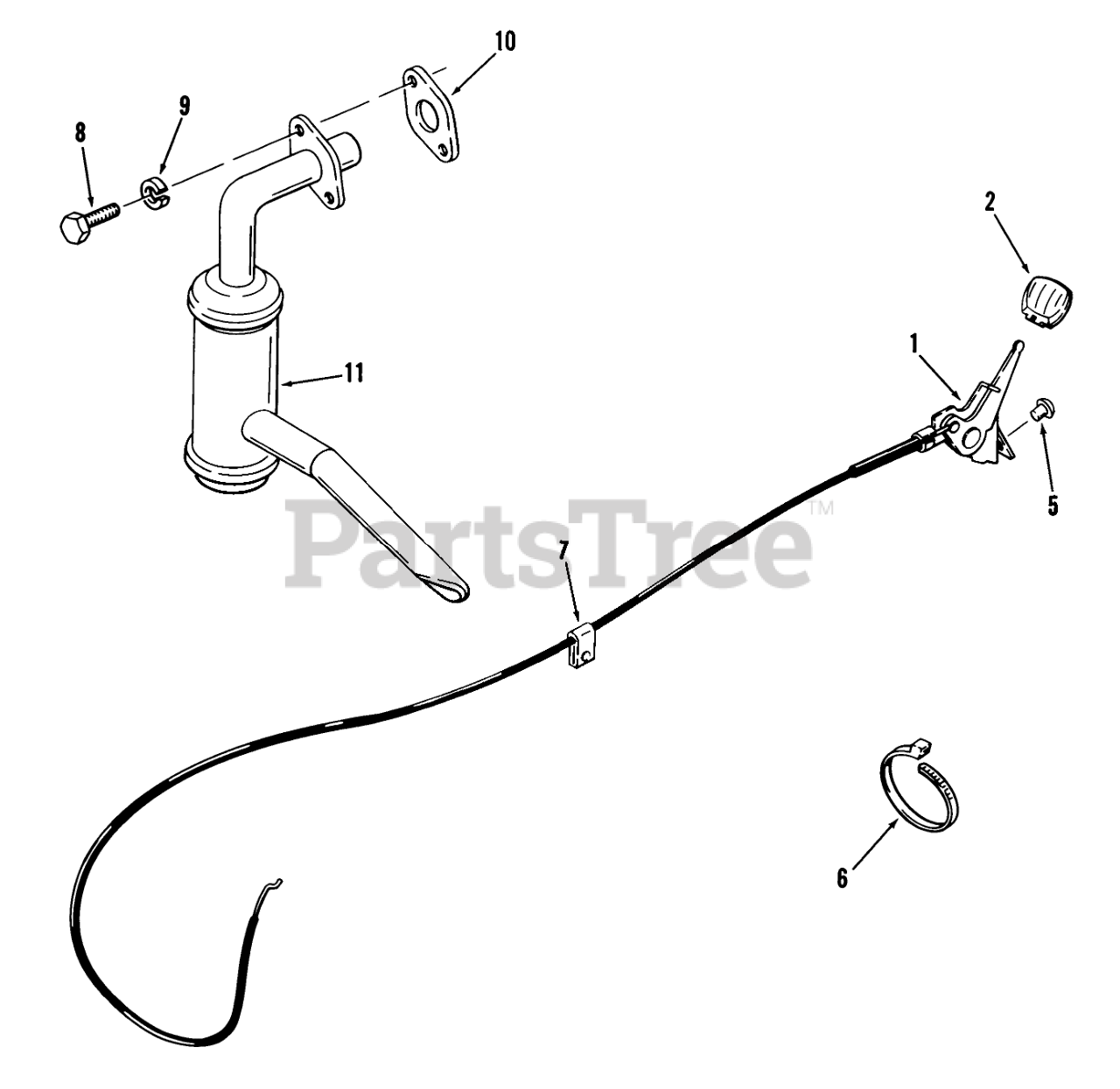

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title
1

Toro 109130

CHOKE & THROTTLE CON

$

$

Not available

2

Toro 108917

KNOB-THROTTLE

$3.49

$

In Stock, only 1 left!

0

5

Toro 932795

Pip Rivet

$

$

Currently unavailable

6

Toro 100571

PLASTIC TIE

$

$

Not available

7

Toro 100729

THROTTLE CONTROL CLP

$6.99

$

Usually ships in 3-6 days

0

8

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

9

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

10

Toro 107763

Gasket Exhaust

$

$

Not available

11

Toro 108626

Muffler

$

$

Not available
