01-11B803 (1100) - Toro Special Garden Tractor (1980) SHEET METAL AND COVERS Parts Diagram

Special Garden Tractor

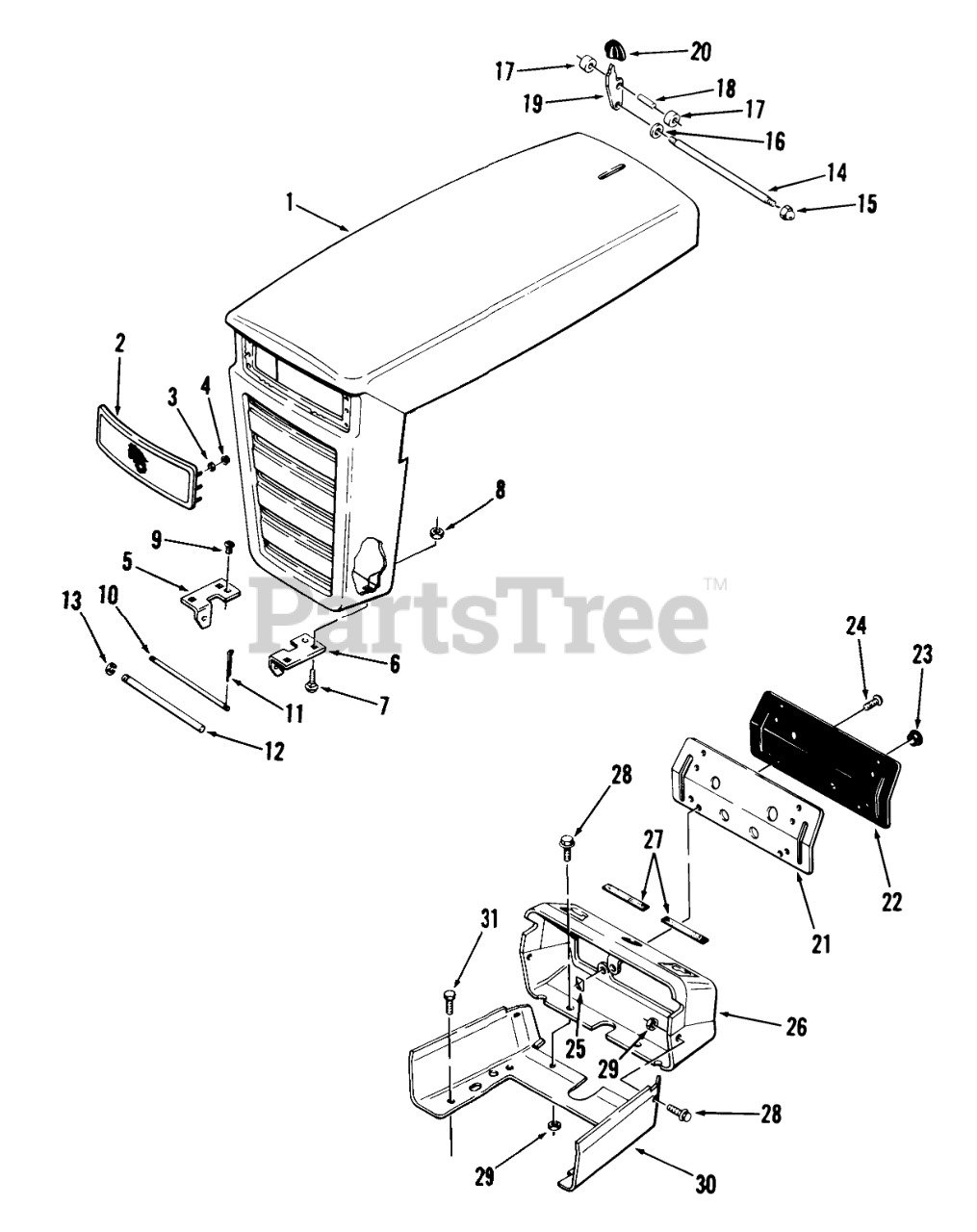

SHEET METAL AND COVERS Parts Diagram

  • Title
1

$

$

Not available

2

Toro 7416

ESCUTCHEON PLATE

$

$

Not available

3

Toro 100646

WASHER

$

$

Not available

4

Toro 7721

SPEED NUT

$1.99

$

Usually ships in 3-6 days

0

5

Toro 101732

GRILL PIVOT BRKT

$

$

Not available

6

Toro 101733

Bracket-Grille-L.H.

$

$

Not available

7

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

8

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

9

Toro 5667

GROMMET

$4.99

$

In Stock, Qty 5

0

10

Toro 101850

ROD-HOOD STOP

$21.99

$

Usually ships in 3-6 days

0

11

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

12

Toro 101710

GRILL PIVOT ROD

$

$

Not available

13

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

14

Toro 5522

Rod Latch
(Superseded to 88-2090)

$

$

Not available

15

Toro 915932

USE 915932P NUT

$8.49

$

Usually ships in 3-6 days

0

16

Toro 5466

SPEED NUT

$

$

Not available

17

Toro 5468

Roller

$

$

Not available

18

Toro 933182

SPIROL PIN

$

$

Not available

19

Toro 5467

LEVER HOOD LATCH

$174.99

$

Usually ships in 3-6 days

0

20

Toro 5469

KNOB

$4.49

$

In Stock, only 1 left!

0

21

Toro 101841

BACK UP PLATE

$

$

Not available

22

Toro 106134

PLATE-DASH INSTRUMNT

$

$

Not available

23

Toro 104868

PLUG BUTTON

$

$

Not available

24

Toro 102168

SCREW BLACK

$

$

Not available

25

Toro 5442

SPEED NUT

$

$

Not available

26

Toro 106442

HOUSING-CONTL PANEL

$

$

Not available

26

Toro 910808

Screw
(Superseded to 3250-25)

$0.99

$

Usually ships in 3-6 days

0

27

Toro 106772

EDGE TRIM 4IN OF 102896

$

$

Not available

27

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

28

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

28

Toro 915551

Nut
(Superseded to 3219-14)

$0.99

$

In Stock, only 1 left!

0

29

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

30

Toro 106443

EXTENSION-HSG CON R

$

$

Not available
