01-11B803 (1100) - Toro Special Garden Tractor (1980) MECHANICAL TRANSMISSION-8 SPEED Parts Diagram

Special Garden Tractor

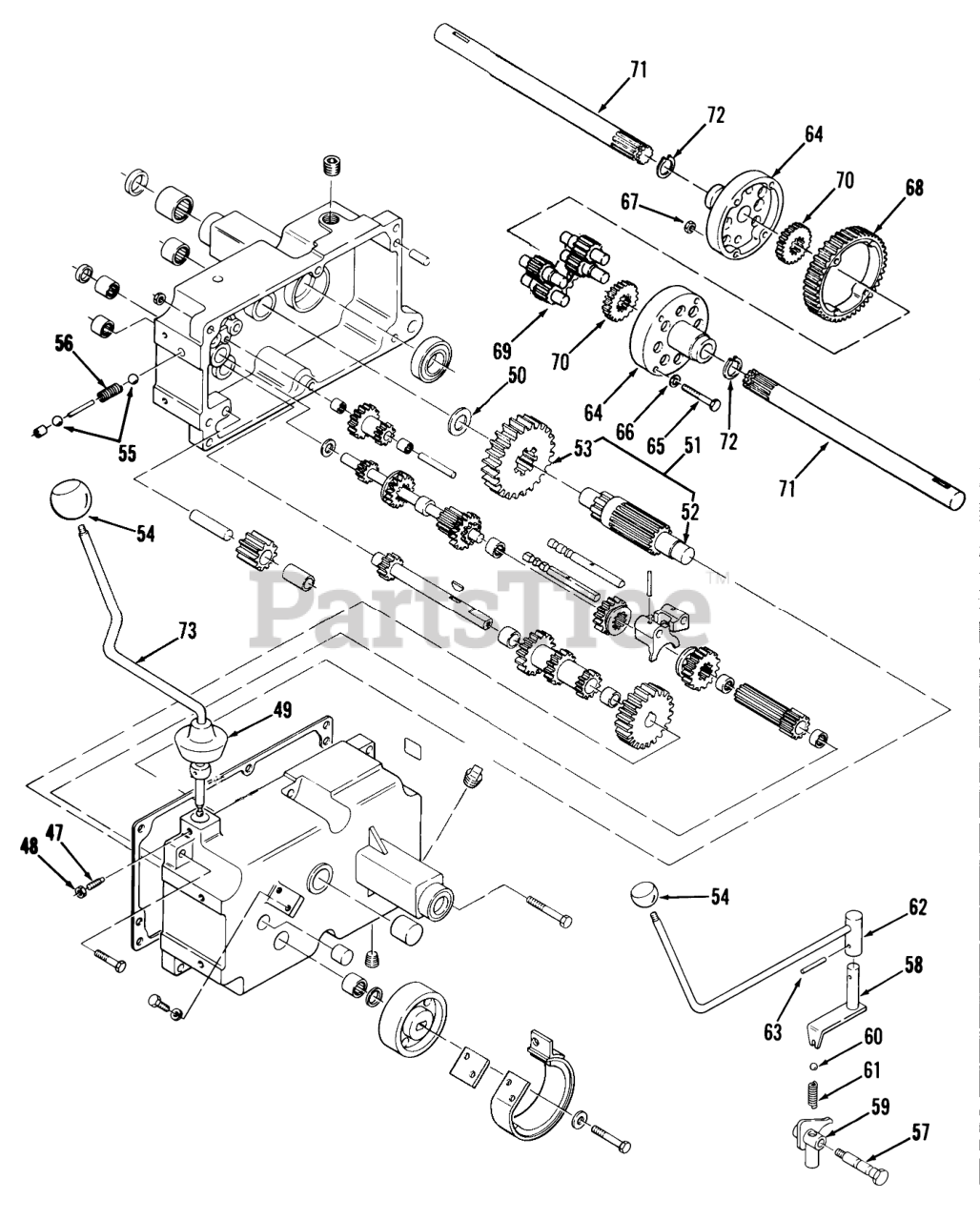

MECHANICAL TRANSMISSION-8 SPEED Parts Diagram

  • Title

47

Toro 1239

SETSCREW

$10.99

$

In Stock, Qty 7

0

48

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

49

Toro 3577

COVER-DUST

$

$

Not available

50

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

51

Toro 102974

GEAR ASM

$

$

Not available

52

Toro 101625

PINION SHAFT

$

$

Not available

53

Toro 101626

GEAR

$

$

Not available

54

Toro 102871

SHIFT KNOB

Note: LATER MODELS USE ROUND SHIFT KNOB-108758 (GEAR SHIFT), AND 1001 (HI-LO RANGE).

$

$

Not available

55

Toro 3517

BALL-DETENT

$0.99

$

In Stock, Qty 5

0

56

Toro 106030

SPRING-SHIFT STOP

$2.99

$

In Stock, only 3 left!

0

57

Toro 7213

BOLT-DETENT

$54.99

$

Usually ships in 3-6 days

0

58

Toro 7214

SHIFT ASM

$46.99

$

Usually ships in 3-6 days

0

59

Toro 7209

Shift Fork
(Superseded to 116636-03)

$

$

Not available

60

Toro 3517

BALL-DETENT

$0.99

$

In Stock, Qty 5

0

61

Toro 106030

SPRING-SHIFT STOP

$2.99

$

In Stock, only 3 left!

0

62

Toro 106366

Shift Lever HI-Low Range
(Superseded to 110727)

$93.99

$

Usually ships in 3-6 days

0

63

Toro 933184

PIN-SPIROL

$1.49

$

In Stock, Qty 8

0

64

Toro 105062

CASE-DIFFERENTIAL

$143.99

$

Usually ships in 3-6 days

0

65

Toro 908138

Bolt 3/8-16 x 3 1/4
(Superseded to 323-20)

$3.49

$

In Stock, only 2 left!

0

66

Toro 107374

WASHER

$0.99

$

In Stock, Qty 6

0

67

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

68

Toro 105063

DIFFERENTIAL BULL GR

$

$

Not available

69

Toro 101623

GEAR-PINION, 11T

$116.99

$

Usually ships in 3-6 days

0

70

Toro 3908

AXLE GEAR

$177.99

$

Usually ships in 3-6 days

0

71

Toro 101880

AXLE

$

$

Not available

72

Toro 7939

Snap Ring
(Superseded to 32151-36)

$4.99

$

In Stock, only 4 left!

0

73

Toro 107595

Gear Shift Lever
(Superseded to 95-7684)

$200.99

$

In Stock, only 1 left!

0
