01-11B803 (1100) - Toro Special Garden Tractor (1980) CLUTCH, BRAKE AND SPEED CONTROL LINKAGE Parts Diagram

Special Garden Tractor

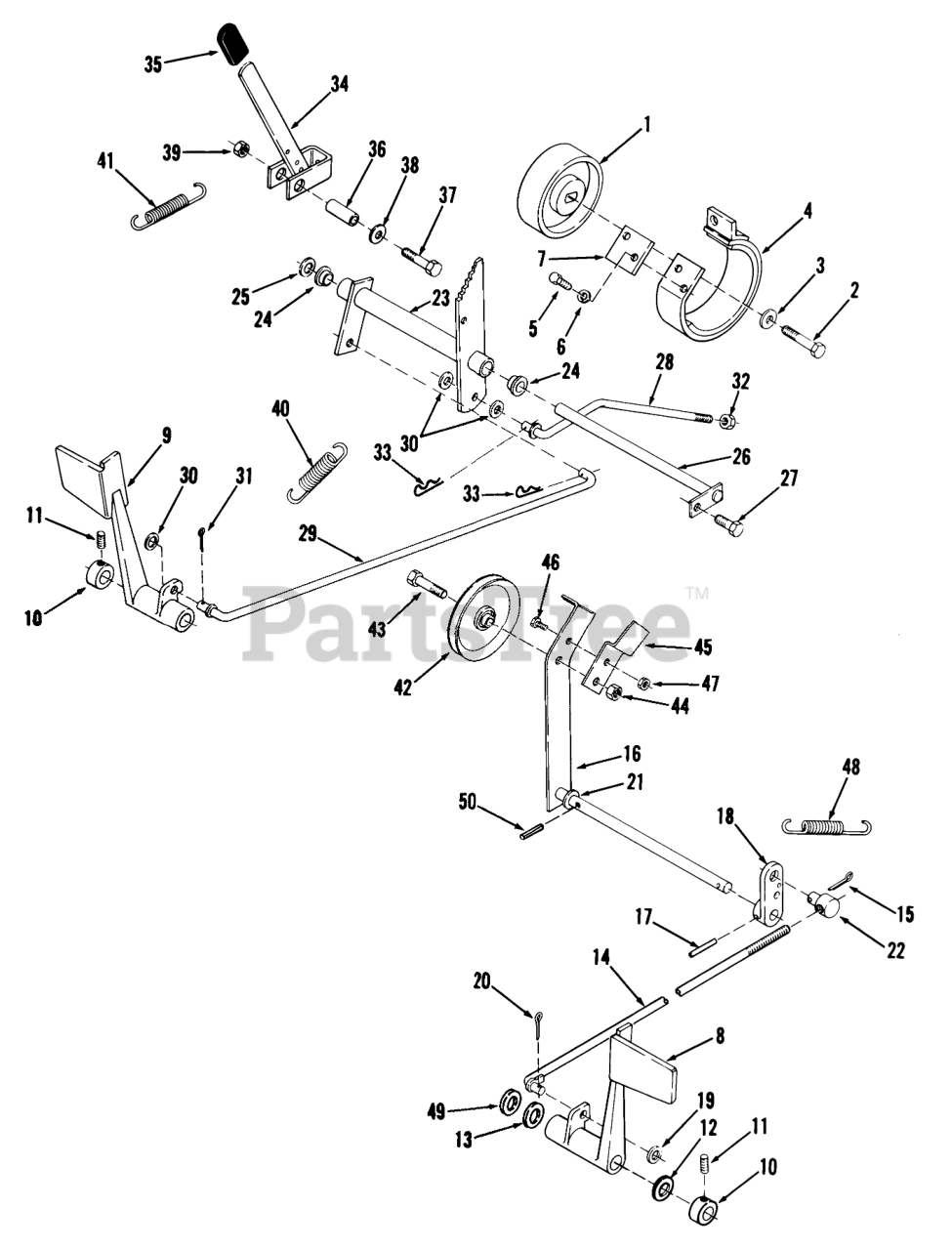

CLUTCH, BRAKE AND SPEED CONTROL LINKAGE Parts Diagram

  • Title

1

Toro 106719

DRUM-BRAKE

$106.99

$

Usually ships in 3-6 days

0

2

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, only 3 left!

0

3

Toro 2844

WASHER

$2.99

$

In Stock, Qty 18

0

4

Toro 9593

BRAKE BAND ASM

$151.99

$

In Stock, only 4 left!

0

5

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

6

Toro 920081

Washer
(Superseded to 325-33)

$13.99

$

In Stock, only 4 left!

0

7

Toro 9598

Plate-Stop
(Superseded to 94-6696-03)

$9.49

$

Usually ships in 3-6 days

0

8

Toro 103599

Clutch Pedal

$

$

Not available

9

Toro 103323

PEDAL-BRAKE R

$

$

Not available

10

Toro 1085

Collar
(Superseded to 83-2770)

$

$

Not available

11

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

12

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, only 1 left!

0

13

Toro 1278

WASHER

$2.99

$

In Stock, Qty 5

0

14

Toro 103347

ROD AND GUIDE ASM

$50.99

$

Usually ships in 3-6 days

0

15

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

16

Toro 107977

Clutch Idler Arm

$

$

Not available

17

Toro 933190

PIN-SPIROL

$

$

Not available

18

Toro 105896

Arm-Clutch Rod
(Superseded to 105896-03)

$55.99

$

In Stock, only 2 left!

0

19

Toro 920248

WASHER-NYLON

$0.99

$

Usually ships in 3-6 days

0

20

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

21

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

22

Toro 101161

TRUNNION

$

$

Not available

23

Toro 103543

Bellcrank Assy
(Superseded to 103543-03)

$

$

Not available

24

Toro 7879

BUSHING-FLANGED

$24.99

$

In Stock, only 2 left!

0

25

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

26

Toro 106417

ROD ASM

$

$

Not available

27

Toro 926694

SCREW

$

$

Not available

28

Toro 105900

ROD-REAR BRAKE

$51.99

$

Usually ships in 3-6 days

0

29

Toro 105886

ROD

$

$

Not available

30

Toro 920248

WASHER-NYLON

$0.99

$

Usually ships in 3-6 days

0

31

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

32

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

33

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 13

0

34

Toro 106451

ASSY-BRAKE LEVER WAB
(Superseded to 106451-03)

$

$

Not available

35

Toro 6820

GRIP

$2.49

$

In Stock, only 2 left!

0

36

Toro 102025

SPACER

$

$

Not available

37

Toro 908037

Bolt
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

38

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

39

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

40

Toro 107677

SPRING-BRAKE

$7.99

$

In Stock, Qty 12

0

41

Toro 103628

SPRING-EXTENSION

$12.99

$

In Stock, only 2 left!

0

42

Toro 7451

PULLEY-IDLER
(Superseded to 95-7668)

$22.99

$

In Stock, only 1 left!

0

43

Toro 106193

BOLT-SPECIAL HEX

$10.99

$

In Stock, Qty 8

0

44

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

45

Toro 106265

SWITCH-ACTUATOR

$

$

Not available

46

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

47

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

48

Toro 108035

SPRING-CLUTCH

$12.99

$

In Stock, only 2 left!

0

49

Toro 920225

Washer
(Superseded to 9202254)

$3.49

$

In Stock, only 2 left!

0

50

Toro 933267

PIN-SPIROL

$0.99

$

In Stock, Qty 11

0
