01-10K801 (C-105) - Toro Garden Tractor (1980) TRANSAXLE Parts Diagram

Garden Tractor

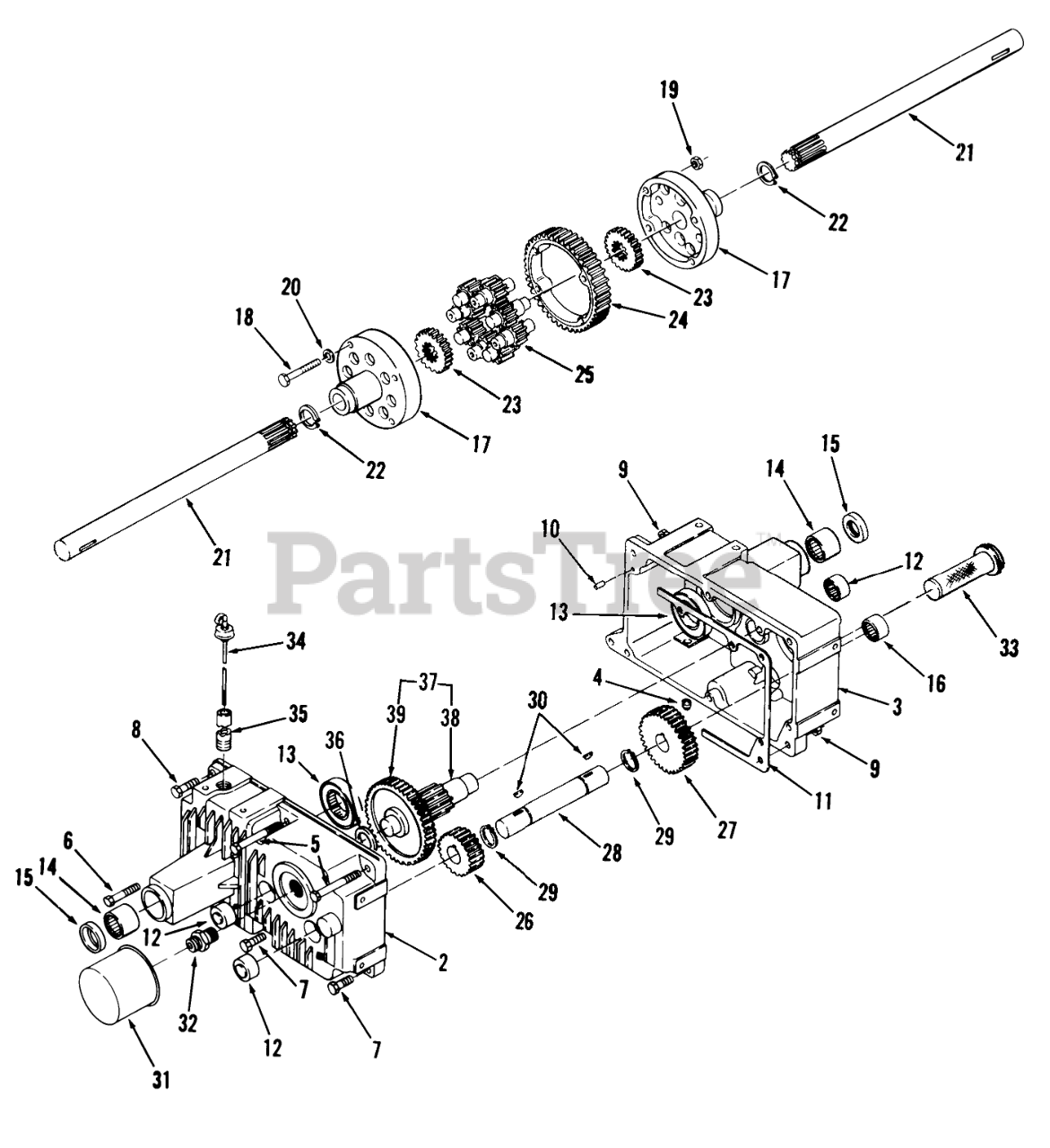

TRANSAXLE Parts Diagram

  • Title
1

Toro 106457

Transaxle Complete

$

$

Not available

2

Toro 106456

Case RH

$

$

Not available

3

Toro 106507

CASE-AUTOMATIC LH

$

$

Not available

4

Toro 943460

PLUG 1/4 PIPE ALLEN
(Superseded to 285-22)

$1.49

$

Usually ships in 3-6 days

0

5

Toro 908143

H H C S
(Superseded to 323-39)

$11.99

$

In Stock, Qty 20+

0

6

Toro 908043

HHCS
(Superseded to 323-15)

$1.99

$

In Stock, only 4 left!

0

7

Toro 908040

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

8

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

9

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

10

Toro 3915

PIN-DOWEL

$7.99

$

Usually ships in 3-6 days

0

11

Toro 5999

GASKET

$

$

Not available

12

Toro 1532

BEARING-NEEDLE

$59.99

$

In Stock, only 4 left!

0

13

Toro 1533

BALL BRG 1 1/2 I.D.

$

$

Not available

14

Toro 9416

BEARING

$81.99

$

Usually ships in 3-6 days

0

15

Toro 6449

SEAL-OIL

$24.99

$

In Stock, only 1 left!

0

16

Toro 8049

Needle Bearing
(Superseded to 5960)

$

$

Not available

17

Toro 105060

DIFFERENTIAL END CAP

$256.99

$

Usually ships in 3-6 days

0

18

Toro 911423

BOLT-HEX
(Superseded to 1-800805)

$5.49

$

In Stock, only 2 left!

0

19

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

20

Toro 107374

WASHER

$0.99

$

In Stock, Qty 6

0

21

Toro 105875

AXLE-REAR

$411.99

$

Usually ships in 3-6 days

0

22

Toro 105876

RING-SNAP

$5.99

$

In Stock, only 2 left!

0

23

Toro 101889

GEAR-AXLE DIFFERENTIAL

$

$

Not available

24

Toro 105061

GEAR-DIFFERENTIAL RING, 43T

$1209.99

$

Usually ships in 3-6 days

0

25

Toro 101623

GEAR-PINION, 11T

$116.99

$

Usually ships in 3-6 days

0

26

Toro 102782

GEAR 24T

$

$

Not available

27

Toro 101885

Gear 44T

$

$

Not available

28

Toro 5965

SHAFT GEAR

$

$

Not available

29

Toro 936131

Snap Ring
(Superseded to 32151-29)

$5.49

$

In Stock, Qty 15

0

30

Toro 937014

Key
(Superseded to 3257-5)

$5.99

$

Usually ships in 3-6 days

0

31

Toro 102819

Filter
(Superseded to 79-5270)

$21.99

$

In Stock, only 1 left!

0

32

Toro 5991

FITTING

$

$

Not available

33

Toro 106047

STRAINER

$

$

Not available

34

Toro 106446

ASSY-DIPSTICK

$

$

Not available

35

Toro 106448

NIPPLE-TRANS FILL

$

$

Not available

36

Toro 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

37

Toro 102865

GEAR ASSY

$

$

Not available

38

Toro 103395

PINION SHAFT

$

$

Not available

39

Toro 102781

Gear-42T

$

$

Not available
