01-08K803 (C-85) - Toro Garden Tractor (1982) PTO CLUTCH AND CONTROL Parts Diagram

Garden Tractor

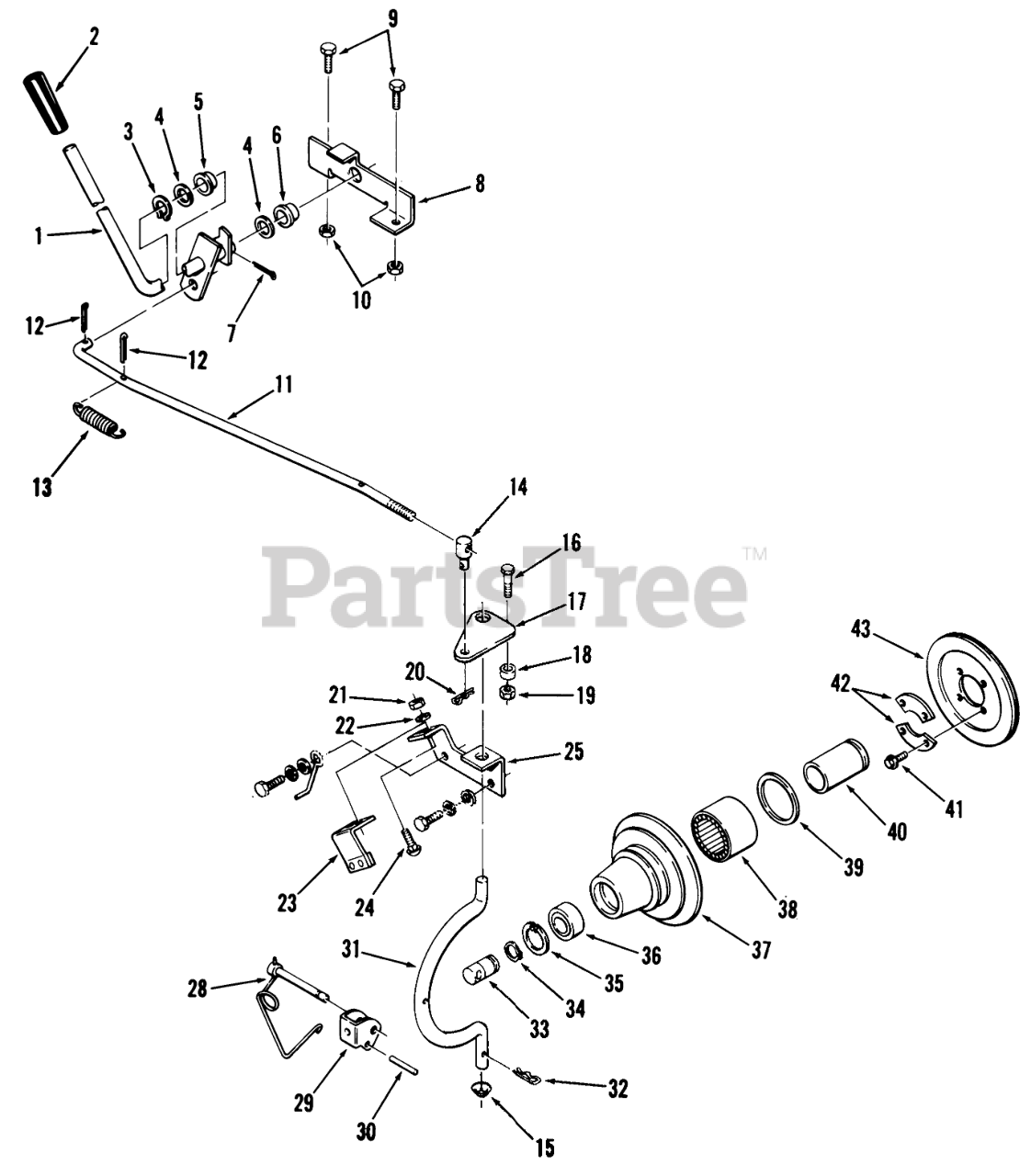

PTO CLUTCH AND CONTROL Parts Diagram

  • Title

1

Toro 109042

PTO CLUTCH LVR ASM

$

$

Not available

2

Toro 9038

GRIP

$5.99

$

In Stock, only 1 left!

0

3

Toro 106649

Grip Ring
(Superseded to 32151-11)

$10.99

$

In Stock, Qty 5

0

4

Toro 3765

SHIM-WASHER

$1.99

$

In Stock, only 3 left!

0

5

Toro 5666

BUSHING-NYLINER

$3.49

$

In Stock, only 4 left!

0

6

Toro 5983

NYLINER BUSHING

$4.99

$

In Stock, Qty 16

0

7

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

8

Toro 106359

SUPPORT-PTO CLUTCH

$

$

Not available

9

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

10

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

11

Toro 108826

PT0 Clutch Rod
(Superseded to 111052)

$70.99

$

Usually ships in 3-6 days

0

12

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

13

Toro 103125

SPRING

$9.49

$

In Stock, only 3 left!

0

14

Toro 101161

TRUNNION

$

$

Not available

15

Toro 106695

RING-REINFORCED CIRC

$2.49

$

In Stock, only 4 left!

0

16

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

17

Toro 102943

PLATE R
(Superseded to 102943-01)

$

$

Not available

18

Toro 104859

SPACER-LIFT LINK

$50.99

$

Usually ships in 3-6 days

0

19

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

20

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

21

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

22

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

23

Toro 104730

PTO Plate
(Superseded to 94-6652)

$38.99

$

In Stock, only 2 left!

0

24

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

25

Toro 104729

BRACKET

$

$

Not available

28

Toro 105850

Pin
(Superseded to 111314)

$24.99

$

Usually ships in 3-6 days

0

29

Toro 106693

Clevis
(Superseded to 110664)

$53.99

$

In Stock, only 3 left!

0

30

Toro 933267

PIN-SPIROL

$0.99

$

In Stock, Qty 11

0

31

Toro 108825

ROD-HOUSING

$

$

Not available

31

Toro 108890

ROD-HOUSING

$

$

Not available

32

Toro 933506

Hairpin
(Superseded to 9335064)

$2.49

$

In Stock, Qty 11

0

33

Toro 102872

SHAFT-PTO

$27.99

$

In Stock, only 1 left!

0

34

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, only 2 left!

0

35

Toro 936032

Ring-Snap
(Superseded to 32120-62)

$4.99

$

In Stock, Qty 8

0

36

Toro 106947

BaIl Bearing
(Superseded to 109842)

$26.99

$

Usually ships in 3-6 days

0

37

Toro 103478

Housing-Clutch
(Superseded to 103478-03)

$

$

Not available

38

Toro 106769

BRG-NEEDLE OPEN END

$52.99

$

In Stock, only 1 left!

0

39

Toro 6663

SEAL-OIL

$11.99

$

In Stock, only 1 left!

0

40

Toro 6658

RACE-BEARING

$

$

Not available

41

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

42

Toro 6659

RETAINER

$18.99

$

In Stock, only 2 left!

0

43

Toro 103817

Clutch Plate & Facing
(Superseded to 94-6650)

$156.99

$

Usually ships in 3-6 days

0

25

Toro 104732

BRACKET-ENGINE B

$

$

Not available

40

Toro 6935

BEARING RACE

$

$

Not available
