0068090 - Generac 3,000 PSI Pressure Washer, CARB (SN: 9591826 - 9776542) (2015) Cylinder Head Parts Diagram

3000 PSI Pressure Washer, CARB

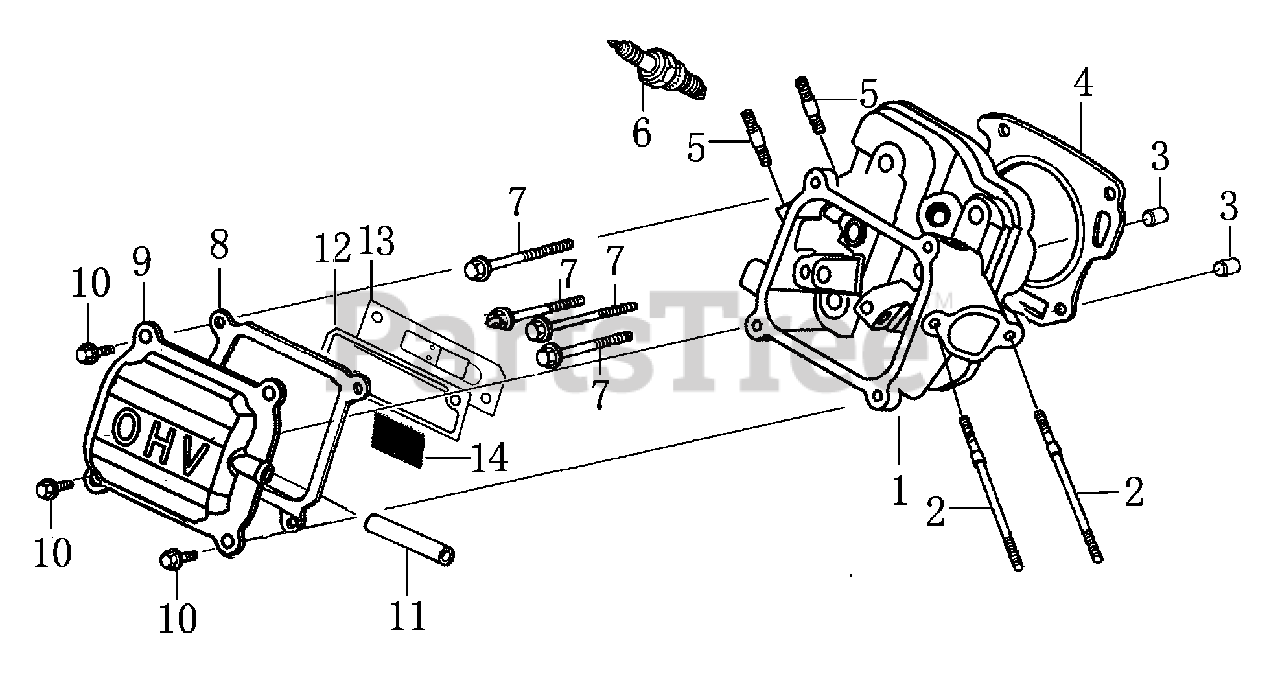

Cylinder Head Parts Diagram

  • Title

1

Generac 0J88870101

CYLINDER HEAD

$88.99

$

Usually ships in 2-12 days

0

2

Generac 0J35220159

INTAKE STUDS

$5.99

$

In Stock, only 2 left!

0

3

0J88870165

DOWEL PIN

$

$

Not available

4

Generac 0K10430110

CYLINDER HEAD GASKET

$14.99

$

Usually ships in 2-12 days

0

5

Generac 0G84420210

EXHAUST STUDS

$2.99

$

Usually ships in 2-12 days

0

6

Generac 0J00620106

SPARK PLUG

$22.99

$

In Stock, only 3 left!

0

7

Generac 0J35220158

FLANGE HEAD BOLT (M8X60)

$5.99

$

Usually ships in 2-12 days

0

8

Generac 0J88870103

HEAD COVER GASKET

$2.99

$

In Stock, only 3 left!

0

9

Generac 0J88870104

HEAD COVER

$15.99

$

Usually ships in 2-12 days

0

10

Generac 0G84420217

FLANGE BOLT (M8*60)

$1.99

$

In Stock, Qty 7

0

11

Generac 0J88870105

BREATHER TUBE

$8.99

$

Usually ships in 2-12 days

0

12

Generac 0J88870107

BREATHER CHANBER GASKET

$0.99

$

Usually ships in 2-12 days

0

13

0J88870706

BREATHER CHAMBER CAP

$

$

Not available

14

Generac 0J88870108

OIL STRAINER

$3.99

$

In Stock, Qty 20+

0
