0066070 - Generac 3,100 PSI Pressure Washer, CARB (SN: 9511110 - 9511163) (2015) Fuel Tank Parts Diagram

3100 PSI Pressure Washer, CARB

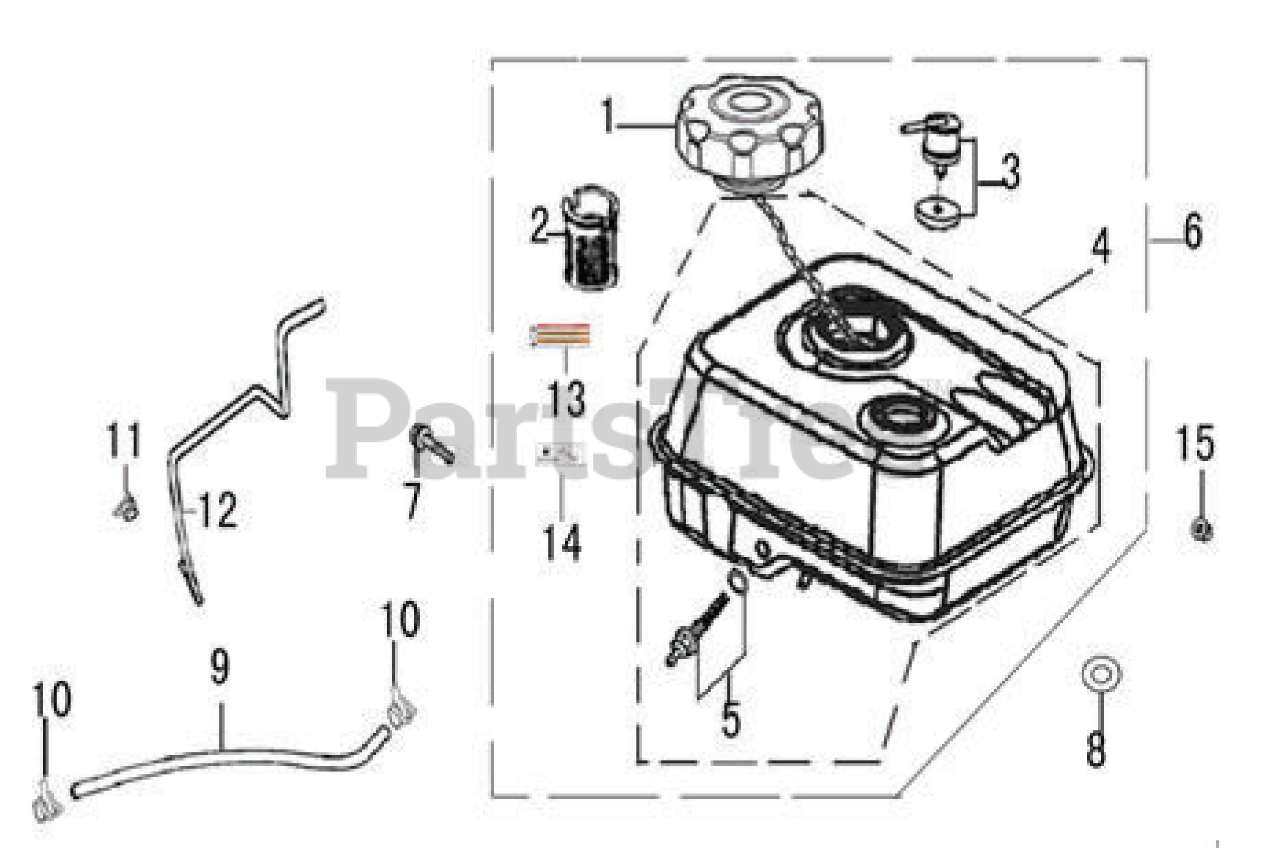

Fuel Tank Parts Diagram

  • Title

1

Generac 0J88870127

CAP COMPLETE, FUEL FILLER

$29.99

$

In Stock, only 1 left!

0

2

Generac 0J35220133

FILTER, FUEL

$3.49

$

In Stock, only 2 left!

0

3

Generac 0J88870128

GAS VALVE, FUEL TANK

$25.99

$

Usually ships in 2-12 days

0

4

Generac 0K10430122

TANK COMPLETE, FUEL

Note: ORDER P/N 0J88870129 FUEL TANK ASSY W/ ROV

$

$

Currently unavailable

5

Generac 0J35220132

JOINT ASSEMBLY, FUEL TANK

$7.49

$

In Stock, only 2 left!

0

6

Generac 0J88870129

TANK ASSEMBLY, FUEL WITH ROLL OVER VALVE

$166.99

$

Usually ships in 2-12 days

0

7

Generac 0G84420268

BOLT, FLANGE, 6X25

$1.99

$

In Stock, Qty 5

0

8

Generac 0J35220171

WASHER, RUBBER

$0.99

$

In Stock, only 2 left!

0

9

Generac 0K10460120

TUBE, FUEL

$9.49

$

In Stock, only 1 left!

0

10

Generac 0J88870130

CLAMP, FUEL HOSE

$5.99

$

In Stock, only 2 left!

0

11

Generac 0J88870132

CLAMP, HOSE

$2.99

$

In Stock, only 2 left!

0

12

Generac 0K10460121

HOSE, PREFORMED

$3.99

$

In Stock, only 1 left!

0

13

WARNING MARK

$

$

Not available

14

REMINDER MARK

$

$

Not available

15

Generac 0G84420272

NUT, FLANGE

$0.99

$

In Stock, Qty 10

0
