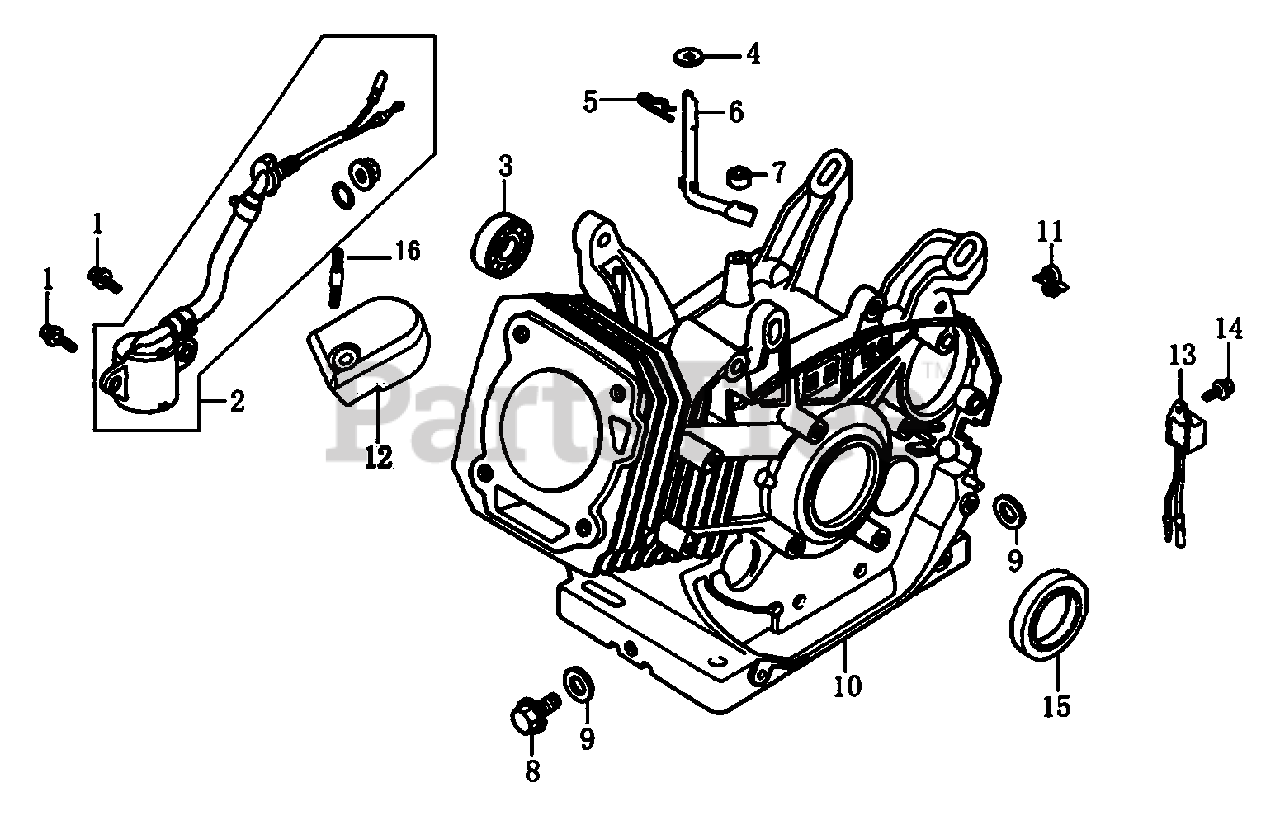

0064680 - Generac 4,000 PSI Pressure Washer (SN: 8192216 - 8629369) (2014) Crankcase Parts Diagram

4000 PSI Pressure Washer

Crankcase Parts Diagram

  • Title

1

Generac 0G84420217

BOLT, FLANGE

$1.99

$

In Stock, Qty 7

0

2

Generac 0G84420105

SWITCH ASSY., OIL LEVEL

$29.99

$

In Stock, only 1 left!

0

3

Generac 0G84420118

BEARING, RADIAL BALL 6202

$14.99

$

Usually ships in 2-12 days

0

4

Generac 0G84420218

WASHER, PLAIN

$0.99

$

Usually ships in 2-12 days

0

5

Generac 0G84420219

PIN, LOCK 10MM

$0.99

$

Usually ships in 2-12 days

0

6

Generac 0G84420220

SHAFT, GOVERNOR ARM

$7.99

$

Usually ships in 2-12 days

0

7

Generac 0G84420108

OIL SEAL, 8X14X4

$4.99

$

In Stock, only 2 left!

0

8

Generac 0G84420110

BOLT, DRAIN PLUG

$4.49

$

In Stock, only 2 left!

0

9

Generac 0G84420109

WASHER, DRAIN PLUG 12MM

$1.99

$

In Stock, only 3 left!

0

10

Generac 0J00620104

CRANKCASE

$427.99

$

Usually ships in 2-12 days

0

11

Generac 0K22930129

HOLDER, STOP SWITCH

$1.49

$

Usually ships in 2-12 days

0

12

Generac 0K22930131

COVER, WIRE

$4.99

$

Usually ships in 2-12 days

0

13

Generac 0G84420112

ALERT UNIT,OIL

$15.99

$

In Stock, only 1 left!

0

14

Generac 0G84420194

BOLT, FLANGE 6X12

$1.49

$

In Stock, only 4 left!

0

15

Generac 0G84420116

OIL SEAL 35X52X7

$21.99

$

In Stock, only 1 left!

0

16

Generac 0J35220160

BOLT, STUD EXHAUST

$2.99

$

Usually ships in 2-12 days

0
