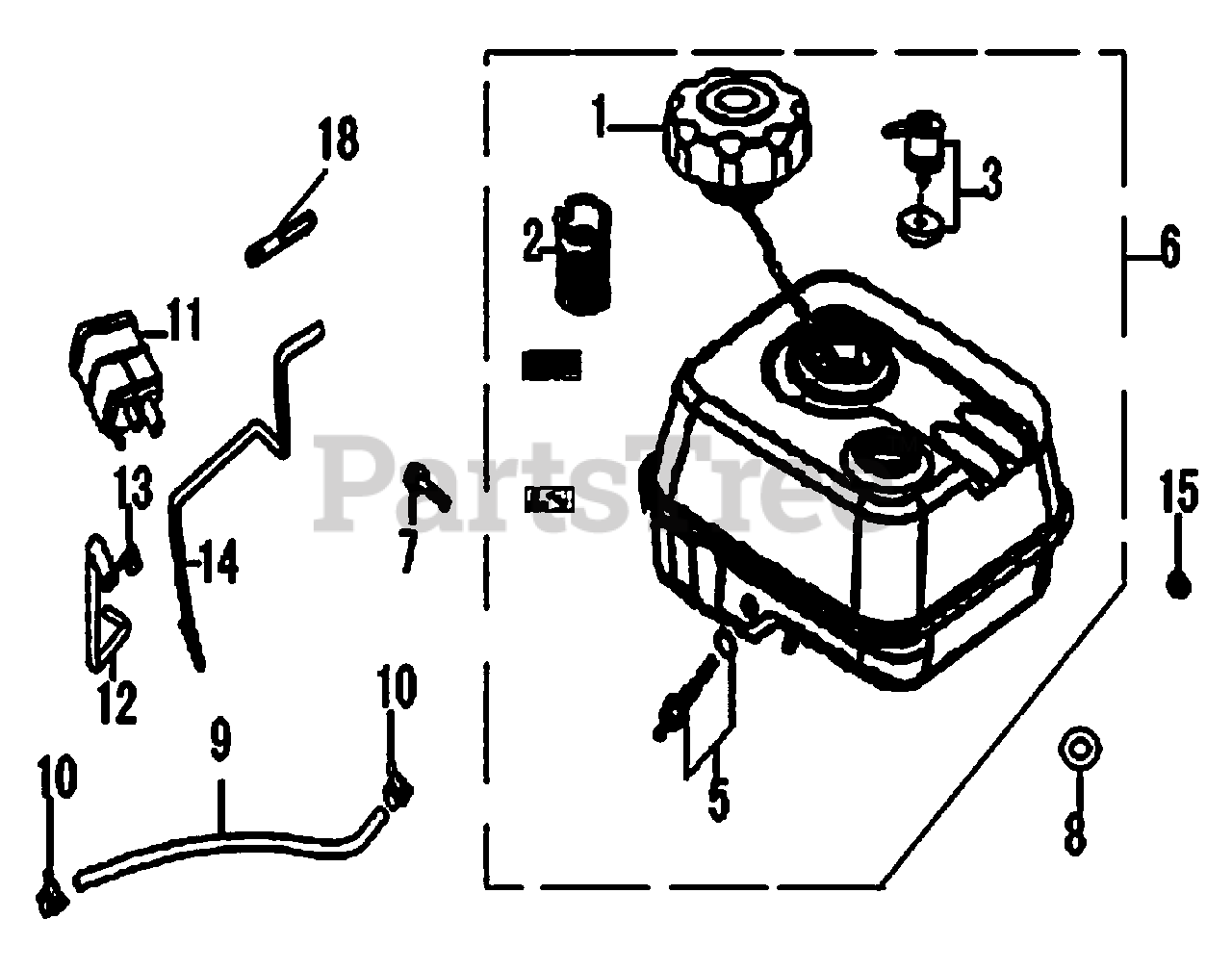

0064130 - Generac 3,100 PSI Pressure Washer, CARB (SN: 7709311 - 8654749) (2014) Fuel Tank Parts Diagram

3100 PSI Pressure Washer, CARB

Fuel Tank Parts Diagram

  • Title

1

Generac 0J88870127

CAP, FUEL FILLER

$29.99

$

In Stock, only 1 left!

0

2

Generac 0J35220133

FILTER,FUEL

$3.49

$

In Stock, only 2 left!

0

3

Generac 0J88870128

GAS VALVE, FUEL TANK

$25.99

$

Usually ships in 2-12 days

0

5

Generac 0J35220132

JOINT ASSY., FUEL TANK

$7.49

$

In Stock, only 2 left!

0

6

Generac 0J88870129

TANK ASSY, COMP., FUEL

$166.99

$

Usually ships in 2-12 days

0

7

Generac 0G84420268

BOLT,FLANGE, 6X25

$1.99

$

In Stock, Qty 5

0

8

Generac 0J35220171

WASHER, RUBBER

$0.99

$

In Stock, only 2 left!

0

9

Generac 0K10460120

HOSE, FUEL (TUBE)

$9.49

$

In Stock, only 1 left!

0

10

Generac 0J88870130

CLAMP/COLLAR

$5.99

$

In Stock, only 2 left!

0

11

Generac 0K10470101

CARBON CANISTER ASSY

$65.99

$

Usually ships in 2-12 days

0

12

Generac 0J35220147

HOSE, FORMED

$3.49

$

Usually ships in 2-12 days

0

13

Generac 0J88870132

CLAMP

$2.99

$

In Stock, only 2 left!

0

14

Generac 0K10470102

HOSE, FORMED

$6.99

$

Usually ships in 2-12 days

0

15

Generac 0G84420272

NUT, FLANGE, 6MM

$0.99

$

In Stock, Qty 10

0

18

Generac 0K10470103

CABLE CLEAT

$0.99

$

Usually ships in 2-12 days

0
