0060231 - Generac 2,700 PSI Pressure Washer, CARB (SN: 8683348 - 8683472) (2014) Cylinder Head Parts Diagram

2700 PSI Pressure Washer, CARB

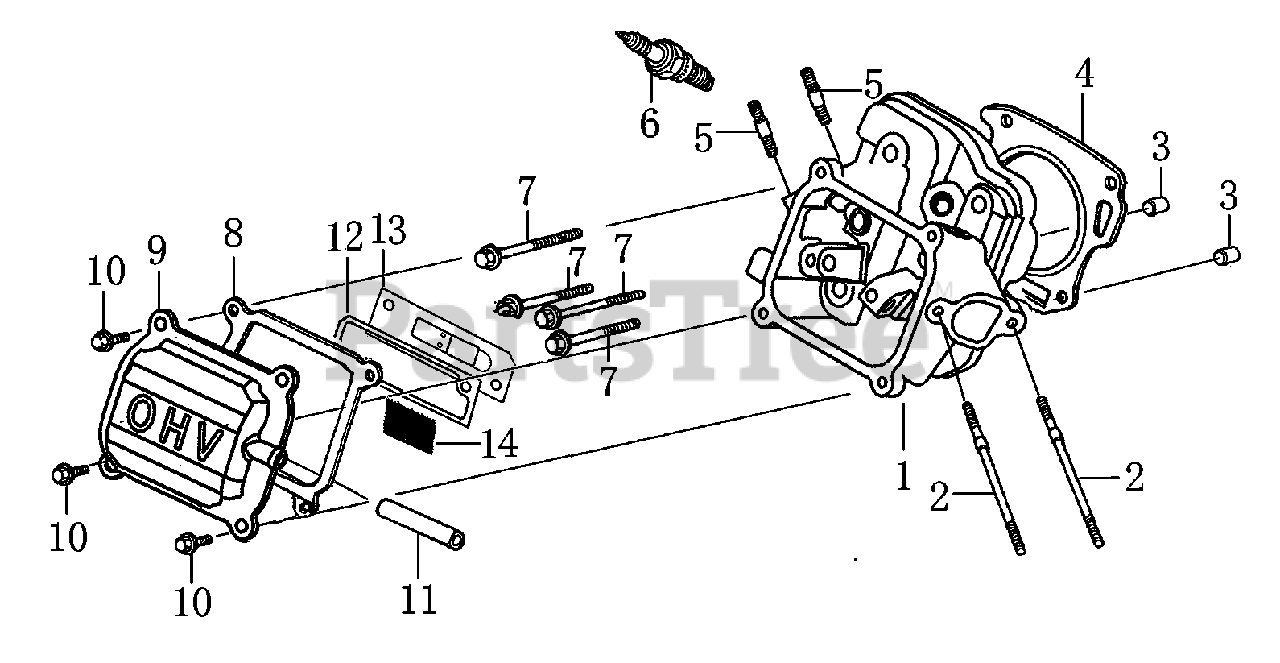

Cylinder Head Parts Diagram

  • Title

1

Generac 0J88870101

HEAD, CYLINDER

$88.99

$

Usually ships in 2-12 days

0

2

Generac 0J35220159

BOLT, STUD,IN.

$5.99

$

In Stock, only 2 left!

0

3

Generac 0J35220165

PIN, DOWEL

$0.99

$

Usually ships in 2-12 days

0

4

Generac 0J88870102

GASKET, CYLINDER HEAD

$8.99

$

Usually ships in 2-12 days

0

5

Generac 0G84420210

BOLT, STUD , EX.

$2.99

$

In Stock, only 2 left!

0

6

Generac 0J00620106

PLUG, SPARK

$22.99

$

In Stock, only 3 left!

0

7

Generac 0J35220158

BOLT, FLANGE 8*60

$5.99

$

Usually ships in 2-12 days

0

8

Generac 0J88870103

GASKET, HEAD COVER

$2.99

$

In Stock, only 2 left!

0

9

Generac 0J88870104

COVER, HEAD

$15.99

$

Usually ships in 2-12 days

0

10

Generac 0G84420217

BOLT, FLANGE 6*14

$1.99

$

In Stock, Qty 7

0

11

Generac 0J88870105

TUBE, BREATHER

$8.99

$

Usually ships in 2-12 days

0

12

Generac 0J88870107

GASKET, BREATHER CHAMBER

$0.99

$

Usually ships in 2-12 days

0

13

Generac 0J88870106

CAP, BREATHER CHAMBER

$6.99

$

Usually ships in 2-12 days

0

14

Generac 0J88870108

OIL STRAINER

$3.99

$

In Stock, Qty 20+

0

Generac 0K104200SM

196CC ENG. (G19) SM KIT

Note: Not Shown

$61.99

$

Usually ships in 2-12 days

0
