0060000 - Generac Portable Generator (SN: 6283058A - 7705545A) (2012) Carburetor Parts Diagram

Portable Generator

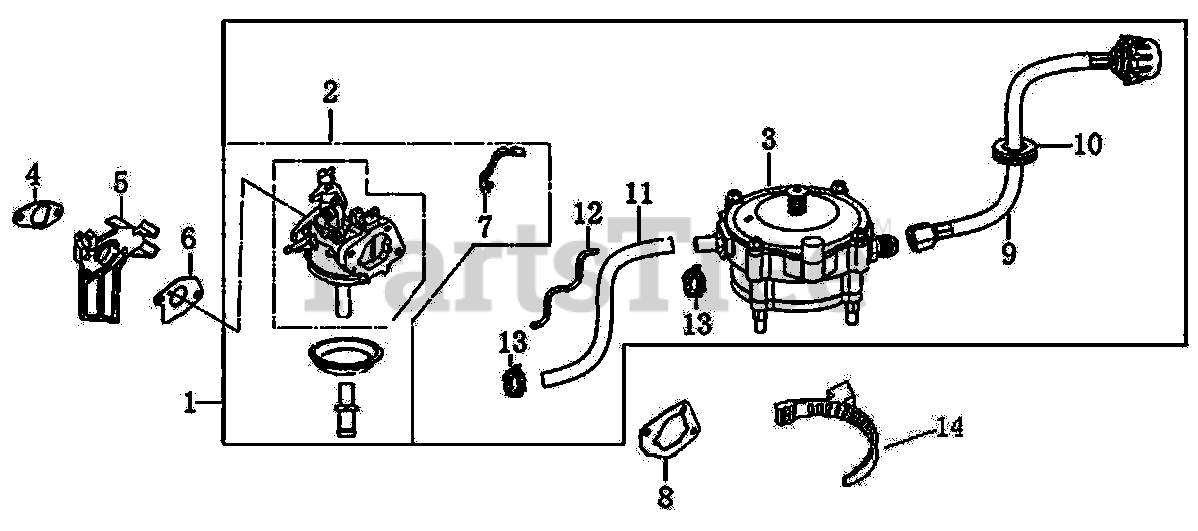

Carburetor Parts Diagram

  • Title

1

Generac 0J47870135

REDUCTION VALVE

$434.99

$

Usually ships in 2-12 days

0

2

Generac 0J47870136

CARBURETOR

Note: IF YOU NEED JUST THE CHOKE LEVER, ORDER P/N 0J47870137

$63.99

$

Usually ships in 2-12 days

0

3

Generac 0J5785

REGULATOR, HIGH PRESS., 90 DEGREE

$662.99

$

Usually ships in 2-12 days

0

0J5785A

REGULATOR, HIGH PRESS., 180 DEGREE

$

$

Not available

4

Generac 0J35220128

GASKET, INSULATOR

$0.99

$

In Stock, Qty 6

0

5

Generac 0J35220130

INSULATOR, CARBURETOR

$4.49

$

In Stock, only 1 left!

0

6

Generac 0J35220127

GASKET., CARBURETOR

$0.99

$

In Stock, only 2 left!

0

7

Generac 0J47870137

LEVER ASSY,CHOKE

$3.49

$

Usually ships in 2-12 days

0

8

Generac 0J35220129

GASKET, AIR CLEANER

$5.49

$

In Stock, only 1 left!

0

9

Generac 0J6056

PIPE (HOSE, FUEL LP TANK)

$54.99

$

Usually ships in 2-12 days

0

10

Generac 0F9504

GROMMET

$2.99

$

Usually ships in 2-12 days

0

11

Generac 0J6058

PIPE (HOSE, FUEL LP REGULATOR)

$10.99

$

Usually ships in 2-12 days

0

12

Generac 0J6057

PIPE (HOSE, Vent)

$8.99

$

Usually ships in 2-12 days

0

13

Generac 048031J

CLIP, TUBE

Note: ON ALL PORTABLE, HSB, INDUSTRIAL & L&G ENGINES THAT USE THE 0D3083 OIL DRAIN HOSE USE 0G3662

$1.49

$

Usually ships in 2-12 days

0

14

Generac 0J47870138

RIBBON

$2.49

$

Usually ships in 2-12 days

0
