0059940 - Generac 3,100 PSI Pressure Washer, CARB (SN: 8049304 - 8049503) (2013) Crankcase Cover Parts Diagram

3100 PSI Pressure Washer, CARB

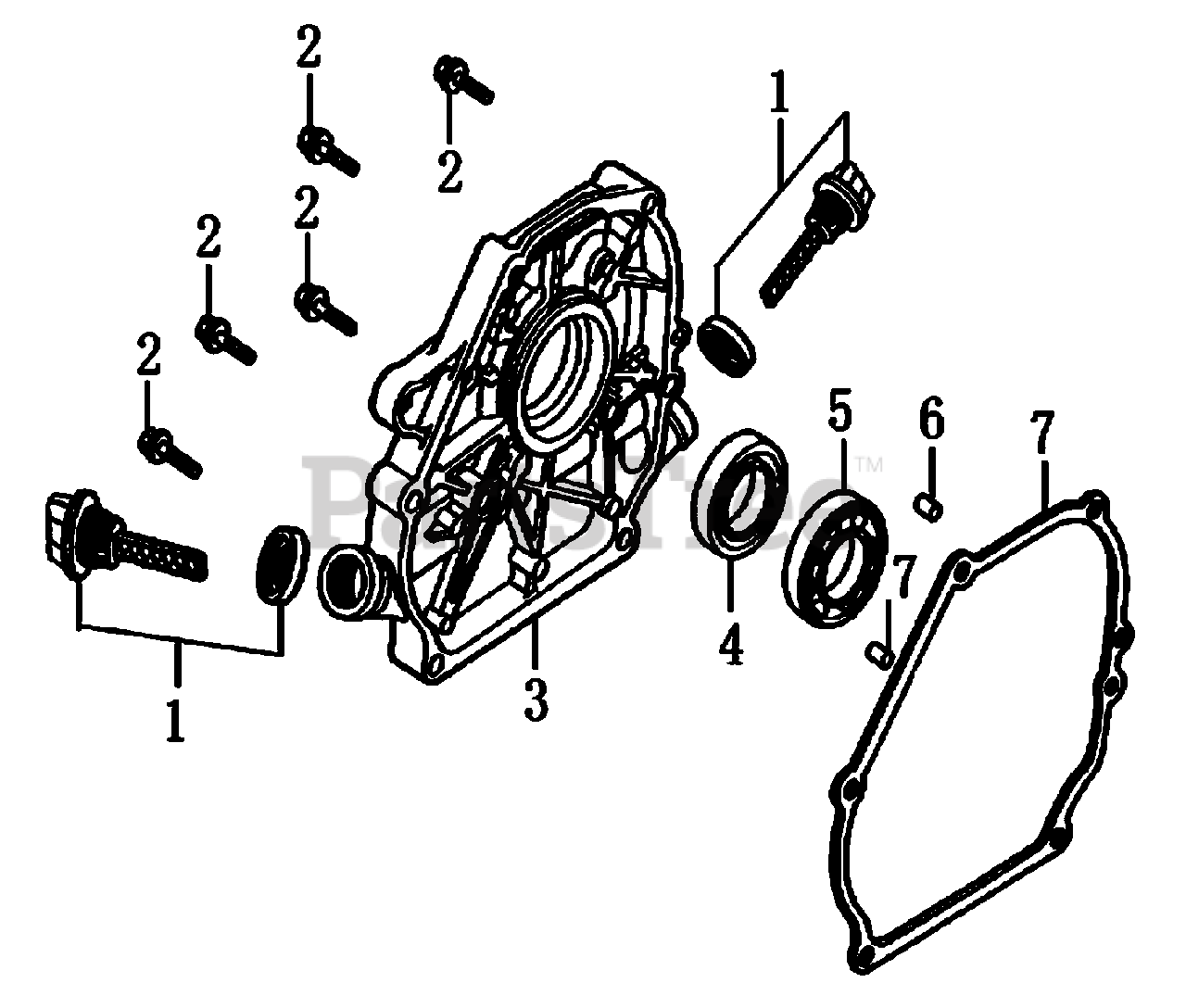

Crankcase Cover Parts Diagram

  • Title
1

Generac 0J35230110

GAUGE ASSY.,OIL LEVEL

$3.99

$

In Stock, only 1 left!

0

2

Generac 0J35230136

BOLT, FLANGE

$3.49

$

In Stock, Qty 6

0

3

Generac 0J88870111

CASE COVER

$66.99

$

Usually ships in 2-12 days

0

4

Generac 0J35220166

OIL SEAL 25X41.25X6

$13.99

$

In Stock, only 1 left!

0

5

Generac 0J35230139

BEARING, RADIAL BALL

$26.99

$

Usually ships in 2-12 days

0

6

Generac 0J35230138

PIN, DOWEL

$0.99

$

Usually ships in 2-12 days

0

7

Generac 0J88870112

GASKET, CASE COVER

$12.99

$

In Stock, only 1 left!

0
