0057230 - Generac Portable Generator (SN: 5247570 - 5257417) (2009) Crankcase Parts Diagram

Portable Generator

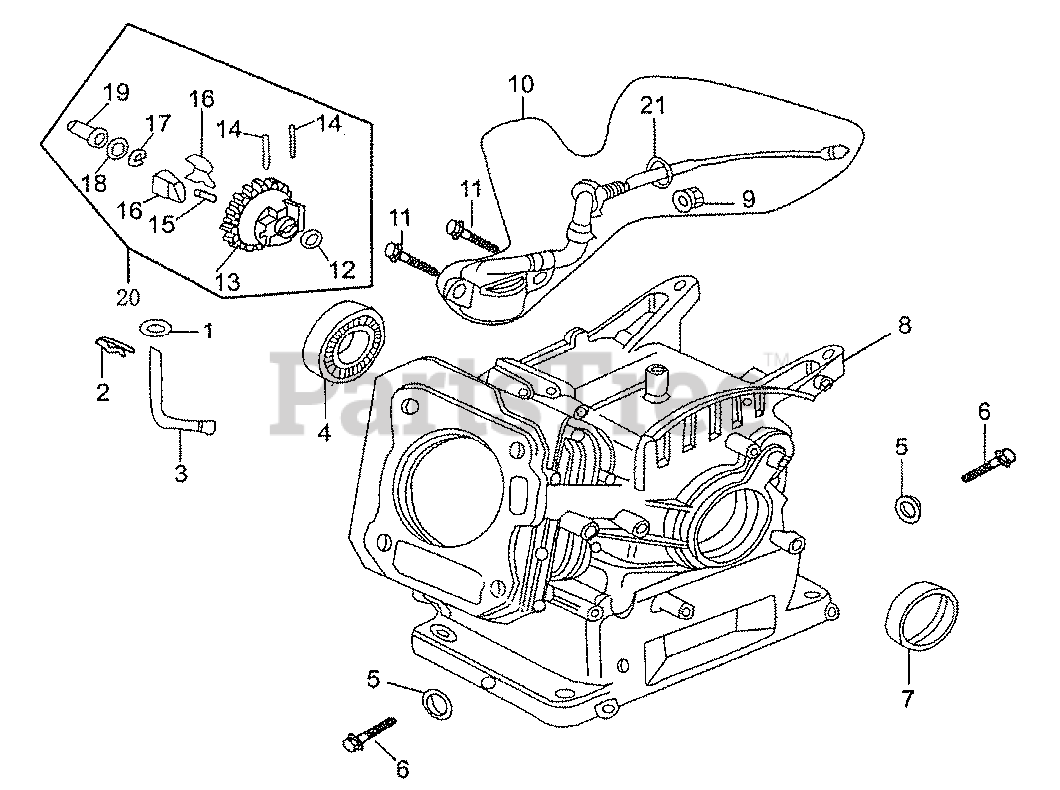

Crankcase Parts Diagram

  • Title

1

Generac 0H04680110

WASHER, PLAIN 0.5MM(1MM)

$

$

Currently unavailable

2

Generac 0H04680111

PIN,LOCK,8MM

$

$

Currently unavailable

3

Generac 0H04680112

SHAFT,GOVERNOR ARM

$2.49

$

Usually ships in 2-12 days

0

4

Generac 0H04680113

BEARING BALL RADIAL 6205

$

$

Currently unavailable

5

Generac 0H03930103

WASHER,DRAIN PLUG 10.2MM

$0.99

$

Usually ships in 2-12 days

0

6

Generac 0H03930102

BOLT, DRAIN PLUG 10 X 15

$1.49

$

In Stock, only 1 left!

0

7

Generac 0H03930104

OIL SEAL 25X41.25X6

$4.99

$

Usually ships in 2-12 days

0

8

Generac 0H04680114

CRANKCASE

$

$

Currently unavailable

9

Generac 0H04680115

NUT M10

$

$

Currently unavailable

10

Generac 0H03930101

SWITCH ASSY, OIL LEVEL

$16.99

$

Usually ships in 2-12 days

0

11

Generac 0H04680116

BOLT, FLANGE, 6 X 16

$

$

Currently unavailable

12

Generac 0H04680117

WASHER, THRUST 6MM

$

$

Currently unavailable

13

Generac 0H04680118

HOLDER, GOV WEIGHT

$

$

Currently unavailable

14

Generac 0H04680119

PIN,GOV.WEIGHT

$

$

Currently unavailable

15

Generac 0H04680120

REGULATING SHAFT

$

$

Currently unavailable

16

Generac 0H04680121

WEIGHT, GOVERNOR

$

$

Currently unavailable

17

Generac 0H04680122

CLIP,GOV.HOLDER

$

$

Currently unavailable

18

Generac 0H04680110

WASHER,PLAIN 1MM(0.5MM)

$

$

Currently unavailable

19

Generac 0H04680123

SLIDER, GOVERNOR

$

$

Currently unavailable

20

Generac 0H04680124

GOVERNOR ASSY(4.0g)

$7.49

$

Usually ships in 2-12 days

0

21

Generac 0H04680125

O-RING, 14MM

$

$

Currently unavailable
