0053480 - Generac Portable Generator (SN: 4995868 - 8281183) (2016) Engine (0G5598-E) - Part 1 Parts Diagram

Portable Generator

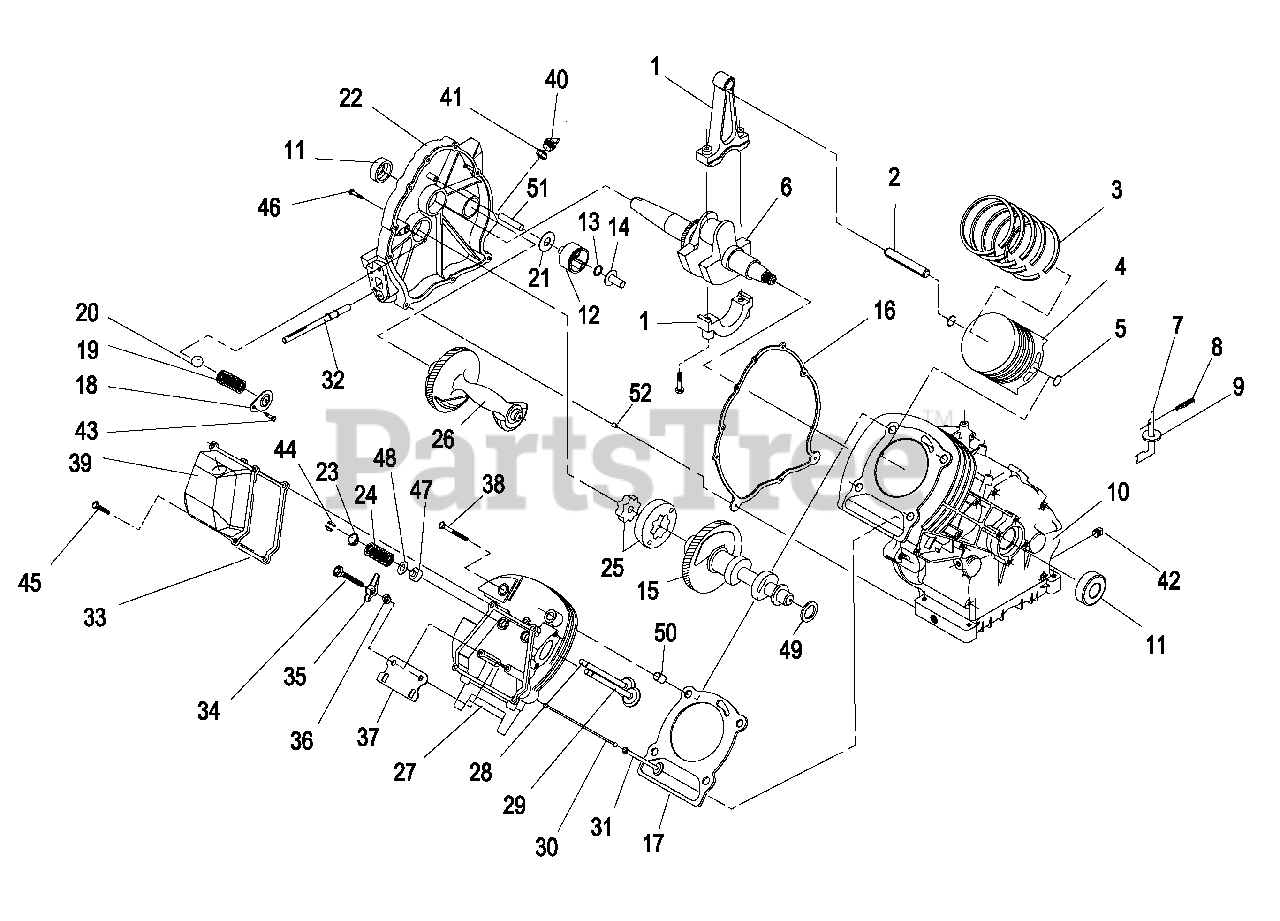

Engine (0G5598-E) - Part 1 Parts Diagram

  • Title

1

Generac 0E3221

ASSEMBLY, CONNECTING ROD

$20.99

$

In Stock, only 1 left!

0

2

Generac 0E1466

PIN, PISTON D20

$6.49

$

In Stock, Qty 5

0

3

Generac 0G2565

RING SET, PISTON Ø90

Note: ORDER P/N 0G25650SRV

$

$

Currently unavailable

4

Generac 0G2751

PISTON, FLAT TOP Ø90 COATED

$

$

Not available

5

Generac 071983

RETAINER, PISTON PIN 20
(Superseded to G071983)

$15.99

$

In Stock, Qty 6

0

6

Generac 0E8440

ASSEMBLY, CRANKSHAFT GH410 SMALL TAPER
(Superseded to 0G41940SRV)

Note: ORDER 0E35050SRV

$118.99

$

In Stock, only 1 left!

0

7

Generac 0A7628

ARM, GOVERNOR RC45

$7.99

$

In Stock, only 1 left!

0

8

Generac 078658

PIN, "R" GOVERNOR ARM

$

$

Not available

9

Generac 078659

WASHER, GOVERNOR ARM THRUST
(Superseded to G078659)

Note: 220 ENGINES PRODUCED AFTER 03/04/04 USE 2 OF 0F0967 INSTEAD OF 078659

$0.99

$

In Stock, Qty 10

0

10

Generac 088261E

CRANKCASE, SUBASSEMBLY WITH PLUGS GH410

$

$

Not available

11

Generac 0E3812

SEAL, 35 I.D. CRANKSHAFT

$11.99

$

In Stock, Qty 5

0

12

Generac 0E6519

ASSEMBLY, GOVERNOR GEAR
(Superseded to 0E65190SRV)

Note: ORDER 0E65190SRV

$

$

Not available

13

Generac 078645

C-RING, GOVERNOR GEAR RETAINER
(Superseded to G078645)

$4.49

$

Usually ships in 2-12 days

0

14

Generac 0A7811

SPOOL, GOVERNOR- MACHINE

$16.99

$

In Stock, only 2 left!

0

15

Generac 0A9877

ASSEMBLY, CAMSHAFT & GEAR
(Superseded to 0A98770SRV)

Note: ORDER 0A98770SRV

$231.99

$

Usually ships in 2-12 days

0

16

Generac 076701

GASKET , CRANKCASE
(Superseded to G076701)

$4.49

$

Usually ships in 2-12 days

0

17

Generac 021713B

GASKET, HEAD 410

$6.49

$

In Stock, only 1 left!

0

18

Generac 078691

COVER, OIL PRESSURE RELIEF

$

$

Not available

19

Generac 0A5771

SPRING, OIL RELIEF 360

$3.49

$

Usually ships in 2-12 days

0

20

Generac 0A5776

BALL, DIA 11/32 PRESSURE RELIEF

$1.49

$

Usually ships in 2-12 days

0

21

Generac 076361

WASHER, THRUST GOVERNOR GEAR
(Superseded to G076361)

$8.99

$

Usually ships in 2-12 days

0

22

Generac 0A8898B

ASSEMBLY, COVER, GEAR TOP CHECK / FILL

Note: ORDER 0A8898BSRV

$

$

Not available

23

Generac 0D2274

RETAINER, VALVE SPRING

$1.99

$

In Stock, only 4 left!

0

24

Generac 0C4391

VALVE SPRING LF

$2.49

$

In Stock, only 3 left!

0

25

Generac 086025

SET,GEROTOR 12 THK

$7.49

$

In Stock, only 1 left!

0

26

Generac 0E3341

BALANCER

$57.99

$

Usually ships in 2-12 days

0

27

Generac 0G6791

ASSEMBLY,CYLINDER HEAD SEATS & GUIDES
(Superseded to 0G6791A)

Note: ORDER 0G6791A

$127.99

$

Usually ships in 2-12 days

0

28

Generac 086516

VALVE, EXHAUST
(Superseded to G086516)

$18.99

$

In Stock, only 2 left!

0

29

Generac 086517

VALVE, INTAKE
(Superseded to G086517)

$19.99

$

Usually ships in 2-12 days

0

30

Generac 0D9853B

PUSH ROD 174.9

$9.99

$

In Stock, only 2 left!

0

31

Generac 083897

TAPPET
(Superseded to G083897)

$20.99

$

Usually ships in 2-12 days

0

32

Generac 077158

ASSEMBLY, SCREEN OIL PICK-UP

$

$

Not available

33

Generac 0C3150

GASKET, ROCKER COVER 410
(Superseded to 0C3150A)

Note: ORDER 0C3150A

$19.99

$

In Stock, only 2 left!

0

34

Generac 072694

STUD, D20 PIVOT BALL
(Superseded to G072694)

$5.99

$

Usually ships in 2-12 days

0

35

Generac 083907

ROCKER ARM
(Superseded to G083907)

$5.99

$

Usually ships in 2-12 days

0

36

Generac 0D3998

NUT, JAM (ROCKER ARM)

$2.99

$

In Stock, only 2 left!

0

37

Generac 078694

PLATE, PUSH ROD GUIDE
(Superseded to G078694)

$24.99

$

Usually ships in 2-12 days

0

38

Generac 021742

SCREW, HHFL M10-1.5 X 105
(Superseded to G021742)

$5.49

$

Usually ships in 2-12 days

0

39

Generac 0D6094B

ASSEMBLY, ROCKER COVER GENERAC TEXT
(Superseded to 0D6094)

Note: ORDER 0D6094

$26.99

$

Usually ships in 2-12 days

0

40

Generac 076329

PLUG, OIL FILL PLASTIC
(Superseded to G076329)

Note: ORDER 0763290SRV---- CAP AND O-RING.

$2.49

$

In Stock, only 1 left!

0

41

Generac 0E0057

O-RING 17.8 I.D. x 2.4

$1.49

$

In Stock, only 3 left!

0

42

Generac 0D4788

PLUG, STANDARD PIPE 3/8 STEEL SQUARE HEAD

$2.49

$

In Stock, only 1 left!

0

43

Generac 074908

SCREW, TAPTITE M5-0.8 X 10 BP
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

44

Generac 086515

KEEPER, VALVE SPRING
(Superseded to G086515)

$1.99

$

Usually ships in 2-12 days

0

45

Generac 078606

SCREW & LOCKWASHER M6-1 X 12
(Superseded to G078606)

$10.99

$

Usually ships in 2-12 days

0

46

Generac 0A1442

SCREW, HHFC M8-1.25 X 42

$2.49

$

Usually ships in 2-12 days

0

47

Generac 078672

SEAL, VALVE STEM D7
(Superseded to G078672)

$3.99

$

In Stock, only 2 left!

0

48

Generac 089673

WASHER, VALVE SPRING
(Superseded to G089673)

$2.49

$

In Stock, only 1 left!

0

49

Generac 0B2104

WASHER, LARGE SPRING

$1.49

$

Usually ships in 2-12 days

0

50

Generac 078699C

SLEEVE, DOWEL PIN 14 DIA.

$1.99

$

Usually ships in 2-12 days

0

51

Generac 0A7627

SHAFT, GOVERNOR RC55

$2.99

$

In Stock, only 1 left!

0

52

Generac 078699B

SLEEVE, DOWEL PIN 12 DIA.

$1.99

$

Usually ships in 2-12 days

0
