0053340 - Generac Power Transfer Switch (SN: 1008V27638 - 4208V30634) (2016) 400 A Switch Assembly (0G1510$-B) Parts Diagram

Power Transfer Switch

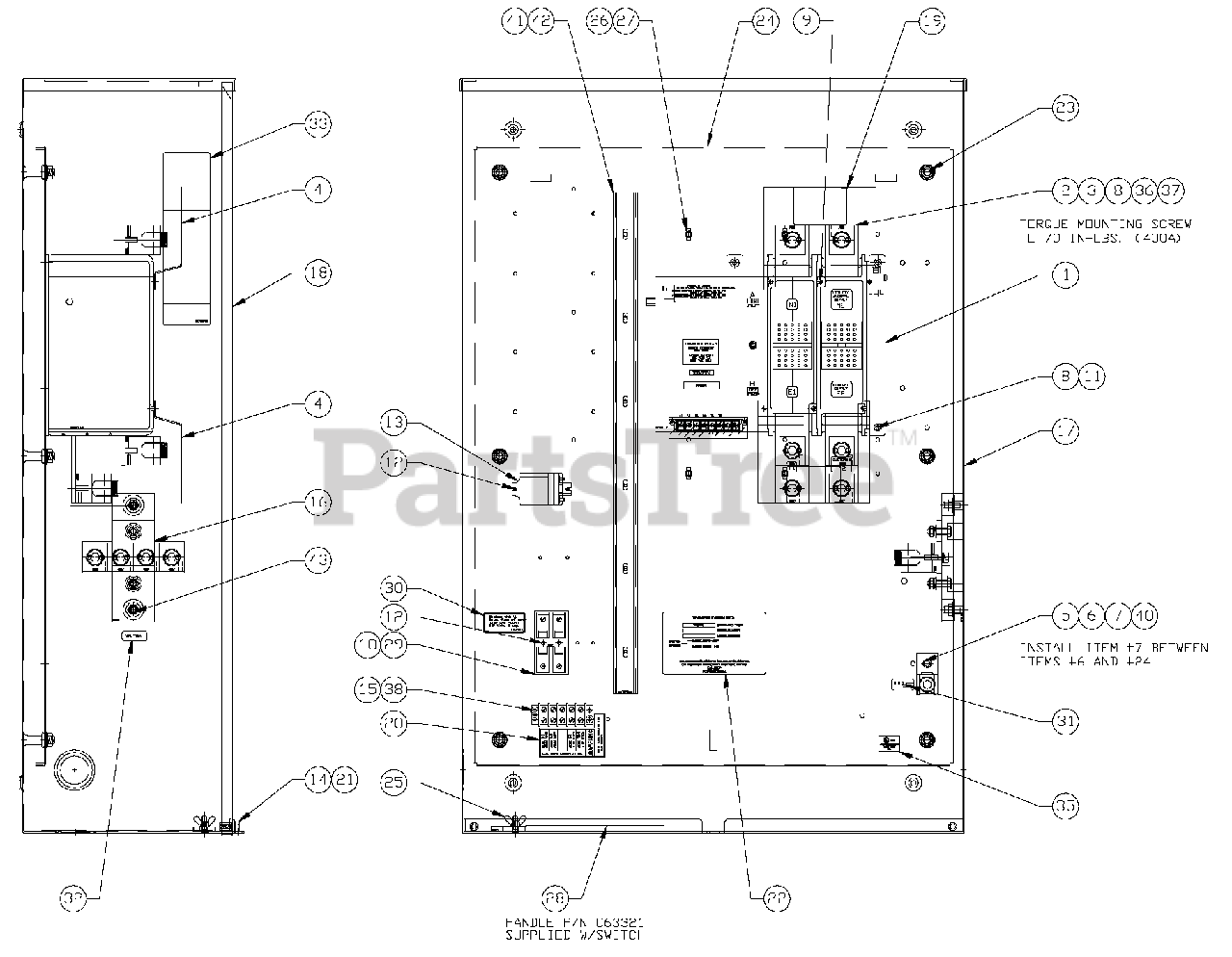

400 A Switch Assembly (0G1510$-B) Parts Diagram

  • Title

1

Generac 0D7294

XFER SW-W 400A600V2P

$3768.99

$

Usually ships in 2-12 days

0

2

Generac 0A7822

LUG, SLDLSS 600/250-1/0X1/4-28

$46.99

$

Usually ships in 2-12 days

0

3

Generac 26902

SCREW TAPTITE #8-32X1/4 BP

$

$

Not available

4

Generac 0C7907J

COVER LUG 2P 400AMP

$15.99

$

Usually ships in 2-12 days

0

5

Generac 24526

SCREW HHTT 5/16-18 X 3/4 CZ

$

$

Not available

6

Generac 57329

LUG, SOLDERLESS 350-#6X13/32 AL/CU

$

$

Not available

7

Generac 27482

WASHER SHAKEPROOF EXT 5/16 STEEL

$

$

Not available

8

Generac 22097

WASHER LOCK M6-1/4

$

$

Not available

9

Generac 0C8275

SCREW PPHM DSEMS M4-.7 X 10 ZNC

$0.99

$

Usually ships in 2-12 days

0

10

Generac 0D2806

FUSEBLOCK 30A 600V 2POS W/SQ

Note: ITEMS INCLUDED WITH HARNESS

$40.99

$

Usually ships in 2-12 days

0

11

Generac 90388

SCREW TAPTITE M6-1.0 X 12 MM

$

$

Not available

12

Generac 0A1495

SCREW TAPTITE M4-.7 X 10 MM

$0.99

$

Usually ships in 2-12 days

0

13

Generac 63617

RELAY PNL 12VDC DPDT 10A@240VA

Note: ITEMS INCLUDED WITH HARNESS

$

$

Not available

14

Generac 47411

SCREW HHC M6-1.0 X 16 G8.8

$

$

Not available

15

Generac 0A1661

RIVET, POP

$0.99

$

Usually ships in 2-12 days

0

16

Generac 0F4034

ASSY. NEUTRAL BLOCK 300/400A

$

$

Not available

17

Generac 0F5935

RTS 3R ENCLOSURE 24X36X10

Note: NEED TO ORDER EITHER 0F59350ST08 TELECOM GRAY OR 0F59350ST14 2008 GRAY.

$

$

Not available

18

Generac 0F5939

COVER TRANSFER SWITCH

Note: NEED TO ORDER EITHER 0F59390ST08 TELECOM GRAY OR 0F59390ST14 2008 GRAY.

$297.99

$

Usually ships in 2-12 days

0

19

Generac 0G3259

DECAL TERMINAL SHOCK HZD BI

$2.99

$

Usually ships in 2-12 days

0

20

Generac 0C2262

DECAL TERMINAL STRIP

$1.49

$

Usually ships in 2-12 days

0

21

Generac 0F6165

WASHER, NYLON

$2.99

$

Usually ships in 2-12 days

0

22

0G1519

DECAL DATA XFER SW 100A 240V

$

$

Not available

23

Generac 64101

NUT HEX FL WHIZ 3/8-16

$

$

Not available

24

Generac 0F5940

SUBPLATE,100A TS 3R 480V

Note: NEED TO ORDER EITHER 0F59400ST08 TELECOM GRAY OR 0F59400ST14 2008 GRAY.

$77.99

$

Usually ships in 2-12 days

0

25

Generac 87680

NUT WING M6-1.0

$

$

Not available

26

Generac 63378

HOLDER CABLE TIE

$

$

Not available

27

Generac 64761

TIE WRAP UL 5.6" X .10" NATL

$

$

Not available

28

Generac 63321

HANDLE TRANSFER SWITCH 1-400A

$

$

Not available

29

Generac 073590A

FUSE 5A X BSS HLDR73591

$8.99

$

In Stock, only 1 left!

0

30

Generac 0D3587

DECAL,FUSE REPLACEMENT

$0.99

$

Usually ships in 2-12 days

0

31

Generac 067210A

DECAL GROUND LUG

$0.99

$

Usually ships in 2-12 days

0

32

Generac 0A9457

DECAL NEUTRAL

$0.99

$

Usually ships in 2-12 days

0

33

Generac 0D4545

DECAL MANUAL OPERATION

$

$

Not available

34

Generac 0F6129

DECAL, TEST SEQUENCE

Note: CENTER DECAL ON INSIDE OF THE COVER (ITEM #18)

$8.49

$

Usually ships in 2-12 days

0

35

Generac 81221

DECAL, UL NAMEPLATE

$

$

Not available

36

Generac 0A8261

SCREW, HHCS 1/4-28 X 5/8"

$0.99

$

Usually ships in 2-12 days

0

37

Generac 22473

WASHER, FLAT 1/4-6M ZINC

$

$

Not available

38

Generac 48850

BLOCK TERM 20A 5 X 6 X 1100V

Note: ITEMS INCLUDED WITH HARNESS

$

$

Not available

39

Generac 0F6273A

HARNESS 400A 2 POLE RTS (NOT SHOWN)

$804.99

$

Usually ships in 2-12 days

0

40

Generac 22129

WASHER LOCK M8-5/16

$

$

Not available

41

Generac 91472

DUCT WIRING 1X1.5

$

$

Not available

42

Generac 091472A

COVER WIRE DUCT 1 IN

$4.99

$

Usually ships in 2-12 days

0

43

Generac 67989

NUT HEX FL WHIZ M8-1.25

$

$

Not available
