0052390 - Generac Power Master Load Display (SN: 4526894 - 4526894) (2015) Assembly (0F9110-C) Parts Diagram

Power Master Load Display

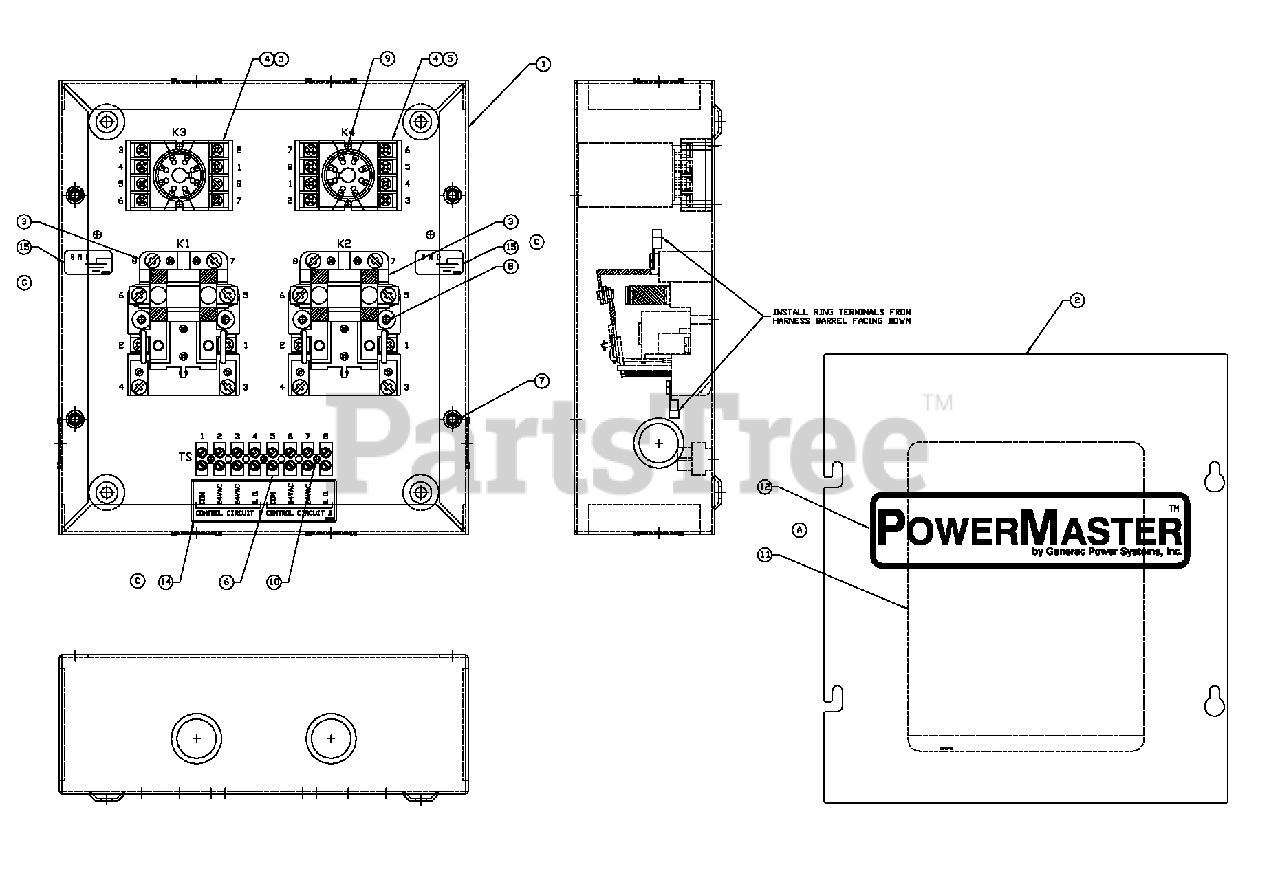

Assembly (0F9110-C) Parts Diagram

  • Title

1

Generac 0F9080

LOAD DISCONNECT ENCLOSURE

$

$

Currently unavailable

2

Generac 0F9081

LOAD DISCONNECT ENCLOSURE COVER

$

$

Currently unavailable

3

Generac 0C3211T

RELAY 40A @ 300VAC DPDT

$

$

Not available

4

Generac 0C3211U

RELAY DPDT 24VAC 5A 8 PIN

$

$

Not available

5

Generac 0C3211G

SOCKET RELAY 8 PIN

$31.99

$

Usually ships in 2-12 days

0

6

0F9072

BLOCK TERM 10MM 8 POS MOLEX

$

$

Not available

7

Generac 074908

SCREW HHTT M5-0.8 X 10 BP
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

8

Generac 0C2265

SCREW PHTT M4-0.7 X 12 ZYC

$0.99

$

Usually ships in 2-12 days

0

9

Generac 0C2695

SCREW PHTT M4-0.7 X 20 ZYC

$0.99

$

Usually ships in 2-12 days

0

10

Generac 0C2323

SCREW PHTT #6-32 X 5/8 ZYC

$0.99

$

Usually ships in 2-12 days

0

11

Generac 0F9151

DECAL, FIELD WIRING

$

$

Currently unavailable

12

Generac 0F9152

DECAL, FRONT COVER

$

$

Currently unavailable

13

Generac 0F9148

HARNESS, POWERMASTER

Note: (NOT SHOWN)

$

$

Currently unavailable

14

Generac 0G2061

DECAL, POWERMASTER CONTROL

$

$

Currently unavailable

15

Generac 067210A

DECAL, GROUND LUG

$0.99

$

Usually ships in 2-12 days

0
