0049872 - Generac Centurian Portable Generator (SN: 5150586 - 5265073) (2009) Control Panel (0G2965-B) Parts Diagram

Centurian Portable Generator

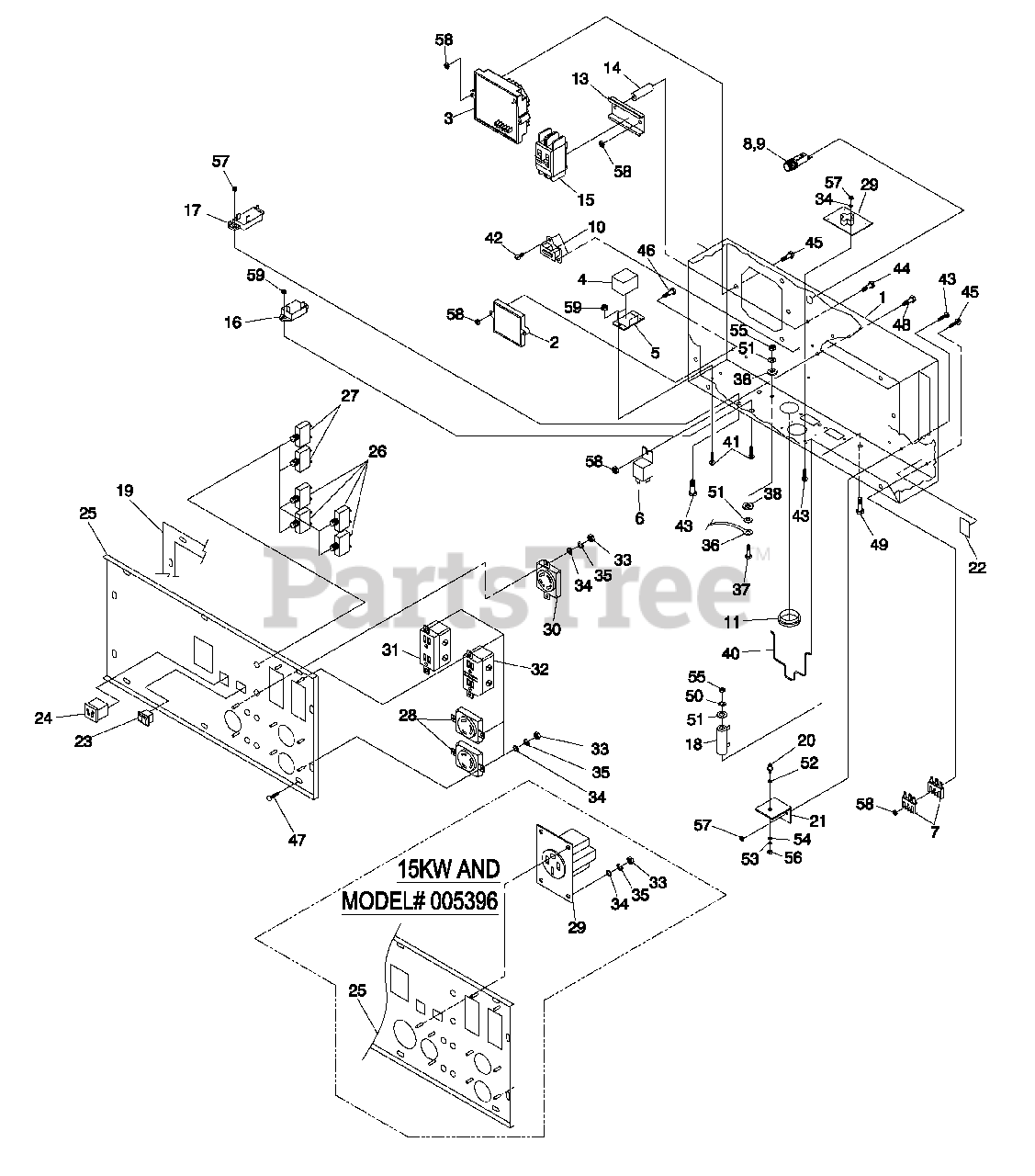

Control Panel (0G2965-B) Parts Diagram

  • Title

1

Generac 0G28880ST03

CONTROL PANEL BOX (15 KW & 005396)

$258.99

$

Usually ships in 2-12 days

0

Generac 0G28900ST03

CONTROL PANEL BOX (17.5 KW)

$302.99

$

Usually ships in 2-12 days

0

2

Generac 0D4409

ELECTRONIC GOVERNOR / IDLE CONTROLLER

$409.99

$

Usually ships in 2-12 days

0

3

Generac 0F9719

ASSY PCB VREG AIR COOLED

Note: USE 0F97190SRV

$

$

Currently unavailable

4

Generac 0F3100

RELAY 3PDT 12VDC

$101.99

$

Usually ships in 2-12 days

0

5

Generac 0F3101

RELAY BASE 3PDT 12VDC

$5.49

$

Usually ships in 2-12 days

0

6

Generac 052844

RELAY PNL 12VDC SPST 30A
(Superseded to G052844)

$63.99

$

In Stock, only 1 left!

0

7

Generac 065795

RECTIFIER-BATTERY CHARGER
(Superseded to G065795)

$22.99

$

Usually ships in 2-12 days

0

8

Generac 032300

HOLDER FUSE
(Superseded to G032300)

$8.49

$

In Stock, only 1 left!

0

9

Generac 028578

FUSE 10A X AGC10
(Superseded to G028578)

$8.49

$

In Stock, Qty 7

0

10

Generac 0D4804A

TRANSFORMER, IDLE CURRENT

$30.99

$

Usually ships in 2-12 days

0

11

Generac 023484S

BUSHING SNAP

$0.99

$

Usually ships in 2-12 days

0

12

Generac 0G2887

HARNESS, CONTROL PANEL BACK (NOT SHOWN)

$480.99

$

Usually ships in 2-12 days

0

13

Generac 0D5045

DIN RAIL 59.5mm LONG

$4.99

$

Usually ships in 2-12 days

0

14

Generac 0G0923

SPACER .25 X .50 X 2.5 (17.5 KW)

$20.99

$

Usually ships in 2-12 days

0

Generac 0D5734

SPACER .25 X .50 X 1.5 (15 KW & 005396)

$2.99

$

Usually ships in 2-12 days

0

15

Generac 0D1004E

CIRCUIT BREAKER 50A 400V 2POLE

$31.99

$

Usually ships in 2-12 days

0

16

Generac 087962

CIRCUIT BREAKER 10A 1POLE
(Superseded to G087962)

$11.99

$

Usually ships in 2-12 days

0

17

Generac 048505

CIRCUIT BREAKER 6A 1POLE
(Superseded to G048505)

$128.99

$

Usually ships in 2-12 days

0

18

Generac 057405

RESISTOR 25R 5% 25W
(Superseded to G057405)

Note: IF CLIPS ARE NEEDED ORDER QTY 2 OF 057405A

$32.99

$

Usually ships in 2-12 days

0

19

Generac 0D6140

GASKET, PORTABLE CONTROL PANEL

$12.99

$

Usually ships in 2-12 days

0

20

Generac 049939

RECTIFIER 1N1206R
(Superseded to G049939)

Note: THIS RECTIFIER IS REVERSE POLARITY.

$50.99

$

Usually ships in 2-12 days

0

21

Generac 055444

HEATSINK

$

$

Not available

22

Generac 027565

TAPE ELEC UL PERMACEL

Note: NOT AVAILABLE FOR SALE TROUGH SERVICE. CAN ORDER AT HARDWARE STORE 3M 1339

$

$

Not available

23

Generac 087968

SWITCH, ROCKER -/0
(Superseded to G087968)

$1.99

$

In Stock, Qty 5

0

24

Generac 090418

OUTLET, 12VDC SNAP
(Superseded to G090418)

$6.49

$

Usually ships in 2-12 days

0

25

Generac 0D8740

PANEL, SHEET METAL (15 KW & 005396)

$

$

Not available

0G0309

PANEL, SHEET METAL (17.5 KW)

$

$

Not available

26

Generac 075207A

CIRCUIT BREAKER 30A

$12.99

$

In Stock, only 2 left!

0

27

Generac 075207

CIRCUIT BREAKER 20A
(Superseded to G075207)

$11.99

$

Usually ships in 2-12 days

0

28

Generac 068868

OUTLET 30A 120V RECEPT
(Superseded to G068868)

$38.99

$

In Stock, only 1 left!

0

29

Generac 0D4969

OUTLET 50A 125/250V

$66.99

$

Usually ships in 2-12 days

0

30

Generac 043437

OUTLET 30A 125/250V
(Superseded to G043437)

$21.99

$

In Stock, only 1 left!

0

31

Generac 0D4968

OUTLET 20A 120V DPLX

$25.99

$

Usually ships in 2-12 days

0

32

Generac 0D4966

OUTLET 20A 120V GFCI

$104.99

$

In Stock, only 1 left!

0

33

Generac 051715

NUT HEX M4-0.7 (15 KW & 005396)
(Superseded to G051715)

$9.49

$

Usually ships in 2-12 days

0

NUT HEX M4-0.7 (17.5 KW)

$

$

Not available

34

Generac 038150

WASHER FLAT #8 (15 KW & 005396)
(Superseded to G038150)

Note: MODEL 4270-3 AND 4614- CHANGE TO PART NUMBER 051713 WASHER FLAT M5 AND LOCK WASHER 049226 WHEN USING WITH 076040 SCREW PER ECO- G-6948

$0.99

$

Usually ships in 2-12 days

0

35

Generac 022264

WASHER LOCK M4 (15 KW & 005396)
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

WASHER LOCK M4 (17.5 KW)

$

$

Not available

36

Generac 0742600142

GROUND WIRE

$

$

Not available

37

Generac 049721

SCREW HHC M6-1.0 X 35
(Superseded to G049721)

$9.49

$

In Stock, Qty 5

0

38

Generac 0A1658

WASHER LOCK SPECIAL 1/4"

$15.99

$

Usually ships in 2-12 days

0

39

Generac 0D3546

HARNESS, CONTROL PANEL FRONT (NOT SHOWN)

$102.99

$

In Stock, only 1 left!

0

40

Generac 0G0615

SPRING RETAINER (17.5 KW)

$4.99

$

Usually ships in 2-12 days

0

41

Generac 090987

SCREW PPHM M3-0.5 X 12
(Superseded to G090987)

$0.99

$

In Stock, only 2 left!

0

42

Generac 0C1085

SCREW PPHM M3-0.5 X 8

$0.99

$

Usually ships in 2-12 days

0

43

Generac 075475

SCREW PPHM M4-0.7 X 10
(Superseded to G075475)

$0.99

$

Usually ships in 2-12 days

0

44

Generac 077682

SCREW PPHM M5-0.8 X 80 (17.5 KW)

$

$

Not available

Generac 080823

SCREW PPHM M5-0.8 X 50 (15 KW & 005396)

$

$

Not available

45

Generac 075235

SCREW PPHM M5-0.8 X 30

$

$

Not available

46

Generac 0G3024

SCREW HHC M5-0.8 X 25

$0.99

$

Usually ships in 2-12 days

0

47

Generac 074908

SCREW HHTT M5-0.8 X 10
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

48

Generac 045770

SCREW HHC M5-0.8 X 10
(Superseded to G045770)

Note: ON INDUSTRIAL 990/760 ENGINES USE 0E9210

$0.99

$

In Stock, only 1 left!

0

49

Generac 0A2053

SCREW HHC M6-1.0 X 65

$0.99

$

Usually ships in 2-12 days

0

50

Generac 022097

WASHER LOCK M6 (1/4")
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

51

Generac 022473

WASHER FLAT 1/4"
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

52

Generac 070370

WASHER MICA .203

$

$

Not available

53

Generac 023897

WASHER FLAT #10

$

$

Not available

54

Generac 030468

WASHER STEP NYLON .20

$

$

Not available

55

Generac 049813

NUT HEX M6-1.0
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

56

Generac 022158

NUT HEX #10-32

$

$

Not available

57

Generac 0E6480

NUT HEX M4-0.5 NYINS

$14.99

$

Usually ships in 2-12 days

0

58

Generac 082025

NUT HEX M5-0.8 NYINS
(Superseded to G082025)

$0.99

$

In Stock, Qty 5

0

59

Generac 0D9784

NUT HEX M3-0.5 NYINS

$9.49

$

In Stock, Qty 7

0
