0049860 - Generac Centurian Portable Generator (SN: 3791301 - 4635532) (2006) Commercial-Industrial-Residential Portable Generator System GT-990 & GT-760 Engine (Page 2) (0E8589E) Parts Diagram

Centurian Portable Generator

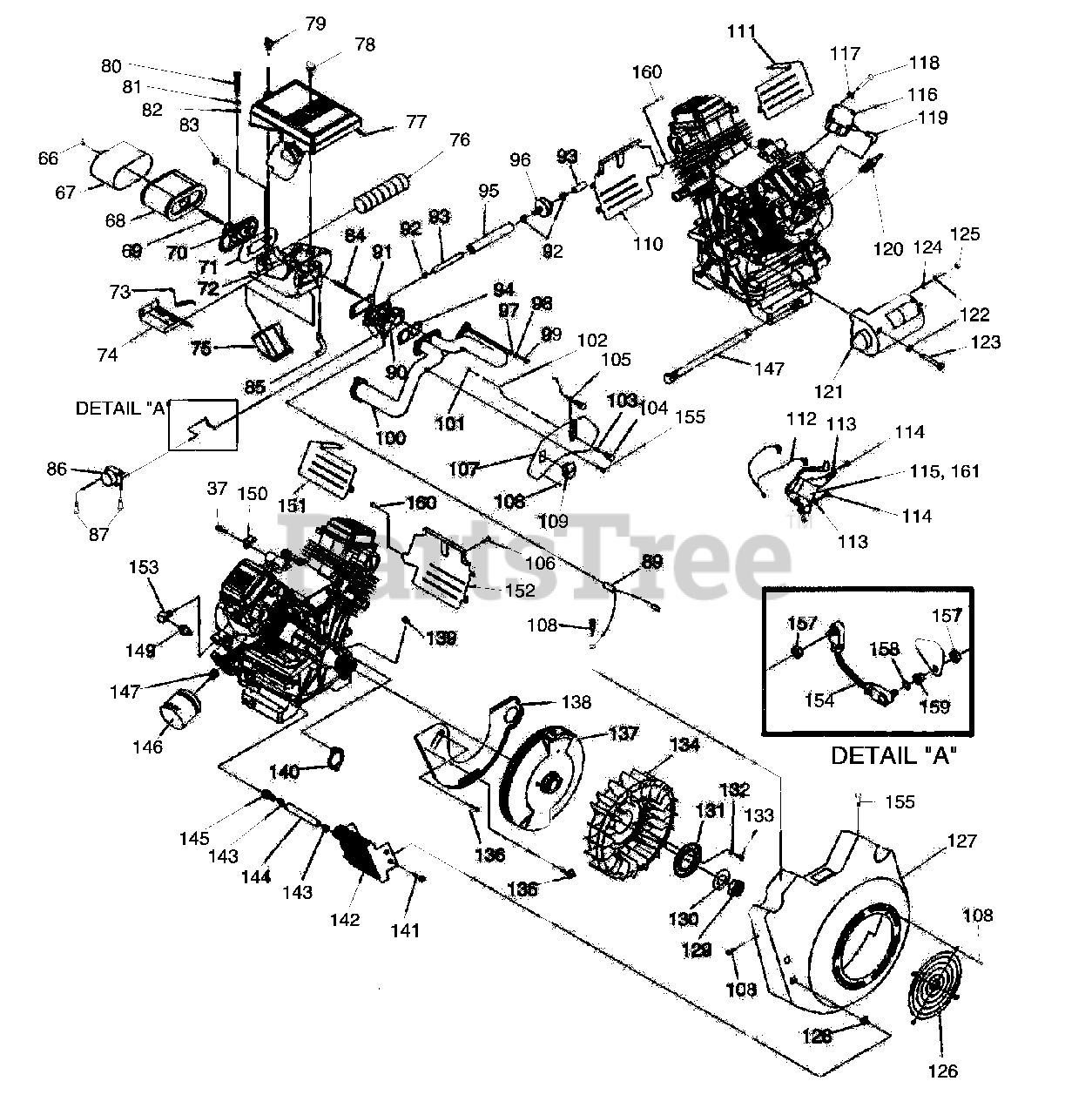

Commercial-Industrial-Residential Portable Generator System GT-990 & GT-760 Engine (Page 2) (0E8589E) Parts Diagram

  • Title

66

Generac 0D6592

WINGNUT, AIRBOX

$2.49

$

In Stock, only 2 left!

0

67

Generac 0D4511

PRECLEANER, AIR

$6.99

$

In Stock, only 1 left!

0

68

Generac 0D9723

ELEMENT, AIR CLEANER
(Superseded to 0D9723S)

Note: ORDER P/N 0D9723S

$48.99

$

In Stock, only 1 left!

0

69

Generac 0E5302

STUD M6-1.0 X 73

$23.99

$

In Stock, only 1 left!

0

70

Generac 0D4183

ADAPTER, SPIT BACK

$11.99

$

Usually ships in 2-12 days

0

71

Generac 0D6327

GASKET, SPITBACK

$1.99

$

In Stock, only 4 left!

0

72

Generac 0D2774B

BASE, AIRBOX (GT-990)

$25.99

$

Usually ships in 2-12 days

0

Generac 0E4870

BASE, AIRBOX (GT-760)

Note: WHEN INVENTORY IS CONSUMED THSI PART IS NO LONGER AVAILABLE

$

$

Not available

73

Generac 0D5125

SPRING, WINTER/SUMMER VALVE

$2.49

$

In Stock, only 3 left!

0

74

Generac 0D2930

VALVE, SUMMER/WINTER

$5.49

$

In Stock, only 1 left!

0

75

Generac 0D4612A

SNORKEL, AIR INTAKE

Note: PART IS OBSOLETE WHEN ON HAND INVENTORY IS EXHAUST ED

$51.99

$

Usually ships in 2-12 days

0

76

Generac 0D6143

TUBE, HEAT RISER 50.8 I.D.

$64.99

$

Usually ships in 2-12 days

0

77

Generac 0D2775

COVER, AIRBOX

$26.99

$

In Stock, only 1 left!

0

78

Generac 0D5014A

KNOB, AIRBOX 17mm

$3.49

$

In Stock, only 1 left!

0

79

Generac 0D5014B

KNOB, AIRBOX 95MM

$3.99

$

Usually ships in 2-12 days

0

80

Generac 049721

SCREW HHC M6-1.0 X 35
(Superseded to G049721)

$9.49

$

In Stock, Qty 5

0

81

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

82

Generac 022473

WASHER FLAT 1/4
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

83

Generac 052857

NUT LOCK FLANGE M6-1.0

$

$

Not available

84

Generac 0D6021

STUD, METRIC

$

$

Not available

85

Generac 0C9093A

HOSE, BREATHER

$6.99

$

In Stock, only 1 left!

0

86

Generac 0D4522

CONTROLLER ASSEMBLY

Note: service: if the serial# on the unit is before 3691548, customer must order D45220ESV retrofi kit after serial# 3691548, use 0D4522 12/31/02

$210.99

$

Usually ships in 2-12 days

0

87

Generac 074908

SCREW HHTT M5-0.8 X 10
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

89

Generac 0E3398

ASSEMBLY, WIRE

$8.99

$

Usually ships in 2-12 days

0

90

Generac 0E2548

CARBURETOR (GT-990)

Note: ORDER KIT P/N 0E25480ESV. USED ON PORTABLE GENERATORS ONLY!!!! FOR FUEL SOLENOID ONLY ORDER PART # 0E5551. (TWO WIRE CONNECTOR)

$

$

Currently unavailable

0E5077

CARBURETOR (GT-760)

Note: CUSTOMER ORDER P/N 0D80590ESV.

$

$

Not available

91

Generac 0D4026

GASKET, CARB TO SPACER (GT-990)

$3.49

$

In Stock, only 1 left!

0

Generac 0D4024

GASKET, CARB/AIRBOX (GT-760)

$11.99

$

In Stock, only 1 left!

0

92

Generac 048031C

CLAMP HOSE BAND 1/4

$0.99

$

In Stock, Qty 5

0

93

Generac 030340

HOSE1/4 ID

Note: FOR GASOLINE PORTABLE AND RV PRODUCTS USE 0F9176

$

$

Not available

94

Generac 0D4023

GASKET, MANIFOLD TO CARB (GT-990)

$6.99

$

In Stock, only 1 left!

0

Generac 0D5282

GASKET, MANIFOLD TO CARB (GT-760)

$5.99

$

Usually ships in 2-12 days

0

95

Generac 086061G

SLEEVING 1/2" I.D

$11.99

$

Usually ships in 2-12 days

0

96

Generac 0D6313

FILTER, FUEL

$5.49

$

In Stock, only 2 left!

0

97

Generac 070008

WASHER FLAT M8
(Superseded to G070008)

$0.99

$

In Stock, Qty 8

0

98

Generac 070006

WASHER LOCK M8
(Superseded to G070006)

$1.49

$

Usually ships in 2-12 days

0

99

Generac 049821

SCREW SHC M8-1.25 X 30
(Superseded to G049821)

$2.49

$

Usually ships in 2-12 days

0

100

Generac 0C9911

MANIFOLD, INTAKE
(Superseded to 0J8893)

Note: USE 0J8893

$183.99

$

Usually ships in 2-12 days

0

101

Generac 051714

NUT HEX M3-0.5
(Superseded to G051714)

$0.99

$

In Stock, Qty 8

0

102

Generac 0D5411

ROD, SUMMER / WINTER VALVE

$3.49

$

Usually ships in 2-12 days

0

103

Generac 0D5445

BUSHING, MINI CONTROL PANEL

$0.99

$

In Stock, Qty 7

0

104

Generac 0D5416A

KNOB, CONTROL SUMMER / WINTER

$5.49

$

Usually ships in 2-12 days

0

105

Generac 0D5398

CHOKE ASSEMBLY

$16.99

$

Usually ships in 2-12 days

0

106

Generac 0E6043

SCREW TAPTITE M5-0.8 X 8 ZP

$0.99

$

In Stock, only 2 left!

0

107

Generac 0D3432

PANEL, CONTROL FACE PLATE

$21.99

$

Usually ships in 2-12 days

0

108

Generac 045756

SCREW TAPTITE M6-1.0X 10 YELLOW CHROME
(Superseded to G045756)

$0.99

$

In Stock, Qty 20+

0

109

Generac 0D4767

SWITCH ROCKER

$68.99

$

Usually ships in 2-12 days

0

110

Generac 0D1142A

WRAPPER, LOWER CYLINDER 2

$21.99

$

In Stock, only 1 left!

0

111

Generac 0D1143

WRAPPER, UPPER CYLINDER 2

$11.99

$

In Stock, only 1 left!

0

112

Generac 0F1177

ASSEMBLY, GROUND WIRE
(Superseded to 0E7209)

$70.99

$

In Stock, only 3 left!

0

113

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

114

Generac 092079

SCREW TAPTITE M6-1.0 X 25 BP

$

$

Not available

115

Generac 0C3052

ASSEMBLY, IGNITION COIL
(Superseded to 0K63030SRV)

Note: USE ON FLYWHEEL P/N 0C3725A & 0C3725B. WHEN 0C3052 INVENTORY DEPLETED USE 0G3224BSRV

$116.99

$

In Stock, only 1 left!

0

116

Generac 0C4147

PUMP, IMPULSE
(Superseded to 0C41470SRV)

Note: 990 PORTABLE ENGINE & 760/990/999 HOMESTANDBY HORIZONTAL ENGINES ORDER P/N 0C41470SRV. FOR ALL VERTICAL LAWN AND GARDEN ENGINES ORDER P/N 0C4147ASRV.

$75.99

$

In Stock, only 3 left!

0

117

Generac 022264

WASHER LOCK M4
(Superseded to G022264)

$0.99

$

Usually ships in 2-12 days

0

118

Generac 0D6142

SCREW PPHM M4-0.7 X 40

$0.99

$

Usually ships in 2-12 days

0

119

Generac 0D5399A

ELBOW, RUBBER 90 DEG.

Note: ON PORTABLE UNITS WITH ROUND FUEL PUMP USE 0G0832

$3.49

$

In Stock, only 1 left!

0

120

Generac 0E7585

SPARKPLUG, CHAMPION RC14YC

$3.99

$

In Stock, Qty 20+

0

121

Generac 0E4271

STARTER, DELCO REMY SD80
(Superseded to 0E42710SRV)

Note: ORDER 0E42710SRV IF THE CUSTOMER ONLY WANTS THE SOLONOID FOR THE STARTER USE 0F3978.

$532.99

$

Usually ships in 2-12 days

0

122

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

123

Generac 061906

SCREW HHC M8-1.25 X 85 G8.8
(Superseded to G061906)

$1.49

$

Usually ships in 2-12 days

0

124

Generac 022145

WASHER, FLAT M8
(Superseded to G022145)

$2.49

$

In Stock, Qty 10

0

125

Generac 045771

NUT, HEX M8-1.25 G8
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

126

Generac 0D1131

GUARD, FAN

$7.99

$

In Stock, only 1 left!

0

127

Generac 0C3022B

HOUSING, BLOWER GASOLINE COOLER

Note: REPLACE WITH 0F1169B AND 0F1170A

$

$

Not available

128

Generac 0C9763

NUT, GROMMET 1/4 PLUG

Note: VERIFY THAT CUSTOMER IS NOT LOOKING FOR SCREW 0D6147

$1.99

$

In Stock, Qty 6

0

129

Generac 0C3034

NUT,HEX M24

$5.99

$

Usually ships in 2-12 days

0

130

Generac 0C3033

WASHER, M24

$2.49

$

In Stock, only 1 left!

0

131

Generac 0C3032

PLATE, FAN

$7.99

$

Usually ships in 2-12 days

0

132

Generac 0A5992

WASHER SHAKEPROOF INT M8 SS

$0.99

$

Usually ships in 2-12 days

0

133

Generac 051754

SCREW HHC M8-1.25 X 12 G8.8

$

$

Not available

134

Generac 0C3031

FAN, NYLON

$38.99

$

In Stock, only 1 left!

0

135

Generac 085011

INSULATOR ASSEMBLY IGNITION
(Superseded to G085011)

$2.99

$

Usually ships in 2-12 days

0

136

Generac 045756

SCREW TAPTITE M6-1X10 YELLOW CHROME
(Superseded to G045756)

$0.99

$

In Stock, Qty 20+

0

137

Generac 0C3725A

FLYWHEEL ASSEMBLY
(Superseded to 0C3725ASRV)

Note: ORDER P/N 0C3725ASRV..

$443.99

$

Usually ships in 2-12 days

0

138

Generac 0C3016A

PLATE, BACKING GT990 WITH OIL COOL

$

$

Not available

139

Generac 082774

KEY, WOODRUFF 4 X 19D
(Superseded to G082774)

$9.49

$

In Stock, only 2 left!

0

140

Generac 0C3043

GASKET, MANIFOLD / PORT

$1.99

$

In Stock, Qty 5

0

141

Generac 0C9764

PLASTITE,1/4-15 X 3/4

$0.99

$

In Stock, Qty 6

0

142

Generac 0C3026

COOLER, OIL
(Superseded to 0E9506)

Note: USE 0E9506 COOLER, OIL GV-990

$45.99

$

Usually ships in 2-12 days

0

143

Generac 0C7649

CLAMP HOSE .38-.87

Note: USE 0G4020 FOR OIL LINES USE 0C7649 FOR FUEL LINES

$2.49

$

In Stock, only 2 left!

0

144

Generac 0C9806

HOSE, 3/8" I.D. X 6" LONG
(Superseded to 0G40210SRV)

Note: USE 0G40210SRV HOSE 3/8" ID

$72.99

$

Usually ships in 2-12 days

0

145

Generac 035461A

BARBED STR 1/4NPT X 3/8 WITH VIBRA SEAL

$7.49

$

In Stock, only 1 left!

0

146

Generac 070185

FILTER, OIL D 69 X 64 LONG
(Superseded to 070185BS)

Note: USE 070185D OIL FILTER

$59.99

$

In Stock, only 2 left!

0

147

Generac 0C7292

NIPPLE, 3/4"-16 UNF

$2.49

$

Usually ships in 2-12 days

0

148

Generac 0D3083

ASSEMBLY, OIL DRAIN HOSE
(Superseded to 0G44030SRV)

Note: NO LONGER AVAILABLE ORDER 0G44030SRV FOR REPLACEMENT DRAIN CAP ONLY USE PART NUMBER 0G4426

$23.99

$

In Stock, only 1 left!

0

149

Generac 0C3025

SWITCH, OIL PRESS

Note: THE TWO WIRE SCREWS IF NEEDED ARE PART NUMBER 036916

$

$

Not available

150

Generac 0D4550

BRACKET, AIRBOX SUPPORT

$2.99

$

Usually ships in 2-12 days

0

151

Generac 0C3018

WRAPPER, UPPER CYLINDER 1

$12.99

$

In Stock, only 1 left!

0

152

Generac 0C3019

WRAPPER, LOWER CYLINDER 1

$20.99

$

Usually ships in 2-12 days

0

153

Generac 046964A

BRASS ST ELBOW 1/4 NPT

$11.99

$

Usually ships in 2-12 days

0

154

Generac 0E0409

ASSY, ROD, GOV. STEPPER MOTOR

Note: THIS GOVERNOR ROD DOES NOT COME WITH BALL STUDS. IF NEEDED ORDER PART NUMBER 0D6342

$13.99

$

In Stock, only 2 left!

0

155

Generac 0C8563

SCREW HHHC M6-1.0 X12

$9.49

$

In Stock, Qty 6

0

157

Generac 0D9784

NUT, LOCK HEX M3-0.5 (GT-990)

$9.49

$

In Stock, Qty 7

0

Generac 0E4869

NUT, HEX W/TOOTH WASHER M3-0.5 (GT-760)

$0.99

$

In Stock, only 1 left!

0

158

Generac 031879

WASHER FLAT #4 (GT-990)

$

$

Not available

Generac 0E4868

WASHER FLAT #4 (GT-760)

$3.49

$

In Stock, only 1 left!

0

159

Generac 0D6098

SPACER, ROD (GT-760 ONLY)

$1.99

$

In Stock, only 1 left!

0
