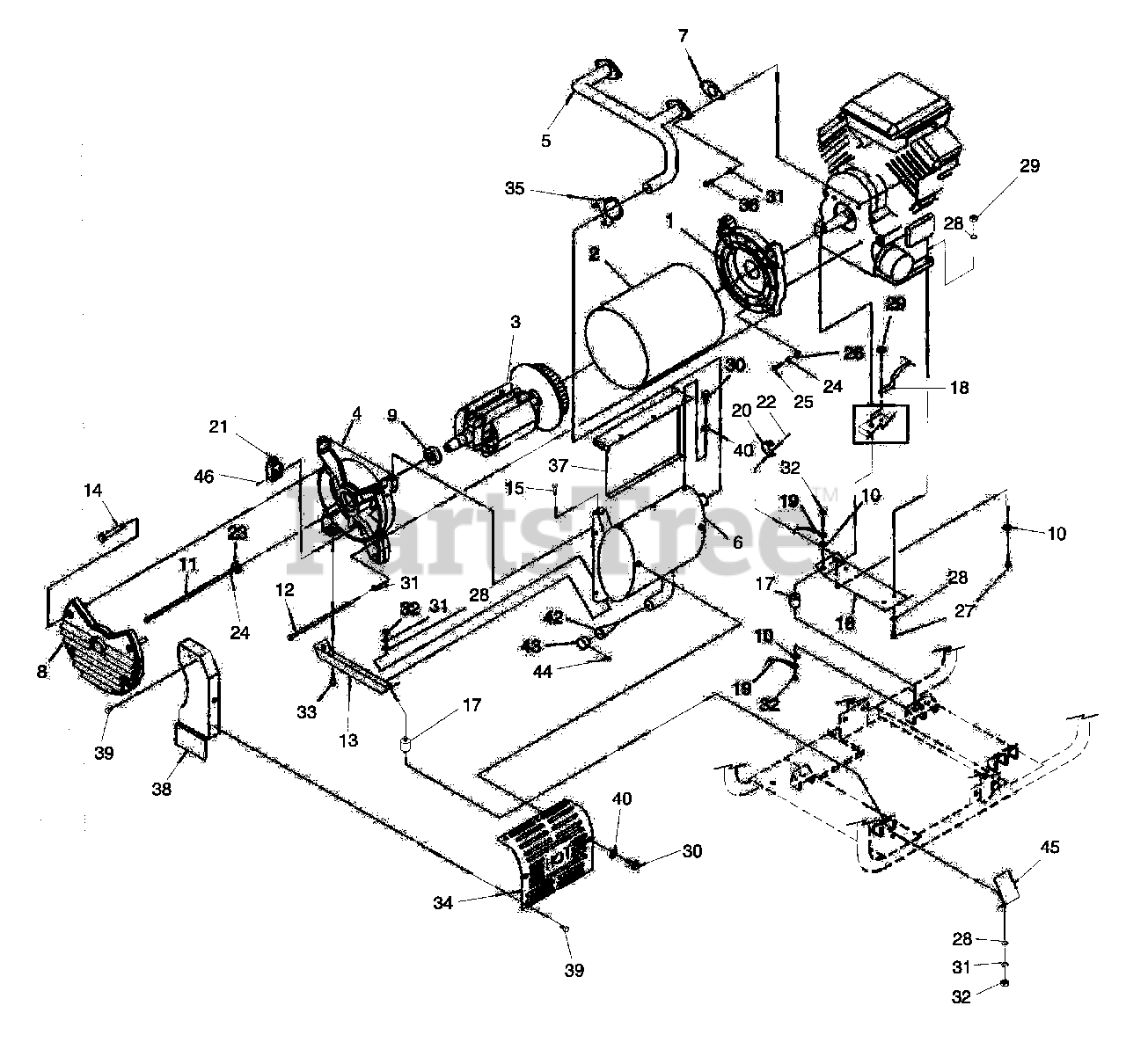

0049860 - Generac Centurian Portable Generator (SN: 3791301 - 4635532) (2006) Commercial-Industrial-Residential Portable Generator System Generator (0D4488-D) Parts Diagram

Centurian Portable Generator

Commercial-Industrial-Residential Portable Generator System Generator (0D4488-D) Parts Diagram

  • Title

1

Generac 0C6934

ADAPTOR, ENGINE

$116.99

$

Usually ships in 2-12 days

0

2

Generac 0D2123

STATOR 12.5KW

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$627.99

$

Usually ships in 2-12 days

0

Generac 0D2134

STATOR 15KW
(Superseded to 0G11770SRV)

Note: ORDER 0D21340SRV RTR/STR REPLACEMENT KIT

$1511.99

$

Usually ships in 2-12 days

0

Generac 0D2136

STATOR 18KW
(Superseded to 0D2136C)

Note: IF YOU NEED JUST THE STATOR ORDER P/N 0D2136C. IF REPLACING ROTOR AND ST ATOR ORDER OD21360SRV. MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$1155.99

$

In Stock, only 1 left!

0

3

Generac 0D21320SRV

ASSEMBLY, ROTOR WITH FAN 12.5KW

$

$

Not available

Generac 0D21330SRV

ASSEMBLY, ROTOR WITH FAN 15KW

$

$

Not available

Generac 0D2135

ROTOR 18KW

Note: IF REPLACING JUST THE ROTOR ORDER 0D21350SRV. IF REPLACING BOTH THE ROTOR AND STATOR ORDER 0D21360SRV RTR/STR KIT.

$

$

Not available

4

Generac 0C6043B

CARRIER, REAR BEARING

$106.99

$

Usually ships in 2-12 days

0

5

Generac 0D2492

EXHAUST MANIFOLD

$107.99

$

Usually ships in 2-12 days

0

6

Generac 0D2726

MUFFLER

$258.99

$

Usually ships in 2-12 days

0

7

Generac 0C4138

GASKET, EXHAUST

$1.99

$

In Stock, only 1 left!

0

8

Generac 0D3547

COVER, ALTERNATOR AIR IN

$27.99

$

Usually ships in 2-12 days

0

9

Generac 031971

BEARING
(Superseded to G031971)

$35.99

$

Usually ships in 2-12 days

0

10

Generac 0C3168

5/16 SPECIAL LOCK WASHER

$0.99

$

Usually ships in 2-12 days

0

11

Generac 0D1838

SCREW IHHC 3/8-24 X 15.50 G5

$17.99

$

Usually ships in 2-12 days

0

12

Generac 0D3549

SCREW IHHC M8-1.25 X 400 G8.8

$14.99

$

Usually ships in 2-12 days

0

13

Generac 0C7038E

BRACKET, ALT MOUNTING

$26.99

$

Usually ships in 2-12 days

0

14

Generac 032712

SCREW HHTT #10-32 X 1.75

$

$

Not available

15

Generac 0D4662

SCREW HHTT M8-1.2 X 20

$2.99

$

Usually ships in 2-12 days

0

16

Generac 0C7038D

ENGINE MOUNTING PLATE

$67.99

$

Usually ships in 2-12 days

0

17

Generac 0C7758

RUBBER MOUNT

Note: PART NUMBER 0G7225 CLIP NEEDED FOR MOUNTING VIB MOUNT TO BASE.

$10.99

$

Usually ships in 2-12 days

0

18

Generac 0388050AF0

BATTERY CABLE, BLACK

$14.99

$

Usually ships in 2-12 days

0

19

Generac 0C2417A

EARTH STRAP 3/8X 3/8

$14.99

$

Usually ships in 2-12 days

0

20

Generac 082121C

CLIP-J VINYL COAT .625 ID

$1.99

$

Usually ships in 2-12 days

0

21

Generac 066386

ASSEMBLY, BRUSH HOLDER
(Superseded to 0663860SRV)

Note: ORDER P/N 0663860SRV.

$28.99

$

In Stock, only 2 left!

0

22

Generac 0C2824

SCREW TAP-R #10-32 X 9/16

Note: ON MODEL 4700 USE 066849

$0.99

$

Usually ships in 2-12 days

0

23

Generac 0A2038

WASHER FLAT 3/8 ZINC

$

$

Not available

24

Generac 022237

WASHER LOCK 3/8

$

$

Not available

25

Generac 022511

SCREW HHC 3/8-16 X 1-1/4 G5

$

$

Not available

26

Generac 022131

WASHER FLAT 3/8-M10 ZINC
(Superseded to G022131)

$0.99

$

Usually ships in 2-12 days

0

27

Generac 051731

SCREW HHC M8-1.25 X 50 G8.8

$

$

Not available

28

Generac 022145

WASHER FLAT 5/16 ZINC
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

29

Generac 049820

NUT LOCK HEX M8-1.25 NYLON INSERT
(Superseded to G049820)

$0.99

$

In Stock, Qty 7

0

30

Generac 079246

SCREW HHC M6-1.0 X 16 WITH LOCK WASHER
(Superseded to G079246)

$16.99

$

In Stock, Qty 10

0

31

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

32

Generac 022259

NUT HEX 5/16-18 STEEL
(Superseded to G022259)

$1.49

$

Usually ships in 2-12 days

0

33

Generac 059637

SCREW TAPTITE 3/8-16 X 3/4 BP
(Superseded to G059637)

$2.49

$

In Stock, only 3 left!

0

34

Generac 0D5100

SHIELD, MUFFLER HEAT

$107.99

$

Usually ships in 2-12 days

0

35

Generac 0D5823

U-BOLT & SADDLE
(Superseded to 0D5823A)

$12.99

$

Usually ships in 2-12 days

0

36

Generac 0C8565

SCREW SHC M8-1.25 X 18

$1.49

$

Usually ships in 2-12 days

0

37

Generac 0D5833

PANEL, MUFFLER BOX BACK

$100.99

$

Usually ships in 2-12 days

0

38

Generac 0D5834

PANEL, MUFFLER BOX END

$63.99

$

Usually ships in 2-12 days

0

39

Generac 090388

SCREW HHTT M6-1.0 X 12
(Superseded to G090388)

$1.49

$

In Stock, only 4 left!

0

40

Generac 022473

WASHER FLAT 1/4
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

42

Generac 0D5133

SPARK ARRESTOR SCREEN

$17.99

$

Usually ships in 2-12 days

0

43

Generac 0D5133A

RETAINER, SPARK ARREST SCREEN

$6.99

$

Usually ships in 2-12 days

0

44

Generac 045764

SCREW HHTT M4-0.7 X 8
(Superseded to G045764)

$0.99

$

In Stock, only 1 left!

0

45

Generac 0D6214

SHIELD, RUBBER MOUNT

$17.99

$

Usually ships in 2-12 days

0

46

Generac 066849

SCREW HHTT M5-0.8 X 16
(Superseded to G066849)

$0.99

$

In Stock, Qty 10

0
