00498100 - Gravely EZT Hydro-Gear Transmission Transmission, LH - 00498100 Parts Diagram

EZT Hydro-Gear Transmission

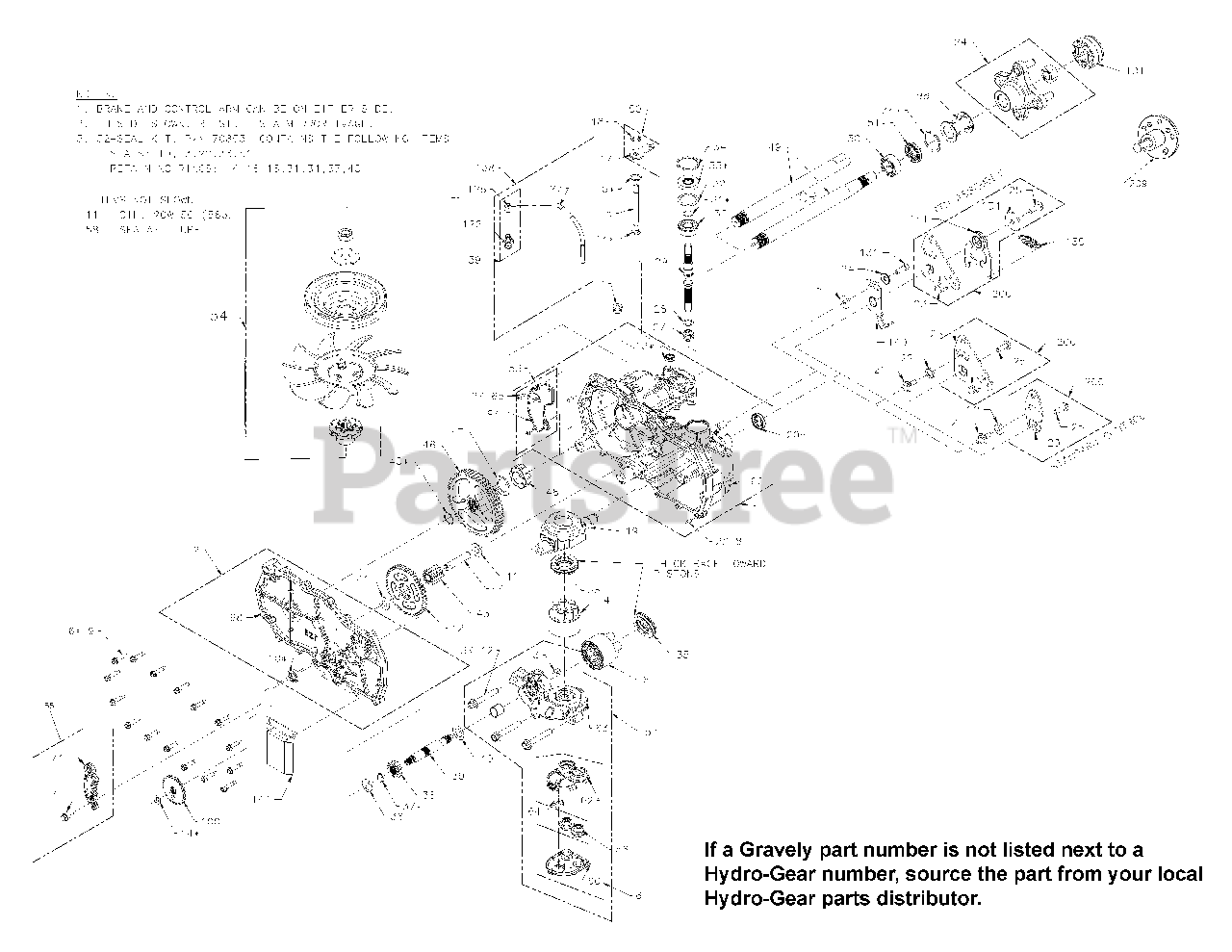

Transmission, LH - 00498100 Parts Diagram

  • Title

1

Gravely 21543985

KIT, MAIN HOUSING W/CNTL, LH

Note: INCLUDES ITEMS 8, 65, 66, 37 Hydro-Gear p/n 70862L

$271.99

$

Usually ships in 4-12 days

0

2

Gravely 21548913

COVER, SIDE, LH W/BRAKE
(Superseded to 21543986)

Note: INCLUDES ITEM 68 Hydro-Gear p/n 70863L

$129.99

$

Usually ships in 4-12 days

0

(2)

BUSHING, .711 X .789 X .778

BUSHING, .711 X .789 X .778

$

$

Not available

(3)

PLATE, BYPASS

PLATE, BYPASS

$

$

Not available

4

Gravely 21543921

ASSEMBLY, PISTON BLOCK - 7P IOCC

Note: Hydro-Gear p/n 70723

$142.99

$

Usually ships in 4-12 days

0

5

Gravely 21543870

SPACER, .320 X 1.005 X .179

Note: Hydro-Gear p/n 54315

$

$

Not available

6

Gravely 21543889

ASSEMBLY, PISTON BLOCK - 5P IOCC

Note: Hydro-Gear p/n 70331

$101.99

$

Usually ships in 4-12 days

0

7

PLUG, 9/1 6- 18

PLUG, 9/1 6- 18

Note: (METAL) Hydro-Gear p/n 9005110-5600

$

$

Not available

9

Gravely 27105900

HFHCS 1/4-20 X I.I25

Note: (SELF TAPPING) Hydro-Gear p/n 53246

$2.49

$

In Stock, only 3 left!

0

10

SEAL, LIP .625 X 1.000 X .250

SEAL, LIP .625 X 1.000 X .250

$

$

Not available

10

SEAL, LIP .50 X .88 X .25

SEAL, LIP .50 X .88 X .25

$

$

Not available

11

OIL, 20W-50

OIL, 20W-50

Note: 56oz. NOT SHOWN

$

$

Not available

(12)

BOLT, HEX FLAGE3/8- 24 X 2.5

BOLT, HEX FLAGE3/8- 24 X 2.5

$

$

Not available

13

SEAL, LIP .375 X .75 X .25

SEAL, LIP .375 X .75 X .25

$

$

Not available

14

RING, RETAINING .375 EXT

RING, RETAINING .375 EXT

$

$

Not available

15

Gravely 21543844

ROD, BYPASS

Note: Hydro-Gear p/n 51625

$

$

Not available

16

RING, RETAINING .750 INT

RING, RETAINING .750 INT

$

$

Not available

18

RING, RETAINING .375 EXT

RING, RETAINING .375 EXT

Note: (PUSHNUT)

$

$

Not available

19

Gravely 21543783

SWASHPLATE, TRUNNION, MACHINED

Note: Hydro-Gear p/n 51048

$70.99

$

Usually ships in 4-12 days

0

20

SEAL, LIP 18 X 32 X 7

SEAL, LIP 18 X 32 X 7

$

$

Not available

24

Gravely 08611200

WASHER, .34 X .88 X .06

Note: Hydro-Gear p/n 44130

$3.99

$

Usually ships in 4-12 days

0

(26)

ASSEMBLY, FITTING 9/16

ASSEMBLY, FITTING 9/16

$

$

Not available

27

Gravely 08621500

SPRING, HELICAL COMPRESSION

Note: Hydro-Gear p/n 2003014

$1.99

$

In Stock, Qty 6

0

(27)

HOSE, EXP TANK

HOSE, EXP TANK

$

$

Not available

28

Gravely 08609400

WASHER, .591 X .787 X .040

Note: Hydro-Gear p/n 2003017

$1.99

$

In Stock, only 1 left!

0

(28)

CAP, BARBED VENT

CAP, BARBED VENT

$

$

Not available

29

Gravely 21543785

SHAFT, INPUT

Note: Hydro-Gear p/n 51062

$96.99

$

Usually ships in 4-12 days

0

30

Gravely 21543738

BEARING, BALL 17MM ID X 40MM OD X 12

Note: Hydro-Gear p/n 50315

$19.99

$

Usually ships in 4-12 days

0

31

RING, RETAINING WIRE .561 ID

RING, RETAINING WIRE .561 ID

$

$

Not available

32

Gravely 21543773

SPACER

Note: Hydro-Gear p/n 50951

$5.99

$

In Stock, only 2 left!

0

33

Gravely N/A

SEAL, LIP 1 7 X 40 X 7

$

$

Currently unavailable

34

Gravely N/A

RING, RETAINING

$

$

Currently unavailable

35

Gravely 08609100

BEARING, THRUST 30 X 52 X 13

Note: Hydro-Gear p/n 50551

$17.99

$

Usually ships in 4-12 days

0

36

Gravely 21543708

WASHER, 5/8 X I.0 X .05

Note: Hydro-Gear p/n 44371

$

$

Not available

37

Gravely 21543704

RING, RETAINING

Note: Hydro-Gear p/n 44145

$

$

Not available

38

Gravely 21543807

GEAR, PINION 13T

Note: Hydro-Gear p/n 51130

$5.49

$

Usually ships in 4-12 days

0

(38)

KIT, BREATHER ASSEMBLY

KIT, BREATHER ASSEMBLY

Note: Hydro-Gear p/n 71510

$

$

Not available

39

Gravely 21543849

SHAFT, MOTOR

Note: Hydro-Gear p/n 51632

$53.99

$

Usually ships in 4-12 days

0

(39)

KIT, BREATHER ASSEMBLY

KIT, BREATHER ASSEMBLY

Note: Hydro-Gear p/n 71524

$

$

Not available

40

Gravely 21543788

WASHER, .7I X I.I6 X .04

Note: Hydro-Gear p/n 51069

$

$

Not available

41

Gravely 21543724

WASHER, HT .5 ID X I.0 OD X .032

Note: Hydro-Gear p/n 50132

$

$

Not available

42

Gravely 21543806

GEAR, 10T/48T

Note: Hydro-Gear p/n 51129

$44.99

$

In Stock, only 1 left!

0

43

Gravely 21543781

GEAR, 10T JACKSHAFT

Note: Hydro-Gear p/n 51043

$

$

Not available

44

Gravely 21543793

PIN, JACKSHAFT

Note: Hydro-Gear p/n 51083

$

$

Not available

45

RING, SPIRAL RETAINING

RING, SPIRAL RETAINING

$

$

Not available

46

GEAR, 52T BULL

GEAR, 52T BULL

Note: Hydro-Gear p/n 52541

$

$

Not available

47

WASHER, I.018 X I.57 X .I05

WASHER, I.018 X I.57 X .I05

Note: Hydro-Gear p/n 52532

$

$

Not available

48

SLEEVE BEARING

SLEEVE BEARING

Note: (INBOARD) Hydro-Gear p/n 52542

$

$

Not available

49

SHAFT, AXLE

SHAFT, AXLE

Note: Hydro-Gear p/n 53705

$

$

Not available

50

BEARING, SLEEVE, I.00 X I.57 X .62

BEARING, SLEEVE, I.00 X I.57 X .62

Note: Hydro-Gear p/n 51517

$

$

Not available

51

SEAL, LIP 1.00 X 1.57 X .25

SEAL, LIP 1.00 X 1.57 X .25

$

$

Not available

51

SEAL, LIP .375 X .75 X .25

SEAL, LIP .375 X .75 X .25

$

$

Not available

52

Gravely 21543935

KIT, SEAL

Note: Hydro-Gear p/n 70853

$80.99

$

In Stock, only 1 left!

0

53

Gravely 21543987

PLATE EXPANSION, LH

Note: INCLUDES ITEMS 65, 67 Hydro-Gear p/n 70868L

$14.99

$

Usually ships in 4-12 days

0

54

Gravely 21543736

KIT, FAN-PULLEY

Note: INCLUDES ITEMS 119, 120, 121, 122, 123 Hydro-Gear p/n 72134

$80.99

$

Usually ships in 4-12 days

0

55

Gravely 00951000

KIT, BRAKE ARM, THROUGH HOLE
(Superseded to 51517600)

Note: Hydro-Gear p/n 70865

$28.99

$

In Stock, only 3 left!

0

(56)

CHECK PLUG ASSEMBLY , .027, WASHER

CHECK PLUG ASSEMBLY , .027, WASHER

$

$

Not available

57

KIT, CENTER SECTION, W/FILTER - LH

KIT, CENTER SECTION, W/FILTER - LH

Note: Hydro-Gear p/n 71529

$

$

Not available

58

Gravely 21543771

SEALANT TUBE

Note: Hydro-Gear p/n 50928

$116.99

$

In Stock, only 1 left!

0

59

Gravely 21543937

KIT, BYPASS ARM W/ THRU HOLE

Note: Hydro-Gear p/n 70891

$11.99

$

Usually ships in 4-12 days

0

(60)

ASSEMBLY, COVER

ASSEMBLY, COVER

$

$

Not available

61

Gravely 21543958

KIT, FILTER

Note: Hydro-Gear p/n 71497

$19.99

$

Usually ships in 4-12 days

0

(62)

FILTER, BASE

FILTER, BASE

$

$

Not available

(63)

CENTER SECTION, LH, 7P

CENTER SECTION, LH, 7P

$

$

Not available

(64)

MAGNET

MAGNET

$

$

Not available

(71)

BOLT, 1/4-20 X 1 SHOULDER W/PATCH

BOLT, 1/4-20 X 1 SHOULDER W/PATCH

$

$

Not available

(74)

ARM, BRAKE

ARM, BRAKE

$

$

Not available

98

TUBE, AXLE

TUBE, AXLE

Note: Hydro-Gear p/n 53730

$

$

Not available

100

Gravely 21543851

DISC, COG BRAKE

Note: Hydro-Gear p/n 51635

$21.99

$

In Stock, only 1 left!

0

101

CAP, AXLE

CAP, AXLE

Note: Hydro-Gear p/n 53501

$

$

Not available

124

KIT, HUB 1/2-20

KIT, HUB 1/2-20

Note: Hydro-Gear p/n 71446

$

$

Not available

(126)

ASSEMBLY, FITTING 9/I6

ASSEMBLY, FITTING 9/I6

$

$

Not available

(127)

HOSE, EXP TANK

HOSE, EXP TANK

$

$

Not available

(128)

CAP, BARBED VENT

CAP, BARBED VENT

$

$

Not available

131

KIT, RTN SCREWS

KIT, RTN SCREWS

Note: Hydro-Gear p/n 71341

$

$

Not available

135

Gravely 21543876

SPRING, EXTENSION CLEAR ZINC

Note: Hydro-Gear p/n 52401

$4.99

$

In Stock, only 2 left!

0

138

KIT, BREATHER ASSEMBLY

KIT, BREATHER ASSEMBLY

Note: Hydro-Gear p/n 71510

$

$

Not available

139

KIT, BREATHER ASSEMBLY

KIT, BREATHER ASSEMBLY

Note: Hydro-Gear p/n 71524

$

$

Not available

140

Gravely 21543867

ARM, NEUTRAL LEFT

Note: Hydro-Gear p/n 51945

$12.99

$

Usually ships in 4-12 days

0

200

KIT, RTN, BIDIRECTIONAL

KIT, RTN, BIDIRECTIONAL

Note: Hydro-Gear p/n 71592

$

$

Not available

209

Gravely 21544009

HUB PULLER
(Superseded to 21544008)

Note: (UNIVERSAL) Hydro-Gear p/n 72320

$452.99

$

Usually ships in 4-12 days

0
