0049451 - Generac Power Transfer Switch (SN: 111111 - 737267976) (2016) 100A Transfer Switch Assembly (0F0466$-D) Parts Diagram

Power Transfer Switch

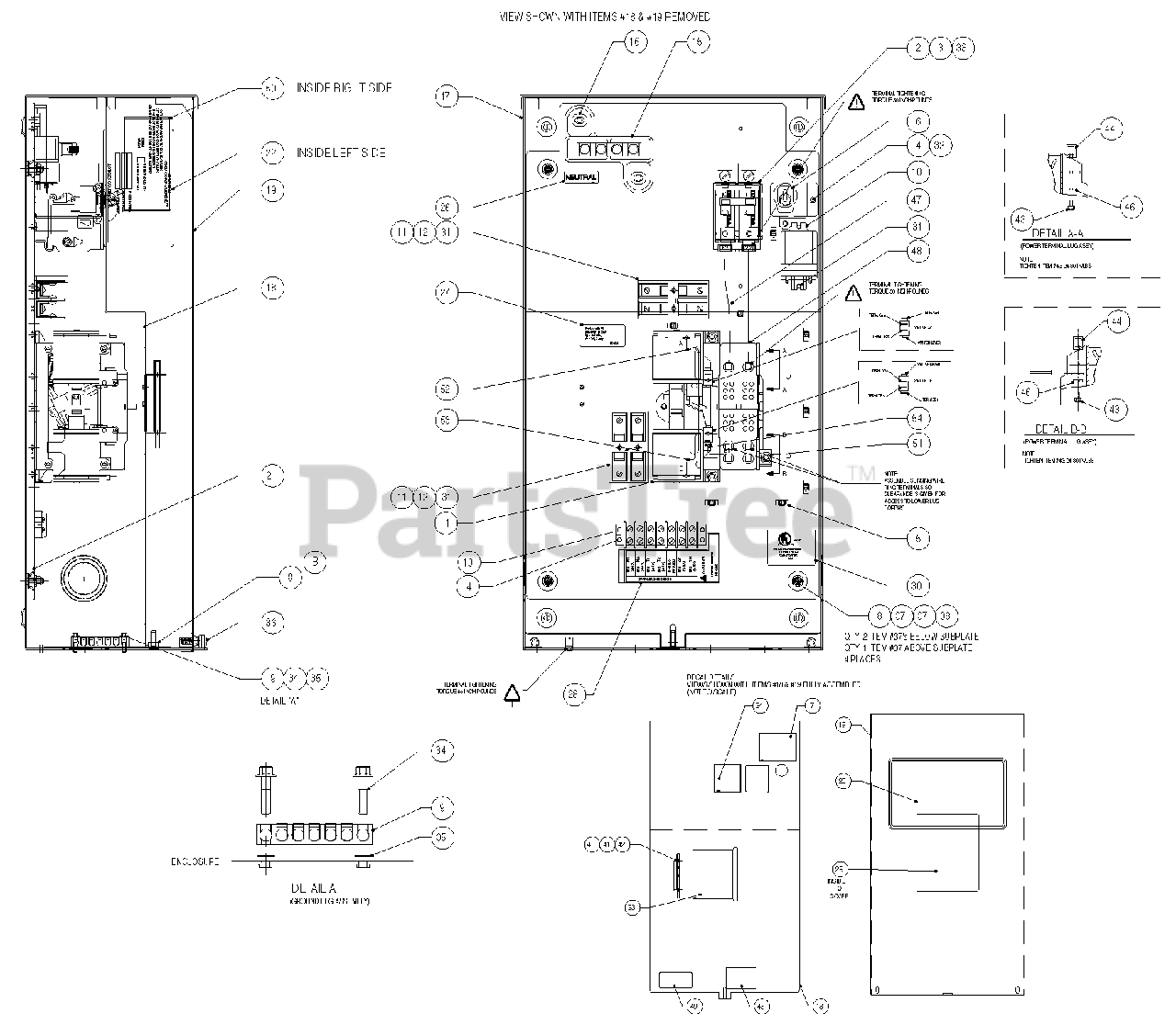

100A Transfer Switch Assembly (0F0466$-D) Parts Diagram

  • Title

1

Generac 0C2237

TRANSFER SW-HSB 100A 2P 250V

Note: ORDER 0L2910

$

$

Not available

2

Generac 0E7886H

CB 0100A 2P 240V S BQ2 LB

$116.99

$

Usually ships in 2-12 days

0

3

Generac 0E7890

BRKT CB MTG BACK

$11.99

$

Usually ships in 2-12 days

0

4

Generac 0E9906

BRACKET, DISCONNECT SWITCH 100A

$25.99

$

Usually ships in 2-12 days

0

5

Generac 063378

HOLDER, CABLE TIE

$

$

Not available

6

Generac 0D3728

SWITCH TOG SPST 15A @ 125V

Note: OBSOLETE

$8.99

$

Usually ships in 2-12 days

0

7

Generac 0E9999

DECAL SERVICE DISCONNECT SWITCH

$2.49

$

Usually ships in 2-12 days

0

8

Generac 049813

NUT HEX M6 X 1.0 G8 YEL CHR
(Superseded to G049813)

$3.49

$

In Stock, only 4 left!

0

9

Generac 0E6523

GROUND BAR (5)4-14 AWG CONN

$20.99

$

Usually ships in 2-12 days

0

10

Generac 063617

RELAY PNL 12VDC DPDT 10A@240VA
(Superseded to G063617)

Note: SUPPLIED WITH WIRE HARNESS ITEM #39

$38.99

$

Usually ships in 2-12 days

0

11

Generac 0D2806

FUSEBLOCK 30A 600V 2POS W/SQ

Note: SUPPLIED WITH WIRE HARNESS ITEM #39

$40.99

$

Usually ships in 2-12 days

0

12

Generac 073590A

FUSE 5A X BUSS

$8.99

$

In Stock, only 1 left!

0

13

Generac 047822

BLOCK TERM 20A 7 X 6 X 1100V

Note: SUPPLIED WITH WIRE HARNESS ITEM #39

$

$

Not available

14

Generac 0A1661

RIVET POP .156 X .675 AL

$0.99

$

Usually ships in 2-12 days

0

15

Generac 0C4449

ASS'Y-NTRL BL 150-200A

$

$

Not available

16

Generac 090388

SCREW HHTT M6-1.0 X 12 ZINC
(Superseded to G090388)

$1.49

$

In Stock, only 4 left!

0

17

Generac 0E1473

WELDMENT TRANSFER SWITCH BOX

Note: ONLY AVAILABLE IN STEEL

$989.99

$

Usually ships in 2-12 days

0

18

Generac 0E9907

COVER INSIDE XFER SWITCH BOX

$107.99

$

Usually ships in 2-12 days

0

19

Generac 0E1477

COVER TRANSFER SWITCH BOX

Note: ONLY AVAILABLE IN STEEL

$301.99

$

Usually ships in 2-12 days

0

20

Generac 0F0668

DECALTRANSFER SWITCH

$12.99

$

Usually ships in 2-12 days

0

21

Generac 0E3070

SUBPLT XFER SW HSB

$

$

Not available

22

0E9734

DECAL SWITCH RATING

$

$

Not available

23

Generac 0E3484

DECAL WARN MANUAL OPER HANDLE

$24.99

$

Usually ships in 2-12 days

0

24

Generac 0E3485

DECAL SERVICE DISCONNECT

$23.99

$

Usually ships in 2-12 days

0

25

Generac 067210A

DECAL GROUND LUG (NOT SHOWN)

$0.99

$

Usually ships in 2-12 days

0

26

Generac 0A9457

DECAL NEUTRAL

$0.99

$

Usually ships in 2-12 days

0

27

Generac 0D3587

DECAL FUSE REPLACEMENT

$0.99

$

Usually ships in 2-12 days

0

28

Generac 0A2595

DECAL TERMINAL STRIP

$

$

Not available

29

Generac 0F0776

DECAL TEST SEQ. 2P TS HS 3R

$

$

Not available

30

Generac 081221

DECAL-UL LIST HSB

$

$

Not available

31

Generac 045764

SCREW HHTT M4-0.7 X 8 BP
(Superseded to G045764)

$0.99

$

In Stock, only 1 left!

0

32

Generac 074908

SCREW HHTT M5-0.8 X 10 BP
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

33

Generac 066849B

SCREW HHTT M5-0.8 X 8 BP

Note: USE 0E5153 ON THE FOLLOWING MODELS 4858-0, 4629-2, 4806-0 4858-0, 4861-0, 4862-0

$0.99

$

Usually ships in 2-12 days

0

34

Generac 0C3992

SCREW HHTT M4-0.7 X 16 BP

$1.49

$

Usually ships in 2-12 days

0

35

Generac 026579

WASHER SHAKEPROOF EXT #8 STEEL

$

$

Not available

36

Generac 0E7213

SCREW THUMB 1/4-20 X 1/2 W/SHLD

$

$

Not available

37

Generac 022473

WASHER FLAT 1/4-M6 ZINC
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

38

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

39

Generac 0E9987

WIRE HARNESS HSB (NOT SHOWN)

$766.99

$

Usually ships in 2-12 days

0

40

Generac 0E6193

BRACKET ARM EXTENDER

$2.49

$

Usually ships in 2-12 days

0

41

Generac 064526

SCREW HWHS #6-25 X 3/8 ZNC
(Superseded to G064526)

$0.99

$

Usually ships in 2-12 days

0

42

Generac 0E6155

ARM EXTENDER PIN

Note: SUPPLIED WITH TRANSFER SWITCH (ITEM #1)

$16.99

$

In Stock, only 1 left!

0

43

Generac 036933

SCREW PPHM #10-32 X 3/8
(Superseded to G036933)

$0.99

$

Usually ships in 2-12 days

0

44

Generac 077033

LUG SLDLSS 1/0-#14X9/16 AL/CU

$

$

Not available

45

Generac 0C8308

DECAL TERMINAL SHOCK HAZARD

$2.49

$

Usually ships in 2-12 days

0

46

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

47

0912970085

WIRE ASSY 2AWG 100A 2-P T/S N1A

$

$

Not available

48

0912970086

WIRE ASSY 2AWG 100A 2-P T/S N2A

$

$

Not available

49

Generac 095282

DECAL LIVE-CIRCUIT

$

$

Not available

50

Generac 0F2710

DECAL XFER SWITCH DATA SE 100A

$1.99

$

Usually ships in 2-12 days

0

51

Generac 066849

SCREW HHTT M5-0.8 X 16
(Superseded to G066849)

$0.99

$

In Stock, Qty 10

0

52

Generac 0E6303

WIRE - A

$2.99

$

Usually ships in 2-12 days

0

53

Generac 0E6303A

WIRE - B

$55.99

$

Usually ships in 2-12 days

0

54

Generac 0E6303C

WIRE - E1

$3.49

$

Usually ships in 2-12 days

0
