0046353 - Generac Power Transfer Switch (SN: 225489 - 377776978) (2016) ATS "HS" Type Transfer Switch (0E8403$-F) Parts Diagram

Power Transfer Switch

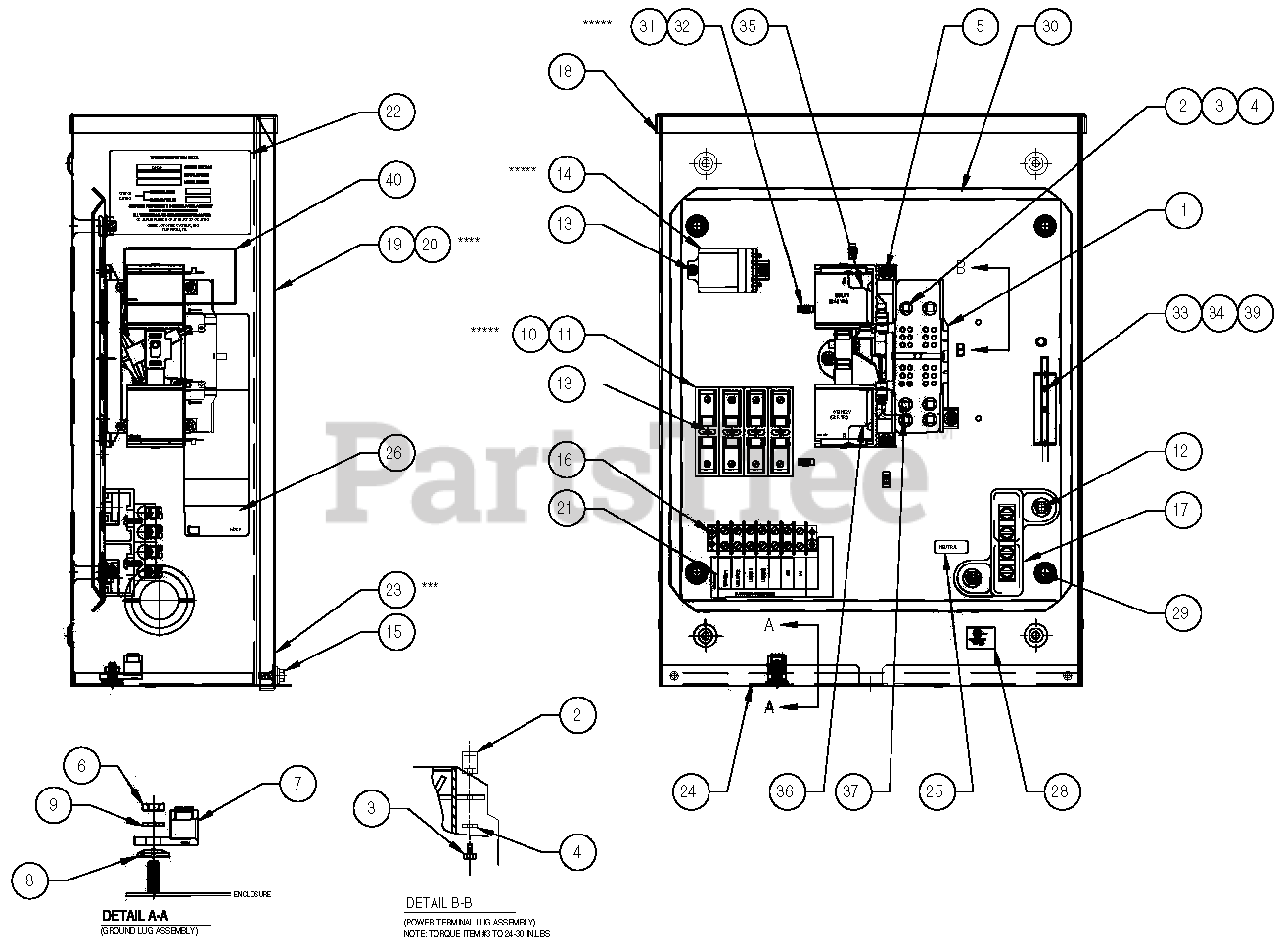

ATS "HS" Type Transfer Switch (0E8403$-F) Parts Diagram

  • Title

1

Generac 0C2237

TR SW-HSB 100A 2P 250V

Note: ORDER 0L2910

$

$

Not available

2

Generac 077033

LUG SLDLSS 1/0-#14X9/16 AL/CU

$

$

Not available

3

Generac 036932

SCREW PPHM #10-32 X 1/4

$

$

Not available

4

Generac 022152

WASHER LOCK #10
(Superseded to G022152)

$3.49

$

In Stock, only 1 left!

0

5

Generac 074908

SCREW HHTT M5-0.8 X 10 BP
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

6

Generac 045771

NUT HEX M8-1.25 G8 YEL CHR
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

7

Generac 062684

LUG SLDLSS 2/0-#12 X 11/32 CU

$

$

Not available

8

Generac 0C3168

WASHER LOCK SPECIAL 5/16

$0.99

$

Usually ships in 2-12 days

0

9

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

10

Generac 073590A

FUSE 5A X BUSS

$8.99

$

In Stock, only 1 left!

0

11

Generac 073591

FUSE HOLDER

$

$

Not available

12

Generac 090388

SCREW HHTT M6-1.0 X 12 ZINC
(Superseded to G090388)

$1.49

$

In Stock, only 4 left!

0

13

Generac 0A1495

SCREW HHTT M4-0.7 X 10 BP

$0.99

$

Usually ships in 2-12 days

0

14

Generac 063617

RELAY PNL 12VDC DPDT 10A@240VA
(Superseded to G063617)

$38.99

$

Usually ships in 2-12 days

0

15

Generac 0C2454

SCREW TH-FRM M6-1 X 16 N WA Z/JS

$3.49

$

Usually ships in 2-12 days

0

16

Generac 0A1661

RIVET POP .156 X .675 AL

$0.99

$

Usually ships in 2-12 days

0

17

Generac 0C4449

ASSY NEUTRAL BLOCK 100A

$

$

Not available

18

Generac 0E6057

WELDMENT XFER SW BOX HSB

Note: NOT AVAILABLE IN ALUMINUM

$766.99

$

Usually ships in 2-12 days

0

19

Generac 0E6056

COVER TRANSFER SWITCH BOX HSB

Note: NOT AVAILABLE IN ALUMINUM

$295.99

$

Usually ships in 2-12 days

0

20

Generac 0F0668

DECAL TRANSFER SWITCH

Note: NOT SHOWN ON THIS ASSEMBLY, CENTER DECAL ON FRONT OF COVER, 7" FROM TOP OF ENCLOSURE.

$12.99

$

Usually ships in 2-12 days

0

21

Generac 0A2595

DECAL TERMINAL STRIP

$

$

Not available

22

Generac 0E8443

DECAL SWITCH RATING

$

$

Currently unavailable

23

Generac 095282

DECAL-LIVE CIRCUIT

Note: PLACE DECAL ON OUTSIDE OF COVER, LOWER RIGHT CORNER.

$

$

Not available

24

Generac 067210A

DECAL GROUND LUG

$0.99

$

Usually ships in 2-12 days

0

25

Generac 0A9457

DECAL NEUTRAL

$0.99

$

Usually ships in 2-12 days

0

26

Generac 0A9517

DECAL MANUAL 5A FUSE

$2.49

$

Usually ships in 2-12 days

0

27

Generac 077036D

DECAL TEST SEQUENCE 3R

Note: CENTER DECAL ON INSIDE OF THE COVER (ITEM #19)

$

$

Not available

28

Generac 081221

DECAL-UL LIST HSB

$

$

Not available

29

Generac 064101

NUT HEX FL WHIZ 3/8-16
(Superseded to G064101)

$1.99

$

In Stock, Qty 6

0

30

Generac 0E6055

SUBPLT TRANSFER SWITCH HSB

$191.99

$

Usually ships in 2-12 days

0

31

Generac 063378

HOLDER CABLE TIE

Note: SUPPLIED WITH HARNESS (P/N 0E6094).

$

$

Not available

32

Generac 028739

TIE WRAP UL 3.9" X .10" NATL

Note: SUPPLIED WITH HARNESS (P/N 0E6094).

$

$

Not available

33

Generac 0E6193

BRACKET, ARM EXTENDER

$2.49

$

Usually ships in 2-12 days

0

34

Generac 0E6155

ARM EXTENDER PIN

Note: SUPPLIED WITH TRANSFER SWITCH ITEM #1.

$16.99

$

In Stock, only 1 left!

0

35

Generac 0E6303

WIRE A

$2.99

$

Usually ships in 2-12 days

0

36

Generac 0E6303A

WIRE B

$55.99

$

Usually ships in 2-12 days

0

37

Generac 0E6303C

WIRE E1

$3.49

$

Usually ships in 2-12 days

0

38

Generac 0E6094

WIRE HARNESS 100/200A 2P HS (NOT SHOWN)

$474.99

$

Usually ships in 2-12 days

0

39

Generac 064526

SCREW HWHS #6-25 X 3/8 ZNC
(Superseded to G064526)

$0.99

$

Usually ships in 2-12 days

0

40

Generac 0F2088

DECAL TRANSFER SWITCH DATA 100

$

$

Not available
