0045830 - Generac Guardian Portable Generator (SN: 4392004 - 4885047) (2007) Frame, Handle & Wheel Kit (0E0695-B) Parts Diagram

Guardian Portable Generator

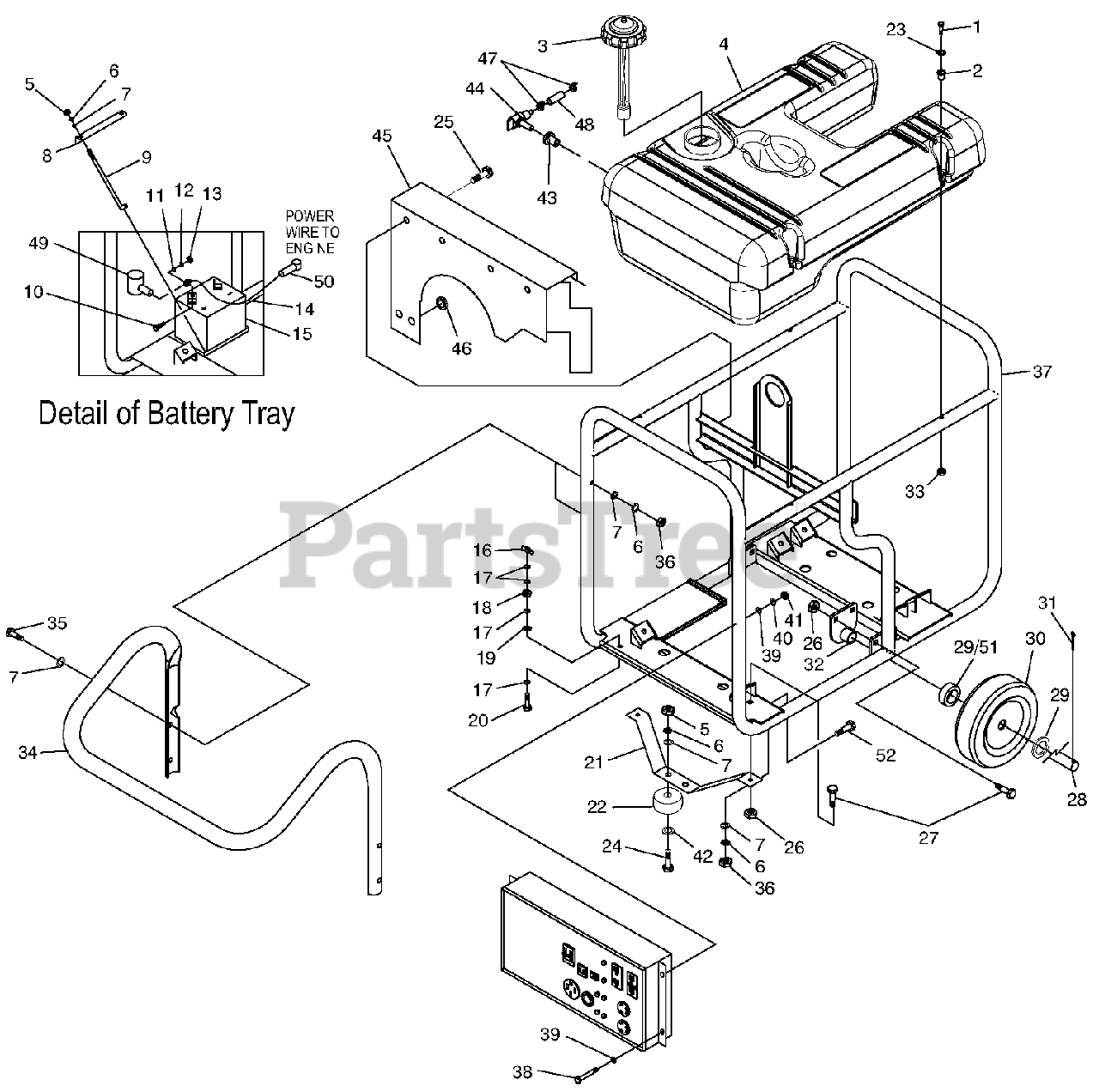

Frame, Handle & Wheel Kit (0E0695-B) Parts Diagram

  • Title

1

Generac 057058

SCREW HHC M6-1.0 X 55

$

$

Not available

2

Generac 0D5315

RUBBER TANK MOUNT

$2.49

$

Usually ships in 2-12 days

0

3

Generac 0D4570

CAP, FUEL WITH GAUGE & VENT

$81.99

$

Usually ships in 2-12 days

0

4

Generac 0D22850SRV

KIT, FUEL TANK
(Superseded to 0J3063BSRV)

$584.99

$

Usually ships in 2-12 days

0

5

Generac 045771

NUT HEX M8-1.25
(Superseded to G045771)

$1.99

$

In Stock, Qty 5

0

6

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

7

Generac 022145

WASHER FLAT 5/16
(Superseded to G022145)

$2.49

$

In Stock, Qty 10

0

8

Generac 0D4565

BRACKET BATTERY

$28.99

$

Usually ships in 2-12 days

0

9

Generac 0D3545

BOLT,BATTERY J-BOLT

$9.99

$

Usually ships in 2-12 days

0

10

Generac 022287

SCREW HHC 1/4-20 X 3/4 G5

$

$

Not available

11

Generac 022473

WASHER FLAT 1/4
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

12

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

13

Generac 022127

NUT HEX 1/4-20
(Superseded to G022127)

$4.99

$

In Stock, Qty 10

0

14

Generac 0388040AK0

BATTERY CABLE, RED

$24.99

$

Usually ships in 2-12 days

0

15

Generac 0D4575

BATTERY U1

Note: PURCHASE LOCALLY COLD CRANKING AMPS @ 0 F 300 CRANKING AMPS @ 32 F 365

$

$

Not available

16

Generac 0D5202

NUT WING 5/16-18 BRASS

$5.49

$

Usually ships in 2-12 days

0

17

Generac 0D5199

WASHER FLAT 5/16 BRASS

$3.49

$

Usually ships in 2-12 days

0

18

Generac 029809

NUT HEX 5/16-18 BRASS

$

$

Not available

19

Generac 0C3168

5/16 SPECIAL L/WASH

$0.99

$

Usually ships in 2-12 days

0

20

Generac 0D5198

SCREW HHC 5/16-18 X 1.5 BRASS

$7.99

$

Usually ships in 2-12 days

0

21

Generac 0E0317

BRACKET FRONT FOOT (15 kW)

$103.99

$

Usually ships in 2-12 days

0

22

Generac 027007

VIB MOUNT
(Superseded to G027007)

$5.49

$

Usually ships in 2-12 days

0

23

Generac 0D5303

WASHER FLAT .25ID X 1"OD

Note: ORDER 071693 IT IS THE SAME AS 0D5303

$0.99

$

In Stock, only 1 left!

0

24

Generac 042909

SCREW HHC M8-1.25 X 30
(Superseded to G042909)

$0.99

$

In Stock, only 4 left!

0

25

Generac 090388

SCREW HHTT M6-1.0 X 12
(Superseded to G090388)

$1.49

$

In Stock, only 4 left!

0

26

Generac 064101

NUT LOCK FL 3/8-16
(Superseded to G064101)

$1.99

$

In Stock, Qty 6

0

27

Generac 039214

BOLT CARR 3/8-16 X 1
(Superseded to G039214)

$0.99

$

In Stock, Qty 6

0

28

Generac 0D9165

AXLE, 3/4"DIA X 30" (15 kW)

$46.99

$

Usually ships in 2-12 days

0

29

Generac 045900

WASHER FLAT 3/4" (15 kW)
(Superseded to G045900)

$0.99

$

In Stock, only 2 left!

0

30

Generac 0D7668

12.3" PNEUM WHEEL 3/4" AXLE (15 kW)
(Superseded to 0K4506)

$67.99

$

Usually ships in 2-12 days

0

31

Generac 0D4999

PIN COTTER 1/8 X 1-1/4

$0.99

$

In Stock, Qty 8

0

32

Generac 0D4044

BRACKET, WHEEL SPACER

$20.99

$

Usually ships in 2-12 days

0

33

Generac 0D3700

NUT FLANGE M6-1.0 NYLOK

$7.49

$

Usually ships in 2-12 days

0

34

Generac 0D2497

HANDLE

$111.99

$

Usually ships in 2-12 days

0

35

Generac 022532

SCREW HHC 5/16-18 X 2-1/2 G5
(Superseded to G022532)

$1.99

$

In Stock, only 2 left!

0

36

Generac 027028

NUT LOCK HEX 5/16-18 NYLON INSERT
(Superseded to G027028)

$0.99

$

In Stock, only 4 left!

0

37

Generac 0D2271

FRAME

Note: MUST SHIP VIA LTL TRUCK CANNOT SHIP UPS.

$674.99

$

Usually ships in 2-12 days

0

38

Generac 052762

SCREW HHC M5-0.8 X 45 G8.8

$

$

Not available

39

Generac 051713

WASHER FLAT M5
(Superseded to G051713)

$0.99

$

In Stock, only 2 left!

0

40

Generac 049226

WASHER LOCK M5
(Superseded to G049226)

$0.99

$

In Stock, Qty 10

0

41

Generac 051716

NUT HEX M5-0.8
(Superseded to G051716)

$0.99

$

In Stock, only 1 left!

0

42

Generac 050190

WASHER FLAT 1"
(Superseded to G050190)

$0.99

$

In Stock, Qty 6

0

43

Generac 078299

BUSHING TANK DEXTOR
(Superseded to G078299)

$2.99

$

In Stock, only 3 left!

0

44

Generac 080270

VALVE, PLASTIC TANK
(Superseded to G080270)

$18.99

$

Usually ships in 2-12 days

0

45

Generac 0D5142

AIR DEFLECTOR

$187.99

$

Usually ships in 2-12 days

0

46

Generac 096021

GROMMET .75 X .06 X .50

$

$

Not available

47

Generac 048031C

CLAMP HOSE BAND 1/4

$0.99

$

In Stock, Qty 5

0

48

Generac 0F9176

HOSE 1/4 ID

Note: SOLD BY THE FOOT

$10.99

$

In Stock, Qty 11

0

49

Generac 075763

BOOT BATTERY CABLE

Note: BLACK NEGATIVE BOOT

$

$

Not available

50

Generac 075763A

BOOT STARTER CABLE

Note: RED POSITIVE BOOT

$4.99

$

Usually ships in 2-12 days

0

51

Generac 0E0318

SPACER, AXLE (15 kW)

$3.99

$

Usually ships in 2-12 days

0

52

Generac 030795

SCREW HHC 5/16"-18 X 1"

$

$

Not available
