0045823 - Generac Portable Generator (SN: 5144316 - 5206581) (2008) Commercial-Industrial-Residential Portable Generator System GT-990 Engine (Page 2) (0G2963-P) Parts Diagram

Portable Generator

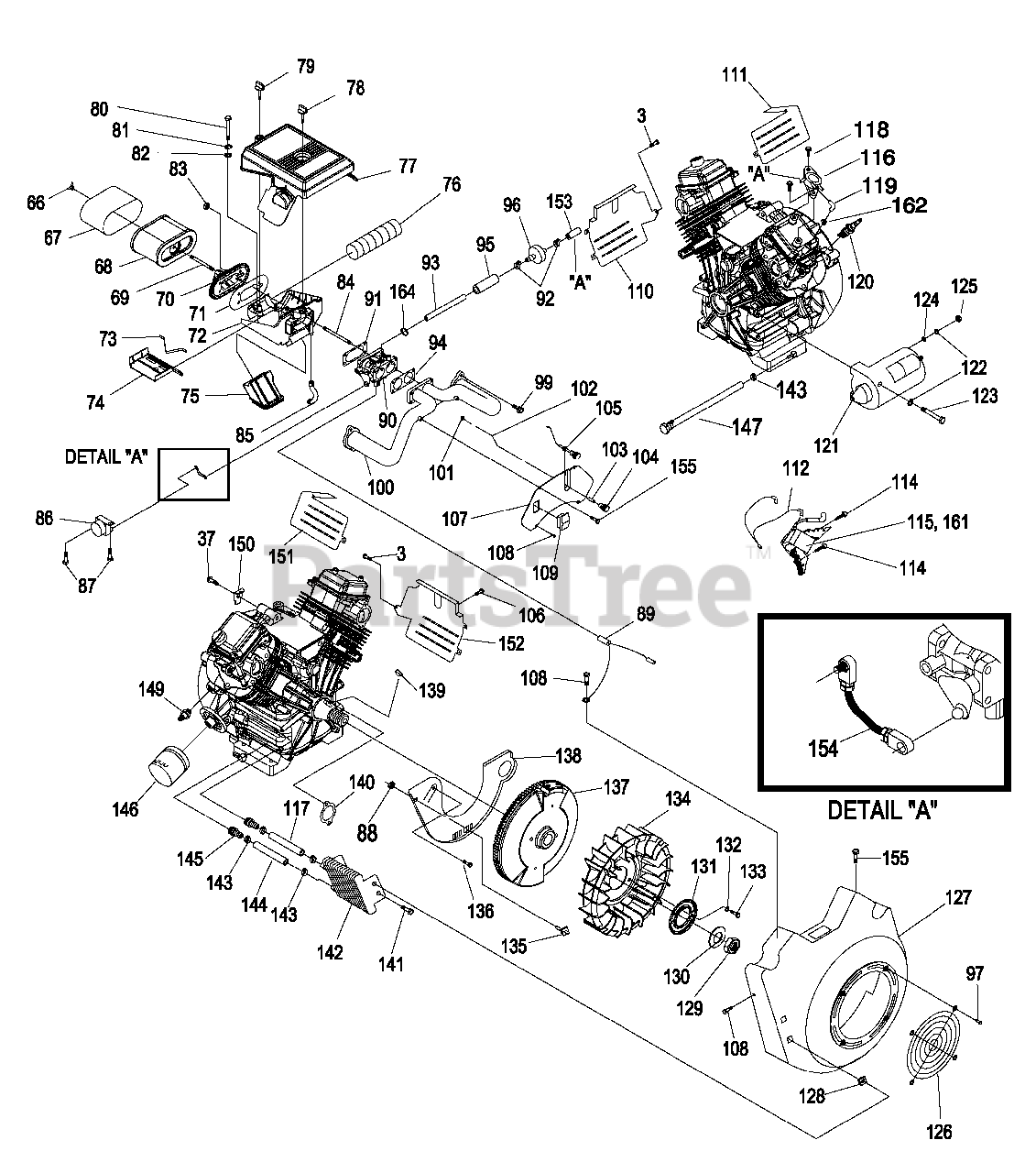

Commercial-Industrial-Residential Portable Generator System GT-990 Engine (Page 2) (0G2963-P) Parts Diagram

  • Title

66

Generac 0D6592

WINGNUT, AIRBOX

$2.49

$

In Stock, only 2 left!

0

67

Generac 0D4511

PRECLEANER, AIR

$6.99

$

In Stock, only 1 left!

0

68

Generac 0D9723

ELEMENT, AIR CLEANER
(Superseded to 0D9723S)

Note: ORDER P/N 0D9723S

$48.99

$

In Stock, only 1 left!

0

69

Generac 0E5302

STUD M6-1.0 X 73

$23.99

$

Usually ships in 2-12 days

0

70

Generac 0D4183

ADAPTOR, SPIT BACK

$11.99

$

Usually ships in 2-12 days

0

71

Generac 0D6327

GASKET, SPITBACK

$1.99

$

In Stock, Qty 5

0

72

Generac 0D2774B

BASE, AIRBOX

$25.99

$

Usually ships in 2-12 days

0

73

Generac 0D5125

SPRING, WINTER/SUMMER VALVE

$2.49

$

In Stock, only 3 left!

0

74

Generac 0D2930

VALVE, SUMMER / WINTER

$5.49

$

In Stock, only 1 left!

0

75

Generac 0D4612A

SNORKEL, AIR INTAKE

Note: PART IS OBSOLETE WHEN ON HAND INVENTORY IS EXHAUST ED

$51.99

$

Usually ships in 2-12 days

0

76

Generac 0D6143

TUBE, HEAT RISER 50.8 I.D.

$64.99

$

Usually ships in 2-12 days

0

77

Generac 0D2775

COVER, AIRBOX

$26.99

$

In Stock, only 1 left!

0

78

Generac 0D5014A

KNOB, AIRBOX 17mm

$3.49

$

In Stock, only 1 left!

0

79

Generac 0D5014B

KNOB, AIRBOX 95MM

$3.99

$

Usually ships in 2-12 days

0

80

Generac 049721

SCREW HHC M6-1.0 X 35
(Superseded to G049721)

$9.49

$

In Stock, Qty 5

0

81

Generac 022097

WASHER LOCK M6-1/4
(Superseded to G022097)

$2.99

$

In Stock, only 1 left!

0

82

Generac 022473

WASHER FLAT 1/4
(Superseded to G022473)

$2.99

$

In Stock, only 2 left!

0

83

Generac 0E8388

NUT, HEX FLANGE WHIZ M6-1.0

$6.49

$

In Stock, only 1 left!

0

84

Generac 0D6021

STUD, METRIC

$

$

Not available

85

Generac 0C9093A

HOSE, BREATHER

$6.99

$

Usually ships in 2-12 days

0

86

Generac 0G6454

ASSY,CONTROLLER, GTH990 PORTABLE

$202.99

$

Usually ships in 2-12 days

0

87

Generac 074908

SCREW HHTT M5-0.8 X 10
(Superseded to G074908)

$1.49

$

In Stock, only 3 left!

0

88

Generac 082025

NUT, HEX LOCK M5-0.8 ZINC
(Superseded to G082025)

$0.99

$

In Stock, Qty 5

0

89

Generac 0E3398

ASSEMBLY, WIRE

$8.99

$

Usually ships in 2-12 days

0

90

Generac 0G4612

CARBURETOR, H990 W/BALL STUD
(Superseded to 0K1588)

Note: ORDER 0K1588

$272.99

$

In Stock, only 1 left!

0

91

Generac 0D4026

GASKET, CARB TO SPACER (GT-990)

$3.49

$

In Stock, only 1 left!

0

92

Generac 048031C

CLAMP HOSE BAND 1/4

$0.99

$

In Stock, Qty 5

0

93

Generac 0F9176C

HOSE 1/4 ID SAE 30R7 GREENBAR 9" PRECUT

$6.49

$

In Stock, only 2 left!

0

94

Generac 0G0510

GASKET, MANIFOLD TO CARBURETOR

$3.99

$

In Stock, only 2 left!

0

95

Generac 084409D

SLEEVING, FLEXO HW 3/4 3"

$3.49

$

In Stock, only 3 left!

0

96

Generac 0D6313

FILTER, FUEL

$5.49

$

In Stock, only 2 left!

0

97

Generac 045756

SCREW, HHTT M6-1 x 10 LONG
(Superseded to G045756)

$0.99

$

In Stock, Qty 20+

0

98

Generac 082025

NUT, HEX LOCK M5-0.8 ZINC
(Superseded to G082025)

$0.99

$

In Stock, Qty 5

0

99

Generac 0G3730B

SCREW, SHC M8-1.25 x 25 LG SEMS

$1.49

$

In Stock, Qty 5

0

100

Generac 0C9911

MANIFOLD, INTAKE
(Superseded to 0J8893)

Note: USE 0J8893

$183.99

$

Usually ships in 2-12 days

0

101

Generac 051714

NUT HEX M3-0.5
(Superseded to G051714)

$0.99

$

In Stock, Qty 8

0

102

Generac 0D5411

ROD, SUMMER / WINTER VALVE

$3.49

$

Usually ships in 2-12 days

0

103

Generac 0D5445

BUSHING, MINI CONTROL PANEL

$0.99

$

In Stock, Qty 7

0

104

Generac 0D5416A

KNOB, CONTROL SUMMER / WINTER

$5.49

$

Usually ships in 2-12 days

0

105

Generac 0D5398

CHOKE ASSEMBLY

$16.99

$

Usually ships in 2-12 days

0

106

Generac 0E6043

SCREW TAPTITE M5-0.8 X 8 ZP

$0.99

$

In Stock, only 2 left!

0

107

Generac 0D3432

PANEL, CONTROL FACE PLATE

$21.99

$

Usually ships in 2-12 days

0

108

Generac 090388

SCREW TAPTITE M6-1.0X 12 CLEAR ZINC
(Superseded to G090388)

$1.49

$

In Stock, only 4 left!

0

109

Generac 0D4767

SWITCH ROCKER

$68.99

$

Usually ships in 2-12 days

0

110

Generac 0D1142A

WRAPPER, LOWER CYLINDER 2

$21.99

$

In Stock, only 1 left!

0

111

Generac 0D1143

WRAPPER, UPPER CYLINDER 2

$11.99

$

In Stock, only 1 left!

0

112

Generac 0F1177

ASSEMBLY, GROUND WIRE
(Superseded to 0E7209)

$70.99

$

In Stock, only 3 left!

0

113

$

$

Not available

114

Generac 0G3110

SCREW TAPTITE M6-1.0 X 20 ZINC

$0.99

$

Usually ships in 2-12 days

0

115

Generac 0G3224B

ASSY, IGN COIL W/DIODE NO ADV
(Superseded to 0K63030SRV)

Note: ORDER 0G3224BSRV

$116.99

$

In Stock, only 1 left!

0

116

Generac 0F6263

PUMP, IMPULSE

$46.99

$

In Stock, only 2 left!

0

117

Generac 0F0452D

HOSE 3/8" 300PSI 6.5" LG OIL

$5.49

$

Usually ships in 2-12 days

0

118

Generac 0G0926

SCREW, HHFCS M6-1.0 X 16 G8.8

$0.99

$

In Stock, Qty 6

0

119

Generac 0G0832

ELBOW, RUBBER 90 DEG. GASOLINE

$3.99

$

Usually ships in 2-12 days

0

120

Generac 0E7585A

SPARKPLUG, CHAMPION RC14YC

$5.99

$

Usually ships in 2-12 days

0

121

Generac 0E9323

STARTER MOTOR GEAR REDUCED

Note: FOR SOLENOID ORDER 0G3351

$276.99

$

Usually ships in 2-12 days

0

122

Generac 022129

WASHER LOCK M8-5/16
(Superseded to G022129)

$2.49

$

In Stock, Qty 5

0

123

Generac 061906

SCREW HHC M8-1.25 X 85 G8.8
(Superseded to G061906)

$1.49

$

Usually ships in 2-12 days

0

124

Generac 022145

WASHER, FLAT M8
(Superseded to G022145)

$0.99

$

In Stock, Qty 10

0

125

Generac 0F5467

NUT, HEX M8-1.25 YELLOW ZINC

$0.99

$

Usually ships in 2-12 days

0

126

Generac 0D1131

GUARD,FAN

$7.99

$

In Stock, only 1 left!

0

127

Generac 0F1169B

HOUSING, BLOWER GAS COOLER

$113.99

$

Usually ships in 2-12 days

0

128

Generac 0C9763

NUT, GROMMET 1/4 PLUG

Note: VERIFY THAT CUSTOMER IS NOT LOOKING FOR SCREW 0D6147

$1.99

$

In Stock, Qty 6

0

129

Generac 0C3034

NUT,HEX M24

$5.99

$

Usually ships in 2-12 days

0

130

Generac 0C3033

WASHER, M24

$2.49

$

In Stock, only 1 left!

0

131

Generac 0C3032

PLATE, FAN

$7.99

$

Usually ships in 2-12 days

0

132

Generac 0A5992

WASHER SHAKEPROOF INT M8 SS

$0.99

$

Usually ships in 2-12 days

0

133

Generac 051754

SCREW HHC M8-1.25 X 12 G8.8

$

$

Not available

134

Generac 0C3031

FAN, NYLON

$38.99

$

In Stock, only 1 left!

0

135

Generac 0E4997

ASSY,GROUND WIRE CONNECTOR
(Superseded to 0E49970ESV)

Note: MAKE SURE CUSTOMER IS NOT LOOKING FOR THE 0C3016A BACKING PLATE IF YOU REALLY NEED THE GROUND WIRE CONNECTOR ORDER P/N 0E49970ESV

$28.99

$

In Stock, Qty 5

0

136

Generac 045756

SCREW TAPTITE M6-1X10 YELLOW CHROME
(Superseded to G045756)

$0.99

$

In Stock, Qty 20+

0

137

Generac 0C3725A

FLYWHEEL ASSEMBLY
(Superseded to 0C3725ASRV)

Note: ORDER P/N 0C3725ASRV..

$443.99

$

Usually ships in 2-12 days

0

138

Generac 0G4928A

PLATE, BACKING GT990 W/OIL COOL ZINC

$25.99

$

Usually ships in 2-12 days

0

139

Generac 082774

KEY, WOODRFF 4 X 19D
(Superseded to G082774)

$9.49

$

In Stock, only 2 left!

0

140

Generac 0C3043

GASKET, MANIFOLD / PORT

$1.99

$

In Stock, Qty 5

0

141

Generac 0C9764

PLASTITE,1/4-15 X 3/4

$0.99

$

In Stock, Qty 6

0

142

Generac 0C3026

COOLER, OIL
(Superseded to 0E9506)

Note: USE 0E9506 COOLER, OIL GV-990

$

$

Not available

143

Generac 0G3662B

CLAMP, HOSE OETIKER STEPLESS 18.5mm

$4.49

$

In Stock, Qty 13

0

144

Generac 0F0452C

HOSE 3/8" 300PSI 6.5" LG OIL

$4.49

$

Usually ships in 2-12 days

0

145

Generac 035461

BARBED STR 1/4NPT X 3/8

$

$

Not available

146

Generac 070185F

OIL FILTER, 90mm w/LOGO
(Superseded to 070185ES)

Note: ORDER 070185E USE 070185E OIL FILTER

$17.99

$

In Stock, only 3 left!

0

147

Generac 0D3083

ASSEMBLY, OIL DRAIN HOSE
(Superseded to 0G44030SRV)

Note: NO LONGER AVAILABLE ORDER 0G44030SRV FOR REPLACEMENT DRAIN CAP ONLY USE PART NUMBER 0G4426

$23.99

$

In Stock, only 2 left!

0

149

Generac 0C3025

SWITCH, OIL PRESS

Note: THE TWO WIRE SCREWS IF NEEDED ARE PART NUMBER 036916

$

$

Not available

150

Generac 0G2363

BRACKET, AIRBOX SUPPORT

$3.49

$

Usually ships in 2-12 days

0

151

Generac 0C3018

WRAPPER, UPPER CYLINDER 1

$12.99

$

In Stock, only 1 left!

0

152

Generac 0C3019

WRAPPER, LOWER CYLINDER 1

$20.99

$

Usually ships in 2-12 days

0

153

Generac 0F9176H

HOSE, 1/4" SAE 30R7 GREENBAR

$2.49

$

In Stock, only 1 left!

0

154

Generac 0E0409

ASSY, ROD, GOV. STEPPER MOTOR

Note: THIS GOVERNOR ROD DOES NOT COME WITH BALL STUDS. IF NEEDED ORDER PART NUMBER 0D6342

$13.99

$

In Stock, only 2 left!

0

155

Generac 0C8563

SCREW HHHC M6-1.0 X12

$9.49

$

In Stock, Qty 6

0

157

Generac 0D9784

NUT, LOCK HEX M3-0.5 (GT-990)

$9.49

$

In Stock, Qty 7

0

160

Generac 0D6147

SCREW HHFC M6-1.0 X 10mm

$0.99

$

In Stock, only 1 left!

0

161

Generac 0G3224A

ASSY, IGN COIL W/DIODE NO ADV
(Superseded to 0K63030SRV)

Note: ORDER 0G3224ASRV

$116.99

$

In Stock, only 1 left!

0

162

Generac 048031G

CLAMP, HOSE BAND GREEN

$0.99

$

In Stock, Qty 5

0

163

Generac 0D6342

BALL STUD, 10mm

$2.99

$

In Stock, Qty 11

0

164

Generac 040173

CLAMP, HOSE WORM GEAR

Note: FOR GUARIDAN RV AND HSB USE 0G3662

$

$

Not available
